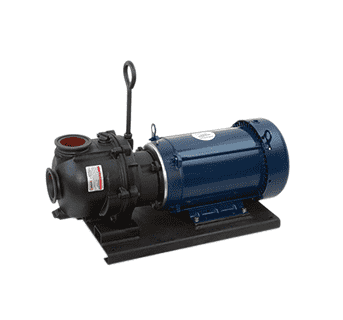

M332PIE10W Banjo 3" M332 Series Manifold Cast Iron Wet Seal Pump with 10 HP Three Phase Electric Motor

M332PIE10W by Banjo | Centrifugal Pumps | 3" Manifold Cast Iron Wet Seal Pump with 10 HP Three Phase Electric Motor (M332 Series)

Save $1,801.97 Save $1,801.97
$4,504.92
$4,504.92 - $4,504.92
$4,504.92
$2,702.95
$2,702.95 - $2,702.95
$2,702.95

Banjo Self-Priming Centrifugal Pumps - 3" M332 Series Cast Iron Manifold Wet Seal Pumps with Gas Engines or Electric Motors & Replacement Parts
Specifications for Variant SKU: M332PIE10W Banjo

SPECIFICATIONS

Application: Fluids, Agriculture, Industrial
Product Manual: N/A Video: N/A
Features:
  • Run Dry Capability
  • Seal reservoir double seals
  • Durable cast iron construction
  • Dynamically balanced impeller
  • Carbon ceramic seal with stainless steel cup and spring with FKM (viton type) rubber
  • Pump end separated from engine
  • Large weep holes between pump end and engine
  • "V" Shaped for quicker priming
Notes:
  • DO NOT USE WITH FLAMMABLE LIQUIDS.
  • NOTE: Engine warranty service available at authorized Briggs & Stratton® and Honda® dealers.
Part Number Description Horsepower
3" M332 Series Cast Iron Pumps with Electric Motors
M332PIH13W 3" Manifold Cast Iron Wet Seal Pump with 13 HP Honda® Engine with Electric Start & Pull Rope 13 HP ---
3" M332 Series Cast Iron Pumps with Gas Engines
M332PIE10W 3" Manifold Cast Iron Wet Seal Pump with 10 HP Three Phase Electric Motor 10 HP (Made to Order)
M332PIE101W 3" Manifold Cast Iron Wet Seal Pump with 10 HP Single Phase Electric Motor 10 HP (Made to Order)
3" M332 Series Cast Iron Bearing Pedestal
M332POIW 3" Manifold Cast Iron Wet Seal Pump Only N/A (Made to Order)
Replacement Parts for M332 Wet Seal Cast Iron Pumps
Item Part Number Description Quantity Required
1 13719 O-Ring 1
2 15035E EPDM Mechanical Seal Assembly 1
3 12034 5/16" - 24 x 3-3/4" HHCS 4
4 12901 5/16" Flat Washer 8
5 12717 O-Ring for Bracket Screw 4
6 12709 O-Ring 4
7 13055 Adapter Shaft 1
8 19702 Volute 1
9 19772 5 Vane Impeller 1
10 12705 Check Valve 1
11 12774VA Impeller Bolt Gasket 1
12 12719A Body O-Ring 1
13 12902A Impeller Key 1
14 16901 1/4" sq x 3/4" Key Stock 1
15 13766 3/8" - 24 x 2-1/4" HFS 1
18 17029 5/16" - 18 x 1-3/4" HHCS 4
19 V10118 5/16" Lock Washer 13
20 V10119 5/16" Hex Nut 4
21 CV10175 Gasket 2
22 12777 1/2" Plug 2
23 UV15163 O-Ring 2
24 19703W Rear Bracket 1
25 19201W Wet Seal Reservoir 1
26 12715A 5/16"- 24 x 1-3/4" HHCS 9
27 18034 5/8"-11 Jam Nut 1
28 18033 Pump Handle 1
29 M19712X Pump Body 1
30 13777 3/4" Plug 2
31 13778 O-Ring 2
