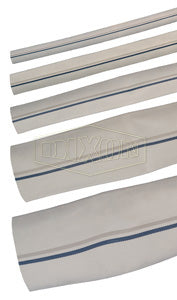

M40-50UC Dixon Synthetic Single Jacket Mill Hose - Uncoupled - 4" Hose Size - 4-3/8" Bowl - 50ft Length

M40-50UC Dixon Synthetic Single Jacket Mill Hose - Uncoupled - 4" Hose Size - 4-3/8" Bowl - 50ft Length

Save $135.26 Save $135.26
$338.15
$338.15 - $338.15
$338.15
$202.89
$202.89 - $202.89
$202.89

Dixon Fire Fittings
Synthetic Single Jacket Mill Hose - Uncoupled

Used in open end water discharge applications only, not intended for fire fighting service.

Package Quantity: 50 FT

Specifications for Variant SKU: M40-50UC Dixon
Series: Fire Hose
Hose Color(s): White/Off-White
Internal Diameter: 4in
Tubing Construction: PVC
Cover Construction: Polyester Textile Braid
Features:
  • Outer construction: single jacket, all polyester
  • Tube construction: black, PVC rubber
  • Rated pressure: 250 PSI at ambient temperature 70°F (21°C)
  • Working pressure: 112 PSI at ambient temperature 70°F (21°C)
Part Number Size Bowl Length Weight
(Lbs.)
M10-50UC 1" 1-1/4" 50 ft 7.2800
M10-100UC 1" 1-1/4" 100 ft 15.4000
M10-300UC 1" 1-1/4" 300 ft 46.2000
M15-25UC 1-1/2" 1-11/16" 25 ft 3.7500
M15-50UC 1-1/2" 1-11/16" 50 ft 9.4600
M15-100UC 1-1/2" 1-11/16" 100 ft 19.2600
M20-25UC 2" 2-3/8" 25 ft 6.5100
M20-50UC 2" 2-3/8" 50 ft 13.1000
M20-100UC 2" 2-3/8" 100 ft 25.9800
M25-25UC 2-1/2" 2-11/16" 25 ft 8.8000
M25-50UC 2-1/2" 2-11/16" 50 ft 17.6000
M25-100UC 2-1/2" 2-11/16" 100 ft 37.0600
M30-25UC 3" 3-3/8" 25 ft 11.1800
M30-50UC 3" 3-3/8" 50 ft 20.3800
M30-100UC 3" 3-3/8" 100 ft 41.1200
M40-25UC 4" 4-3/8" 25 ft 16.1300
M40-50UC 4" 4-3/8" 50 ft 30.5400
M40-100UC 4" 4-3/8" 100 ft 65.0000
M60-25UC 6" 6-3/8" 25 ft 24.8000
M60-50UC 6" 6-3/8" 50 ft 58.5000
