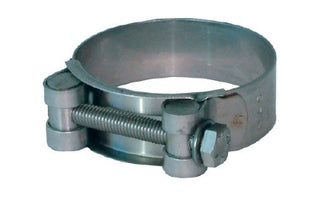

M8S-131 by Midland | Buchanan M8S Maxi Clamp Standard | 131-139mm Size | 1.02" Width | OD Range: 5.16" to 5.50" | 301 Stainless Steel Band

M8S-131 by Midland | Buchanan M8S Maxi Clamp Standard | 131-139mm Size | 1.02" Width | OD Range: 5.16" to 5.50" | 301 Stainless Steel Band

Save $2.85 Save $2.85
$25.68
$25.68 - $25.68
$25.68
$22.83
$22.83 - $22.83
$22.83

Midland Industries
Buchanan M8 Maxi Clamp Standard - 301 Stainless Steel Band

Inventory @ Manufacturers Warehouse: 88 Units
Specifications for Variant SKU: M8S-131 Midland
Material(s): 301 Stainless Steel
Features:
  • Clamp sizes for hose O.D. from 44mm to 130mm
  • 301 Stainless steel Band/Bridge/Trunnion/Sleeve
  • 8 mm A2-70 Stainless steel bolt
  • 0.8mm thick band
  • Band width from 22 mm to 24 mm depending upon clamp size
  • Import
Part Number Hose OD Size
mm		 Hose OD Decimal: Width
Min. Max.
M8S-44 44-47mm 1.73" 1.88" 0.87"
M8S-48 48-51mm 1.89" 2.04" 0.87"
M8S-52 52-55mm 2.05" 2.17" 0.87"
M8S-56 56-59mm 2.20" 2.35" 0.87"
M8S-60 60-63mm 2.36" 2.51" 0.87"
M8S-64 64-67mm 2.52" 2.67" 0.87"
M8S-68 68-73mm 2.68" 2.90" 0.94"
M8S-74 74-79mm 2.91" 3.14" 0.94"
M8S-80 80-85mm 3.15" 3.38" 0.94"
M8S-86 86-91mm 3.39" 3.61" 0.94"
M8S-92 92-97mm 3.62" 3.85" 0.94"
M8S-98 98-103mm 3.86" 4.08" 0.94"
M8S-104 104-112mm 4.09" 4.44" 0.94"
M8S-113 113-121mm 4.45" 4.79" 0.94"
M8S-122 122-130mm 4.80" 5.15" 0.94"
M8S-131 131-139mm 5.16" 5.50" 1.02"
M8S-140 140-148mm 5.51" 5.86" 1.02"
M8S-149 149-161mm 5.87" 6.37" 1.02"
M8S-162 162-174mm 6.38" 6.88" 1.02"
Midland Industries

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
