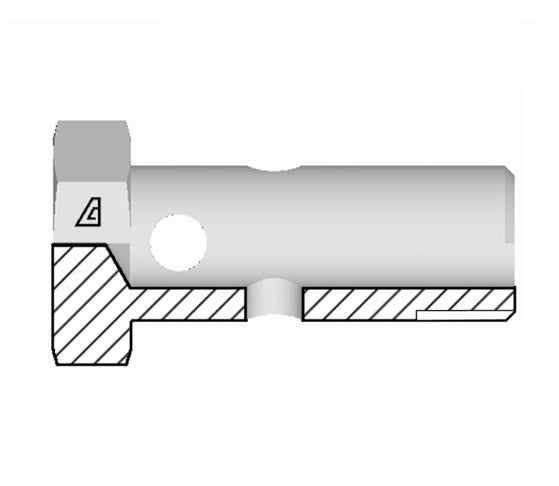

MBOLT-10 Alfagomma by Kuriyama | MBOLT Series | Two-Piece Hydraulic Hose Fitting | M10 Male Metric Bolt | Steel

MBOLT-10 Alfagomma by Kuriyama | MBOLT Series | Two-Piece Hydraulic Hose Fitting | M10 Male Metric Bolt | Steel

Save $1.27 Save $1.27
$4.44
$4.44 - $4.44
$4.44
$3.17
$3.17 - $3.17
$3.17

Kuriyama of America Inc.
Alfagomma | A Series | Two-Piece Hydraulic Hose Fitting | Hose Barb x Male Metric Bolt
Specifications for Variant SKU: MBOLT-10 Kuriyama
Brand: Alfagomma
Series: A Series
Shape (Orientation): Straight
Material(s): Steel
Compatible with the following Series: PF354 Series  |   PF354NC Series  |   PFP354 Series  |   PFP354NC Series  |   PF267 Series  |   PF267NC Series  |   PF528 Series  |   PF528NC Series  |   PF427 Series  |   PF427NC Series  |   PF354TL Series  |   PF354NCTL Series  |   PF267TL Series  |   PF267NCTL Series  |   PF528TL Series  |   PF528NCTL Series  |   PF321TC Series  |   PF344LMT Series
About A Series Fittings:
  • Two-piece insert for:
    • All wire and textile braided hoses.
    • Thermoplastic hose.
    • Flexor 4 and PTFE hose 3/16" thru 2".
    • Alfabiotech 3000 1-1/4" and 1-1/2".
    • Alfabiotech 4000 3/8" thru 1-1/4".
    • Some smaller ID spiral wire reinforced hoses.
Features:
  • Alfagomma Top Coat
    • Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards.
    • Over 500 hours corrosion prevention in salt spray fog to white rust.
    • More than 1000 hours corrosion resistance to red rust.
Steel
Part Number		 F Thread A B CH1 Weight
(in) -TPI (mm) (mm) (mm) lbs/each
MBOLT-10 10x1.5 24mm 19mm 14mm 0.03 lbs
MBOLT-12 12x1.5 29mm 24mm 17mm 0.06 lbs
MBOLT-14 14x1.5 34mm 28mm 19mm 0.08 lbs
MBOLT-16 16x1.5 41mm 34mm 22mm 0.13 lbs
MBOLT-18 18x1.5 44mm 37mm 24mm 0.15 lbs
MBOLT-22 22x1.5 48mm 41mm 27mm 0.23 lbs
MBOLT-26 26x1.5 52mm 42mm 32mm 0.38 lbs
MBOLT-30 30x1.5 62mm 51mm 38mm 0.53 lbs
Kuriyama

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
