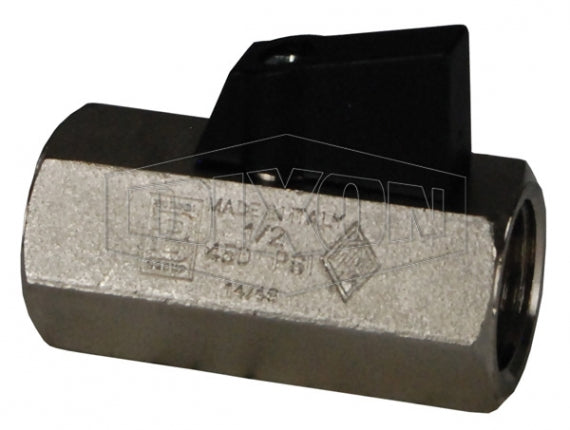

MBV12 by Dixon Valve | Mini Ball Valve | Standard Port | 1/8" Female NPT x 1/8" Female NPT | Nickel Plated Brass

MBV12 by Dixon Valve | Mini Ball Valve | Standard Port | 1/8" Female NPT x 1/8" Female NPT | Nickel Plated Brass

Save $1.13 Save $1.13
$14.25
$14.25 - $14.25
$14.25
$13.12
$13.12 - $13.12
$13.12

Dixon Valve & Coupling
Mini Ball Valve | Nickel Plated Brass
Specifications for Variant SKU: MBV12 Dixon
Shape (Orientation): Straight
Ends Configuration: 1/8in Female NPT, 1/8in Female NPT, Some Ends Match
Material(s): Nickel Plated Brass
Seal Material(s): FKM
Special Properties: Mini/Micro Size
Features:
  • Blow-out proof stem.
Materials:
  • Body: Nickel Plated Brass.
  • PTFE seats and FKM stem seal.
Specifications:
  • Maximum temperature 330°F (166°C).
  • Pressure rating: 450 PSI.
Approvals:
  • Canadian Standard Association approved.
Part Number Female NPT x Female NPT Port
MBV12 1/8" Standard
MBV25 1/4" Standard
MBV38 3/8" Standard
MBV50 1/2" Standard
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
