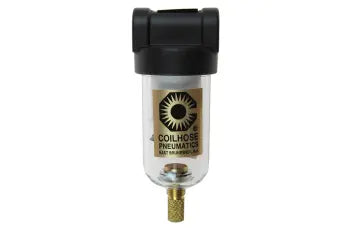

MC1 by Coilhose | 1/8" Miniature Series Coalescing Filter | 0.3 Micron Element | 150 PSI | Zinc Die Cast

MC1 by Coilhose | 1/8" Miniature Series Coalescing Filter | 0.3 Micron Element | 150 PSI | Zinc Die Cast

Save $49.37 Save $49.37
$123.42
$123.42 - $123.42
$123.42
$74.05
$74.05 - $74.05
$74.05
Coilhose Pneumatics - Miniature Series - Miniature Series Coalescing Filters
Specifications for Variant SKU: MC1 Coilhose
Material(s): Die Cast Zinc, Polycarbonate, Polypropylene
Special Properties: Mini/Micro Size
Overview:
  • The Miniature Series Filters are designed for applications where space is limited and flow requirements are low. They excel in control panels and miniature circuitry. Each unit can be disassembled by hand for easy maintenance.
Features:
  • Compact size
  • Removes 99.97% of solids and fluids down to .3 microns.
  • Tough die cast zinc body.
  • Manual drain for quick and easy fluid removal.
  • Metal bowl option
  • 1.5 oz. bowl capacity
Specifications:
  • Maximum Supply Pressure:
    • Plastic Bowl: 150 PSI
    • Metal Bowl: 250 PSI
  • Maximum Operating Temp.:
    • Plastic Bowl: 120° F
    • Metal Bowl: 250° F
  • Materials:
    • Plastic Bowl: Polycarbonate
    • Metal Bowl: Zinc Die Cast
    • Body: Zinc Die Cast
    • Filter Element: Porous Polypropylene
  • Height: 4"
  • Maximum Diameter: 1-1/2"
  • Bowl Capacity: 1.5 oz.
Warning:
  • Although polycarbonate bowls are capable of withstanding extreme physical abuse, they are susceptible to damage and may possibly burst when subjected to some cleaning products and synthetic oils, particularly phosphate esters. Should there be any questions regarding their compatibility with your applications, consult the factory or use a metal bowl.

SCFM at 1.5 PSID Pressure Drop
Supply Pressure SCFM
10 PSI 2.4 SCFM
20 PSI 3.3 SCFM
30 PSI 4.3 SCFM
40 PSI 5.2 SCFM
50 PSI 6.2 SCFM
60 PSI 7.2 SCFM
80 PSI 9.1 SCFM
100 PSI 11 SCFM
120 PSI 12.9 SCFM
140 PSI 14.8 SCFM
Note: All values are approximate.

Part Number Drain Material Max Pressure Micron Level Port Size
MC1 Manual Polycarbonate 150 PSI 0.3 Micron 1/8"
MC1-M Manual Metal 250 PSI 0.3 Micron 1/8"
MC2 Manual Polycarbonate 150 PSI 0.3 Micron 1/4"
MC2-M Manual Metal 250 PSI 0.3 Micron 1/4"
