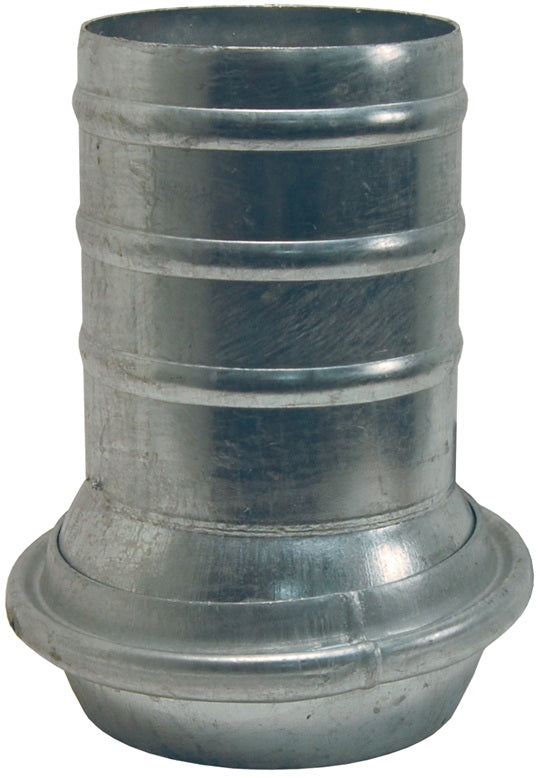

MC21110 by Dixon Valve | Type A (Agri-Lock) Quick Connect Fitting | 10" Size | Male with Hose Shank | Galvanized Steel

Name: MC21110 by Dixon Valve | Type A (Agri-Lock) Quick Connect Fitting | 10" Size | Male with Hose Shank | Galvanized Steel
Brand: Dixon
SKU: MC21110 Dixon
Price: 249.69 USD
Availability: InStock

Save $166.46

$416.15

$416.15 - $416.15

$416.15

$249.69

$249.69 - $249.69

$249.69

Dixon Valve
Type A (Agri-Lock) Quick Connect Fitting | Male with Hose Shank

Used primarily on irrigation and suction lines.

Specifications for Variant SKU: MC21110 Dixon
Shape (Orientation):	Straight
Ends Configuration:	10in Male Agri-Lock (Bauer) - Type-A, 10in Hose Barb
Material(s):	Galvanized Steel

Features:
Agri-lock style. Double pin locking lever for smooth closing action. Equipped with a safety pin to prevent accidental openings. Locks on the female side.
Construction:
Hot dipped, galvanized. Gasket included.
Safety Notes:
These fittings are not recommended for chemicals or any hazardous type materials where the possibility of leakage would result in health or environmental concerns.

Type A (Agri-Lock) \| Male with Hose Shank

Part Number	Size
MC21110	10"
MC21112	12"

Type A (Agri-Lock) \| Female with Hose Shank

Part Number	Size
FC21210	10"
FC21212*	12"

* 12" supplied with M20412 lever assist bar.

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
