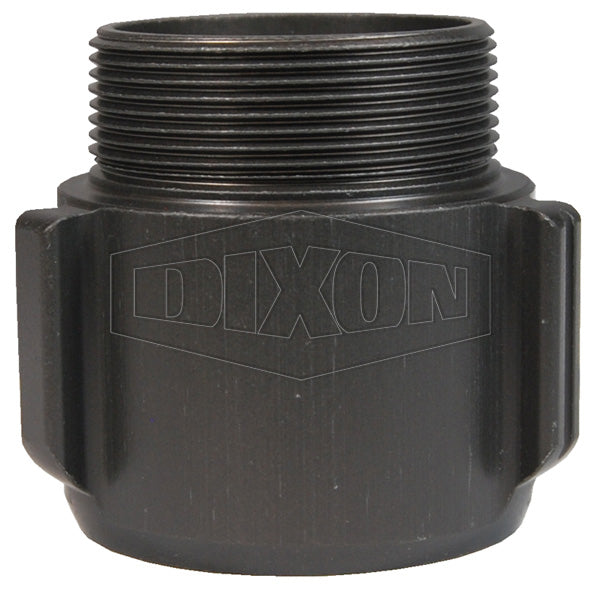

MD16181T Dixon Aluminum Expansion Ring Coupling for Double Jacket Fire Hose - Rocker Lug - Male Coupling - 1-1/2" MNPT Thread - 1-13/16" Bowl

MD16181T Dixon Aluminum Expansion Ring Coupling for Double Jacket Fire Hose - Rocker Lug - Male Coupling - 1-1/2" MNPT Thread - 1-13/16" Bowl

Save $21.14 Save $21.14
$52.85
$52.85 - $52.85
$52.85
$31.71
$31.71 - $31.71
$31.71

Dixon Fire Fittings
Fire Fitting Wrench - Expansion Ring Coupling for Double Jacket Fire Hose - Rocker Lug

For use with double jacket hose.
Specifications for Variant SKU: MD16181T Dixon
Shape (Orientation): Straight
Ends Configuration: 1-1/2in Male NPT, 1-1/2in Internal Expansion Hose End
Material(s): Aluminum
Features:
  • 3 rocker lugs on male and female.
  • Hardcoated finish.
  • All couplings come complete with expansion rings, swivel and tail washers.
  • Special tooling is required to attach these couplings to hose.
Part Number Description Size Bowl Weight
(Lbs.)
D16181 Complete Coupling 1-1/2" NPSH 1-13/16" 0.7600
D16193 Complete Coupling 1-1/2" NPSH 1-15/16" 0.7600
D16206 Complete Coupling 1-1/2" NPSH 2-1/16" 0.8600
D20231 Complete Coupling 2" NPSH 2-5/16" N/A
D263 Complete Coupling 2-1/2" NPSH 3" 1.8900
D16181F Complete Coupling 1-1/2" NST (NH) 1-13/16" 0.8600
D16193F Complete Coupling 1-1/2" NST (NH) 1-15/16" 1.0790
D16206F Complete Coupling 1-1/2" NST (NH) 2-1/16" 0.8000
D26287F Complete Coupling 2-1/2" NST (NH) 2-7/8" 2.1200
D263F Complete Coupling 2-1/2" NST (NH) 3" 2.1300
MD16181T Single Male Coupling 1-1/2" MNPT 1-13/16" N/A
MD20231T Single Male Coupling 2" MNPT 2-5/16" N/A
MD26287T Single Male Coupling 2-1/2" MNPT 2-7/8" N/A
RD15193 Complete Coupling 1-1/2" NPSH 1-15/16" 2.1100
RD15193F Complete Coupling 1-1/2" NST (NH) 1-15/16" 2.1100
