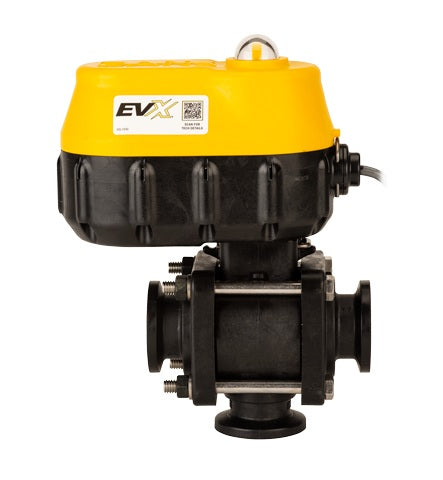

MEVX100BL by Banjo | Manifold Flange Connection | MEVX Bottom Load Electric Valve | Full Port | 1" Pipe Size | 1" Opening Thru Ball | FKM Seals | Polypropylene

MEVX100BL by Banjo | Manifold Flange Connection | MEVX Bottom Load Electric Valve | Full Port | 1" Pipe Size | 1" Opening Thru Ball | FKM Seals | Polypropylene

Save $249.82 Save $249.82
$624.55
$624.55 - $624.55
$624.55
$374.73
$374.73 - $374.73
$374.73

Banjo® Liquid Handling Products
Manifold Flange Connection | MEVX Bottom Load Electric Valve | Full Port
Specifications for Variant SKU: MEVX100BL Banjo
Series: MEVX Series
Shape (Orientation): Tee
Material(s): Polypropylene
Seal Material(s): Viton/FKM
Features:
  • 12-volt DC operated.
  • 24-volt available.
  • Open/closed indicator.
  • ON/OFF 1" has 3/4 second response.
  • ON/OFF 2" has 1-1/2 second response.
  • ON/OFF 3" has 4 second response.
  • Open / Close verification available.
  • IP68 waterproof.
  • -0 to 150F (-18 to 65C) operating.
  • -67 to 221F (-55 to 105C) storage.
  • 1"-2" On/Off Actuator rated to 500,000 cycles.
  • 3" On/Off & Regulating Actuator rated to 250,000 cycles.
  • Valve rated to 50,000 cycles leak-free.
  • Additional protocols available including CAN/ISO BUS.
Materials:
  • 316 stainless steel ball & stem
  • Stainless steel hardware
  • Fiberglass reinforced polypropylene
  • Zinc alloy lower actuator housing (3" only)
  • PTFE seats
  • FKM stem seals
On/Off:
  • Red = +12V DC
  • Black = Ground
  • White = +12VDC (Open) 0VDC (Close)
4 Wire Regulating:
  • Red = +12V DC (Open)
  • White = Ground (Open)
  • Black = +12V DC (Close)
  • Green = Ground (Close)
Part Number Description Max
PSI		 Pipe
Size		 Opening
Thru Ball		 Optional
Thru Ball		 Repair
Kit
MEVX100BL 1" Full Port Mainfold Bottom Load Electric Valve 300 1" 1" VP20153SH EVX10200
MEVX200BL 2" Standard Port Mainfold Bottom Load Electric Valve 250 2" 1-1/2" VP20153 EVX20200
MEVX220BL 2" Full Port Mainfold Bottom Load Electric Valve 125 2" 2" VP20153 EVX25200
MEVX300BL 3" Full Port Mainfold Bottom Load Electric Valve 125 3" 3" VP30153 EVX30200
Banjo

Banjo

Banjo is a world-class producer of a wide range of mechanical and electrical valves, fittings, and self-priming centrifugal pumps for agriculture and numerous industrial applications that ship to every corner of the globe. Banjo employs an array of molding presses, numerous machining and assembly cells, and an optimized logistics system empowering our production and shipping operations.
