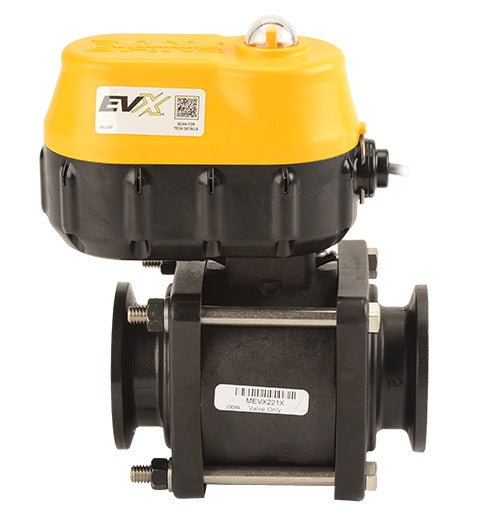

MEVX221 by Banjo | Manifold Flange Connection | MEVX On/Off Bolted Electric Valve | Full Port | 2" Pipe Size | 2" Opening Thru Ball | FKM Seals | Polypropylene

Save $214.75

$751.63

$751.63 - $751.63

$751.63

$536.88

$536.88 - $536.88

$536.88

Banjo® Liquid Handling Products
Manifold Flange Connection | MEVX On/Off Bolted Electric Valve | Full Port

Specifications for Variant SKU: MEVX221 Banjo
Series:	MEVX Series
Shape (Orientation):	Straight
Material(s):	Polypropylene
Seal Material(s):	Viton/FKM

Features:
12-volt DC operated. 24-volt available. Open/closed indicator. ON/OFF has 1-1/2 second response. Regulating has 4 second response. Open / Close verification available. IP68 waterproof. -0 to 150F (-18 to 65C) operating. -67 to 221F (-55 to 105C) storage. On/Off Actuator rated to 500,000 cycles. Regulating Actuator rated to 250,000 cycles. Valve rated to 50,000 cycles leak-free. Bolted valves have the same exact dimensions as our legacy EV valves. Additional protocols available including CAN/ISO BUS.
Materials:
316 stainless steel ball & stem. Poly ball available on bolted standard port valves. Stainless steel hardware. Fiberglass reinforced polypropylene. PTFE seats. FKM stem seals.
On/Off:
Red = +12V DC Black = Ground White = +12VDC (Open) 0VDC (Close)
4 Wire Regulating:
Red = +12V DC (Open) White = Ground (Open) Black = +12V DC (Close) Green = Ground (Close)

Part Number	Description	Max PSI	Pipe Size	Opening Thru Ball	Optional Handle Kit	Repair Kit
MEVX200	2" Standard Port Electric Valve	250 PSI	2"	1-1/2"	VP20153	EVX20200
MEVX221	2" Full Port Electric Valve	125 PSI	2"	2"	VP20153	EVX25200

Banjo

Banjo is a world-class producer of a wide range of mechanical and electrical valves, fittings, and self-priming centrifugal pumps for agriculture and numerous industrial applications that ship to every corner of the globe. Banjo employs an array of molding presses, numerous machining and assembly cells, and an optimized logistics system empowering our production and shipping operations.
