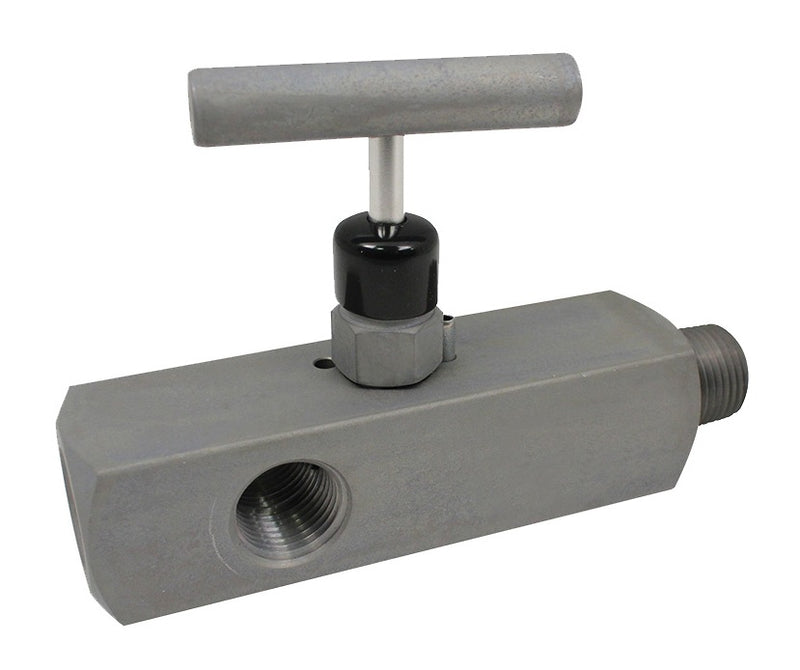

MFC304 by Dixon Valve | Multiport Needle Valve | T Design Handle | Soft Seat | 1/2" Male NPT x 1/2" Female NPT | Zinc Nickel Plated Steel

MFC304 by Dixon Valve | Multiport Needle Valve | T Design Handle | Soft Seat | 1/2" Male NPT x 1/2" Female NPT | Zinc Nickel Plated Steel

Save $97.10 Save $97.10
$242.75
$242.75 - $242.75
$242.75
$145.65
$145.65 - $145.65
$145.65

Dixon Valve & Coupling
Multiport Needle Valve
Specifications for Variant SKU: MFC304 Dixon
Shape (Orientation): Straight
Ends Configuration: 1/2in Male NPT, 1/2in Female NPT
Material(s): Zinc/Nickel-Plated Steel
Seal Material(s): FKM
Features:
  • Reduces the number of gauge and other instrument connections to permanent piping installations, decreasing possible leak paths.
  • FKM O-ring seal and PTFE back-up ring below the threads protects from corrosion and galling.
  • Stem threads are rolled for strength and ease of operation.
Materials:
  • Stems: 316 stainless steel
Specifications:
  • Metal-to-metal hard seat design is 100% helium leak tested to 1 x 10-4 ml/s at 200 PSI.
  • 1/2" Female NPT port.
  • Orifice size is 0.187", flow coefficient: 0.44.
Part Number Material NPT Size Handle Style PSI @ 200°F
Hard Seat Male NPT to Female NPT
MFC204 Zinc Nickel Plated Steel 1/2-14 T Design Handle 10000 PSI
MFC20604 Zinc Nickel Plated Steel 3/4-14 T Design Handle 10000 PSI
MFS204 316 Stainless Steel 1/2-14 T Design Handle 10000 PSI
MFS20604 316 Stainless Steel 3/4-14 T Design Handle 10000 PSI
Soft Seat Male NPT to Female NPT
MFC304 Zinc Nickel Plated Steel 1/2-14 T Design Handle 6000 PSI
MFC30604 Zinc Nickel Plated Steel 3/4-14 T Design Handle 6000 PSI
MFS304 316 Stainless Steel 1/2-14 T Design Handle 6000 PSI
MFS30604 316 Stainless Steel 3/4-14 T Design Handle 6000 PSI
