MKL-097-SP by Midland | Buchanan Megaklamp | 92-97mm Size | 0.94" Width | Hose OD Range: 3.62" to 3.82" | Zinc Plated Steel

MKL-097-SP by Midland | Buchanan Megaklamp | 92-97mm Size | 0.94" Width | Hose OD Range: 3.62" to 3.82" | Zinc Plated Steel

Save $1.43 Save $1.43
$2.32
$2.32 - $2.32
$2.32
$0.89
$0.89 - $0.89
$0.89

Midland Industries

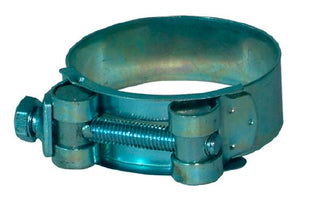

Buchanan Megaklamp Clamp

Rugged heavy duty wide band clamps for use in medium duty air and water, general industrial, automotive, food and agricultural applications.
Specifications for Variant SKU: MKL-097-SP Midland
Material(s): Zinc Plated Steel
Features:
  • Clamp sizes for hose O.D. from 17mm to 252mm
  • Yellow Zinc Plated Steel Band/Bridge/Trunnion/Sleeve/Bolt
  • Band gauge from 0.6 mm to 1.7 mm depending upon clamp size.
  • Band width from 18 mm to 26 mm depending upon clamp size.
  • Bolt size from 5 mm to 10 mm depending upon clamp size.
  • Import
Part Number Hose OD Size Hose OD Decimal: Width
Min. Max.
MKL-019-SP 17-19mm 0.67" 0.75" 1.02"
MKL-022-SP 20-22mm 0.79" 0.87" 1.02"
MKL-025-SP 23-25mm 0.87" 0.98" 1.02"
MKL-028-SP 26-28mm 1.02" 1.10" 1.02"
MKL-031-SP 29-31mm 1.14" 1.22" 1.02"
MKL-035-SP 32-35mm 1.26" 1.38" 1.02"
MKL-039-SP 36-39mm 1.42" 1.54" 1.02"
MKL-043-SP 40-43mm 1.57" 1.69" 0.87"
MKL-047-SP 44-47mm 1.73" 1.85" 0.87"
MKL-051-SP 48-51mm 1.89" 2.01" 0.87"
MKL-055-SP 52-55mm 2.05" 2.17" 0.87"
MKL-059-SP 56-59mm 2.20" 2.32" 0.87"
MKL-063-SP 60-63mm 2.36" 2.48" 0.87"
MKL-067-SP 64-67mm 2.52" 2.64" 0.94"
MKL-073-SP 68-73mm 2.68" 2.87" 0.94"
MKL-079-SP 74-79mm 2.91" 3.11" 0.94"
MKL-085-SP 80-85mm 3.15" 3.35" 0.94"
MKL-091-SP 86-91mm 3.39" 3.58" 0.94"
MKL-097-SP 92-97mm 3.62" 3.82" 0.94"
MKL-103-SP 98-103mm 3.86" 4.06" 0.94"
MKL-112-SP 104-112mm 4.09" 4.41" 0.94"
MKL-121-SP 113-121mm 4.45" 4.76" 0.94"
MKL-130-SP 122-130mm 4.80" 5.12" 0.94"
MKL-139-SP 131-139mm 5.16" 5.47" 1.02"
MKL-148-SP 140-148mm 5.51" 5.83" 1.02"
MKL-161-SP 149-161mm 5.87" 6.34" 1.02"
MKL-174-SP 162-174mm 6.38" 6.85" 1.02"
MKL-187-SP 175-187mm 6.89" 7.36" 1.02"
MKL-200-SP 188-200mm 7.40" 7.87" 1.02"
MKL-213-SP 201-213mm 7.91" 8.39" 1.02"
MKL-226-SP 214-226mm 8.43" 8.90" 1.02"
MKL-239-SP 227-239mm 8.94" 9.41" 1.02"
