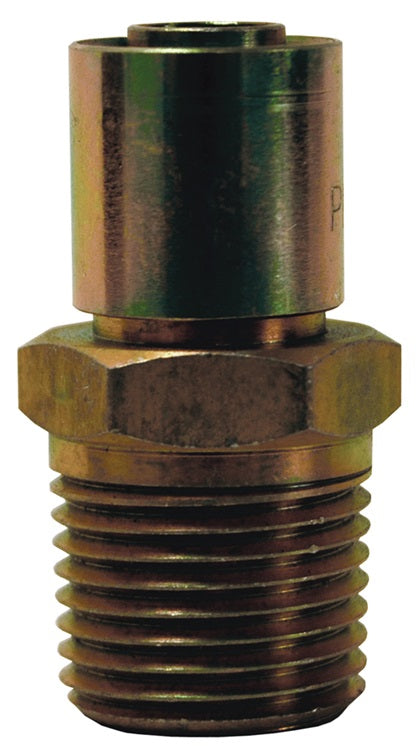

MPC-12-12 by Dixon Valve | Crimp Fitting for PTFE Hose | with Crimp Collar | 3/4" Rigid Male Pipe x -12 Hose Size | Carbon Steel

Name: MPC-12-12 by Dixon Valve | Crimp Fitting for PTFE Hose | with Crimp Collar | 3/4" Rigid Male Pipe x -12 Hose Size | Carbon Steel
Brand: Dixon
SKU: MPC-12-12 Dixon
Price: 13.07 USD
Availability: InStock

Save $1.29

$14.36

$14.36 - $14.36

$14.36

$13.07

$13.07 - $13.07

$13.07

Dixon Valve
PTFE Hose Fitting | Nominal Crimp Fitting | Rigid Male Pipe

Suitable for conveying chemicals, foods, pharmaceuticals, oils, gas, fuels and steam.

Crimp Collars for all Nominal fittings are included.

Quantity

Specifications for Variant SKU: MPC-12-12 Dixon
Series:	MPC Series
Shape (Orientation):	Straight
Ends Configuration:	3/4in Male NPT, 3/4in Reusable Hose End
Material(s):	Carbon Steel
Compatible with the following Series:	WSB Series \| BSB Series

Use:
For use with nominal smooth bore PTFE hoses.

Carbon Steel Part Number	304 Stainless Steel Part Number	Brass Part Number	Hose Size	Thread Size
MPC-04-02	MPS-04-02	MPB-04-02	-04	1/8" Male Pipe
MPC-04-04	MPS-04-04	MPB-04-04	-04	1/4" Male Pipe
MPC-05-04	MPS-05-04	MPB-05-04	-05	1/4" Male Pipe
MPC-06-04	MPS-06-04	MPB-06-04	-06	1/4" Male Pipe
MPC-06-06	MPS-06-06	MPB-06-06	-06	3/8" Male Pipe
MPC-08-06	MPS-08-06	MPB-08-06	-08	3/8" Male Pipe
MPC-08-08	MPS-08-08	MPB-08-08	-08	1/2" Male Pipe
MPC-10-08	MPS-10-08	MPB-10-08	-10	1/2" Male Pipe
MPC-12-12	MPS-12-12	MPB-12-12	-12	3/4" Male Pipe
MPC-16-16	MPS-16-16	MPB-16-16	-16	1" Male Pipe
-	-	MPB-20Z-20	-20Z	1-1/4" Male Pipe

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
