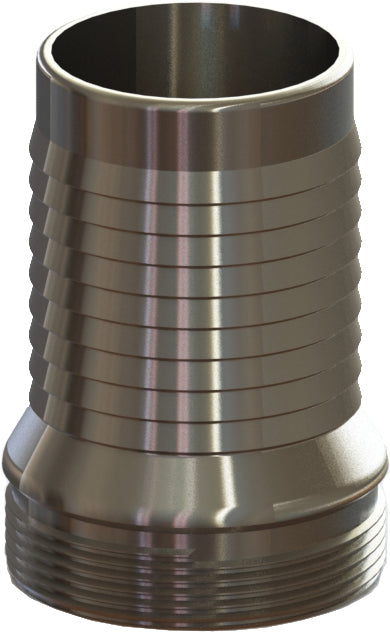

MS-5 by Campbell Fittings | Suction Hose Coupling | Male Shank | 1-1/4" Male NPSM Thread x 1-1/4" Hose Shank | Plated Steel Shank

MS-5 by Campbell Fittings | Suction Hose Coupling | Male Shank | 1-1/4" Male NPSM Thread x 1-1/4" Hose Shank | Plated Steel Shank

Save $8.81 Save $8.81
$22.03
$22.03 - $22.03
$22.03
$13.22
$13.22 - $13.22
$13.22

by Campbell
Suction Hose Couplings:MS Male Shank
Specifications for Variant SKU: MS-5 Campbell Fittings
Series: MS Series
Shape (Orientation): Straight
Ends Configuration: 1-1/4in Male NPSM, 1-1/4in Hose Barb
Material(s): Plated Steel
Recommended Use:
  • Liquid, bulk handling
Recommended Hose Attachments:
  • Sleeves
  • Preformed Bands Clamps
Features and Benefits:
  • Maximum number of serrations for maximum holding power
  • Long lead serration for easier hose insertion
  • Suction Couplings machined from pipe eliminate porosity and parting lines, improving sealing and retention.
Part Number Hose Size
MS-5 1-1/4"
MS-6 1-1/2"
MS-8 2"
MS-10 2-1/2"
MS-12 3"
MS-16 4"
MS-24 6"
MS-32 8"
Campbell Fittings

Campbell Fittings

Campbell Fittings offers a range of hose fittings, couplings, ferrules, and sleeves, for applications across a variety of industries.
