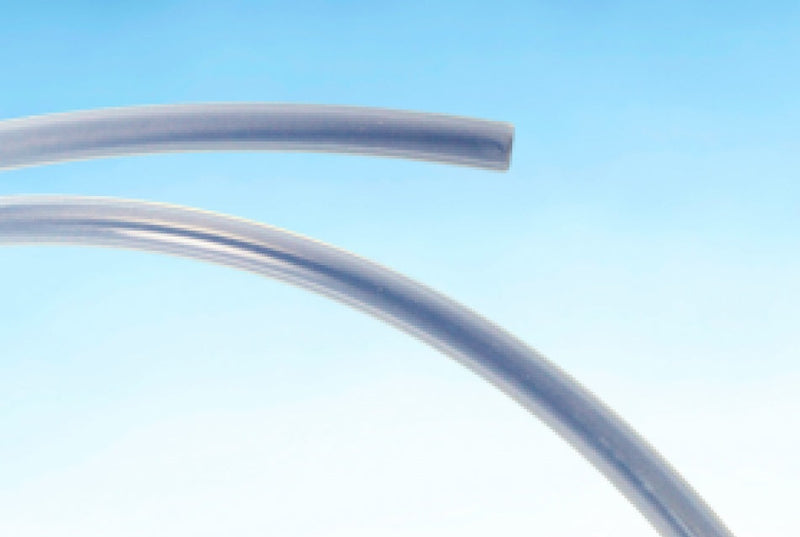

MUS1000-0250-062-50 Versilon™ by Saint Gobain | MUS-1000 | High Clarity Super Smooth Fluoropolymer Tubing | 1/8" ID x 1/4" OD x 1/16" Wall | 50' Package Length

Save $57.00

$285.00

$285.00 - $285.00

$285.00

$228.00

$228.00 - $228.00

$228.00

Saint Gobain
Versilon® MUS-1000 | High Clarity Super Smooth Fluoropolymer Tubing

Versilon® MUS-1000 tubing stands out due to its remarkable surface smoothness, up to six times smoother than conventional fluoropolymers. This minimizes cross-contamination, resulting in greater product yields and easier system cleaning.

No by the foot sales. This is a Packaged Length product.

Package Quantity: 50 EA

Specifications for Variant SKU: MUS1000-0250-062-50 Saint Gobain \| 50 \|
Brand:	Versilon
Series:	Versilon MUS-1000
Hose Color(s):	Clear/Semi-Clear
Internal Diameter:	0.125in
Outer Diameter:	0.25in
Tubing Construction:	Fluoropolymer

Fluoropolymer Flexible Tubing

Versilon® MUS-1000 | High Clarity Super Smooth Fluoropolymer Tubing

Versilon® MUS-1000 tubing from Saint-Gobain not only maintains fluid integrity but also surpasses standard fluoropolymer resins in several key aspects. Versilon® MUS-1000 tubing stands out due to its remarkable surface smoothness, up to six times smoother than conventional fluoropolymers. This minimizes cross-contamination, resulting in greater product yields and easier system cleaning. Additionally, its visual clarity is virtually unmatched among fluoropolymers. Coupled with its chemical inertness, Versilon® MUS-1000 tubing is ideal for identifying a wide range of chemicals. Its transparency allows significant UV light transmission, making it perfect for purification applications.

1

What is this product used for?

Environmental
Chemical processing
General industrial
Water purification
Nuclear

2

What are the key specifications?

Tube

Fluoropolymer

Cover

Fluoropolymer

Reinforcement

None

Colors

Clear

Maximum Continuous Operating Temp. °F (°C)

400°F (205°C)

Minimum Continuous Operating Temp °F (°C)

-400°F (-240°C)

Specifications

N/A

WARNING:

Not intended as an implant material!

3

What are the main product features?

Excellent mechanical properties.
Superior clarity versus other fluoropolymer tubing.
Resistant to virtually all commonly used chemicals.
Very high UV transmission compared to other fluoropolymer tubing.
Vastly superior surface smoothness compared to other fluoropolymer tubing.

4

Which sizes or configurations are available?

Part Number (50ft Lengths)	Inside Diameter (in)	Outside Diameter (in)	Wall Thickness (in)	Bend Radius (in)	Max. Working Pressure at 73°F (PSI)*	Max. Working Pressure at 212°F (PSI)*	Max. Working Pressure at 400°F (PSI)*
MUS1000-0125-031-50	1/16"	1/8"	1/32"	1/2"	379 PSI	165 PSI	87 PSI
MUS1000-0250-062-50	1/8"	1/4"	1/16"	1/2"	383 PSI	167 PSI	88 PSI
MUS1000-0250-047-50	5/32"	1/4"	3/32"	3/4"	266 PSI	116 PSI	61 PSI
MUS1000-0250-031-50	3/16"	1/4"	1/32"	1"	163 PSI	71 PSI	37 PSI
MUS1000-0312-031-50	1/4"	5/16"	1/32"	1-3/4"	129 PSI	56 PSI	29 PSI
MUS1000-0375-062-50	1/4"	3/8"	1/16"	1"	230 PSI	100 PSI	53 PSI
MUS1000-0500-062-50	3/8"	1/2"	1/16"	2"	164 PSI	71 PSI	38 PSI

i

Safety factor of 4 to 1 ratio of burst pressure to working pressure ASTM D1599.

How is this product sold?

No by the foot sales. This is a Packaged Length product.

6

Where can I find product documents?

PDF

Saint Gobain Versilon® MUS-1000 Data Sheet

Consult product literature, manufacturer documentation, or supporting documents for additional information.

Saint Gobain

Saint-Gobain Performance Plastics is one of the world’s leading producers of engineered, high-performance polymer products, and serves virtually every major industry across the globe. Saint-Gobain Performance Plastics businesses support these key industries with advanced technology polymer products for the most demanding applications.
