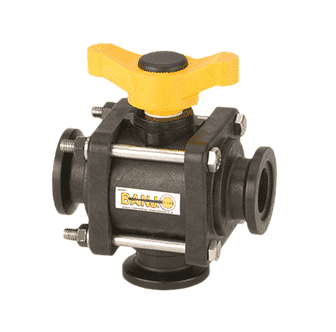

MV200BL Banjo Polypropylene 3-Way Manifold Ball Valve - Bottom Load - 4-Bolt - 2" Flange x 2" Flange - Opening Thru Ball: 1-1/2" - T Handle - 100 PSI

MV200BL by Banjo | 3-Way Manifold Ball Valve for 4-Bolt Bottom Load | 2" Flange x 2" Flange | Opening Thru Ball: 1-1/2" | T Handle | 225 PSI | Polypropylene | Pack of 6

Save $23.05

$341.69

$341.69 - $341.69

$341.69

$318.64

$318.64 - $318.64

$318.64

Banjo Manifold Flange Connections - 3-Way Manifold Ball Valves - Bottom Load - Polypropylene

Package Quantity: 6 EA

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: MV200BL Banjo \| 6 \|
Shape (Orientation):	Tee
Ends Configuration:	2in Standard Port Manifold Flange, 2in Standard Port Manifold Flange, 2in Standard Port Manifold Flange, Some Ends Match
Material(s):	Polypropylene
Seal Material(s):	Viton/FKM

Applications:
Fluids
Features:
BOTTOM LOAD: Directional flow right or left. Valve can be turned off to stop flow. Stainless steel bolts Precision molded in polypropylene. Polypro py lene is reinforced with fiber glass for additional strength Self-aligning ball moves freely against the PTFE seats for smooth operation The valve opens and closes with very little pressure on the handle Ball is diamond turned, after molding, to make it spherically perfect, which provides precise contact between ball and seats PTFE self-lubricating stem bushings and seats cannot stick or bind FKM (viton type) seals

Part Number	Description	End Type	Opening Thru Ball	Max PSI	Handle Type	Package Quantity
4 Bolt Bottom Load Manifold Valves
MV100BL	Full Port	1" Flange x 1" Flange x 1" Flange	1"	300 PSI	T	1
MV200BL	Standard Port	2" Flange x 2" Flange x 2" Flange	1-1/2"	225 PSI	T	1
MV220BL	Full Port	2" Flange x 2" Flange x 2" Flange	2"	150 PSI	Straight	1
6 Bolt Bottom Load Manifold Valves
MV300BL	Full Port	3" Flange x 3" Flange x 3" Flange	3"	150 PSI	Straight	1

Replacement Parts for MV100BL
Item	Part Number	Description	Quantity Required
1	VE10278A	1" Manifold End Plate	2
3	MV10354B	1" Manifold Body	1
4	V07021A	Handle Washer	1
5	V10020A	Handle Bolt	1
6	V10118	Lock Washer	4
7	V10119	Body Nut	4
9	V10159	Upper Stem Bushing	1
10	V10163	FKM (viton type) Stem O-Ring	1
11	V10060	Thrust Bushing	2
12	V10151A	Stem	1
13	VE10258A	Seat	2
14	V10355B	Bottom Load Ball	1
15	VE10264	Body O-Ring	2
16	V20353C	Handle Cap	1

Banjo

Banjo is a world-class producer of a wide range of mechanical and electrical valves, fittings, and self-priming centrifugal pumps for agriculture and numerous industrial applications that ship to every corner of the globe. Banjo employs an array of molding presses, numerous machining and assembly cells, and an optimized logistics system empowering our production and shipping operations.
