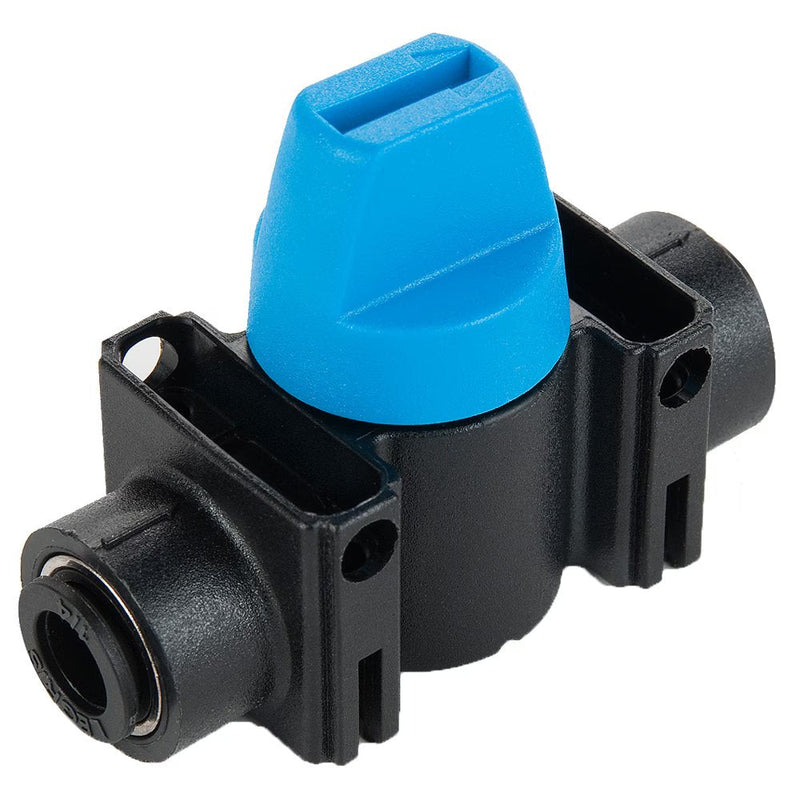

MV309-6M by Parker | Mini Ball Valve | 6 mm Push-to-Connect | 52 mm Length | 37 mm Width | 22 mm Height | Straight | Nylon | Pack of 10

MV309-6M by Parker | Mini Ball Valve | 6 mm Push-to-Connect | 52 mm Length | 37 mm Width | 22 mm Height | Straight | Nylon | Pack of 10

Save $197.69 Save $197.69
$494.22
$494.22 - $494.22
$494.22
$296.53
$296.53 - $296.53
$296.53

by Parker Hannifin
Mini Ball Valves:MV309 Mini Ball Valve Push-To-Connect Ports - Metric

Package Quantity: 10 Units

Specifications for Variant SKU: MV309-6M Parker | 10 |
Series: MV309 Series
Shape (Orientation): Straight
Material(s): Nylon, Brass, Stainless Steel
Seal Material(s): Buna-N/Nitrile Rubber
Special Properties: Valved
Product Features:
  • Nylon body
  • Brass stem
  • Stainless steel gripping ring
  • NBR stem seal
  • NBR O-ring
  • Nylon Handle
  • Lightweight and compact
Markets:
  • Factory/Process Automation
  • Packaging
  • Petrochemical
  • Pneumatics
  • Semi-Conductor
Applications:
  • Robotics
  • Packaging
  • Textile
  • Machine Tools
  • Pneumatic Systems
  • Vacuum
Pressure Range: 145 PSI (9.9 bar)
Temperature Range: -4° to 175° F (-20° to +79.4° C)
Vacuum Capability: 28” Hg
Compatible Tubing:
  • Semi-rigid nylon
  • Polyurethane 95 Durometer Shore A
  • Nylon
  • Fluoropolymer
Part Number Tube Size H H1 J K L N
MV309-4M 4 mm 37 mm 7.5 mm 15 mm 22 mm 51 mm 16.20 mm
MV309-6M 6 mm 37 mm 7.5 mm 15 mm 22 mm 52 mm 16.20 mm
MV309-8M 8 mm 37 mm 7.5 mm 15 mm 22 mm 52 mm 16.20 mm
MV309-10M 10 mm 43 mm 11.0 mm 20 mm 30 mm 66 mm 16.20 mm
MV309-12M 12 mm 43 mm 11.0 mm 20 mm 30 mm 66 mm 16.20 mm
