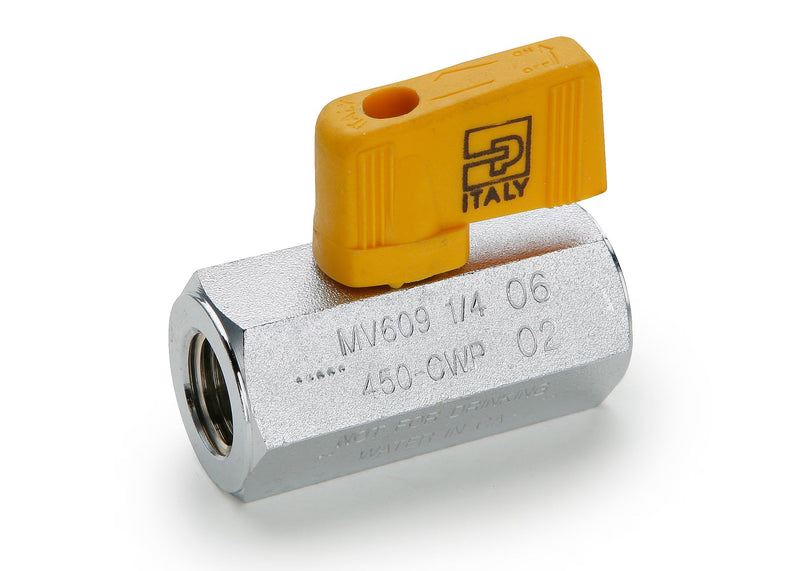

MV609-2 by Parker | Ball Valve | 1/8" Female Pipe Thread | .83" Hex | 1.71" Length | Straight | Chrome Plated Brass | Pack of 10

Save $110.31

$275.78

$275.78 - $275.78

$275.78

$165.47

$165.47 - $165.47

$165.47

by Parker Hannifin
Ball Valves Mini Series 200/608/609:Female Pipe Ends, Compact Handle, Mini Ball Valve MV609

Package Quantity: 10 Units

Specifications for Variant SKU: MV609-2 Parker \| 10 \|
Series:	MV609 Series
Shape (Orientation):	Straight
Material(s):	Chrome-Plated Brass, Polyamide
Seal Material(s):	PTFE
Special Properties:	Valved

Specification:
Product Features:	Chrome Plated Brass Body Chrome Plated Brass Ball PTFE Seats/Seals Fluorocarbon Stem Seal 608/609 Polyamide Wedge Handle 200 Polyamide Lever Handle
Style:	MV-Micro Valve
Type:	608-Male/Female 609-Female/Female 200-Female/Female 21-Oval Handle
Temperature Range:	0° to +200° F (-17.7° to +93.3° C)
Pressure Range:	MV200: 200 PSI (13.7 bar) MV608/609: Vacuum Service 28 Inches Hg MV608/609: 450 PSI (31.0 bar)


Part Number	Pipe Thread	Hex (A)	B	C	Flow Diameter (D)
MV609-2	1/8"	.83"	1.71"	1.22"	.24"
MV609-4	1/4"	.83"	1.71"	1.22"	.31"
MV609-6	3/8"	.83"	1.71"	1.22"	.31"
MV609-8	1/2"	.98"	2.11"	1.30"	.39"
MV609-6-4	3/8" X 1/4"	.83"	1.71"	1.22"	.31"

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
