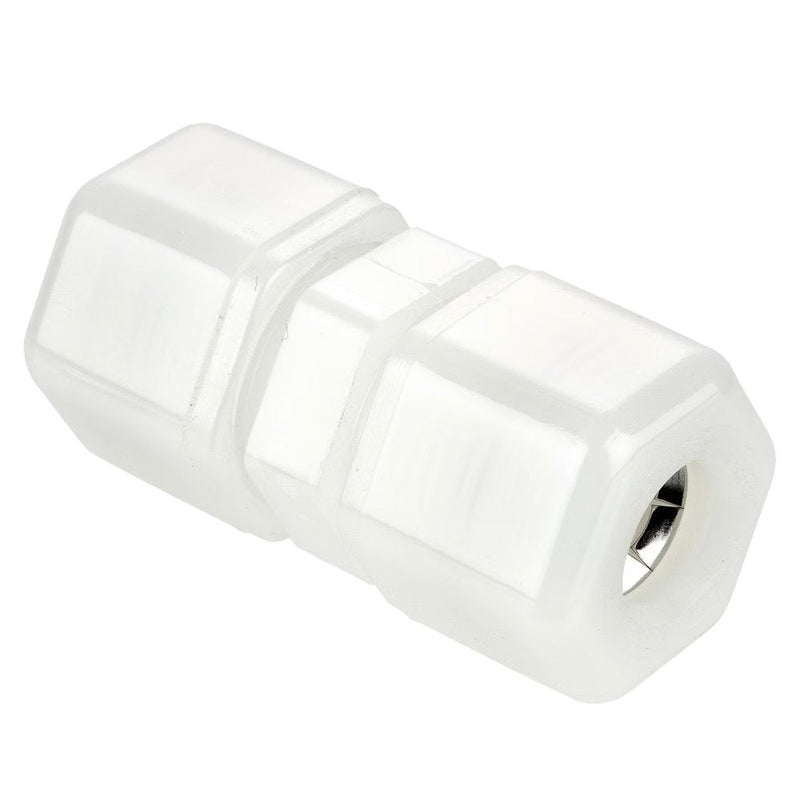

N10UC10 by Parker | Tube to Tube Fitting | 5/8" Tube OD Connector | 1-1/8" Hex | 2.40" Length | Straight | Natural | Nylon

N10UC10 by Parker | Tube to Tube Fitting | 5/8" Tube OD Connector | 1-1/8" Hex | 2.40" Length | Straight | Natural | Nylon

Save $0.42 Save $0.42
$5.09
$5.09 - $5.09
$5.09
$4.67
$4.67 - $4.67
$4.67

by Parker Hannifin
Fast & Tite® Fittings:UC - Union Connector
Specifications for Variant SKU: N10UC10 Parker
Brand: Fast & Tite®
Series: UC Series
Shape (Orientation): Straight
Material(s): Nylon, 302 Stainless Steel
Seal Material(s): Buna-N/Nitrile Rubber
Special Properties: Food Grade
Product Features:
  • Available in black polypropylene and white nylon
  • White polypropylene available as a non-standard part
  • 302 stainless steel grab ring
  • Nitrile O-ring
  • FDA compliant material
  • NSF/ANSI-51
Markets:
  • Water Filtration
  • Beverage Dispensing
  • Life Science
  • Bottling
  • Semi-Conductor
Applications:
  • Water
  • End-of-Arm Tooling
  • Beverages
  • Food
  • Cooling Systems
  • Vacuum
Temperature Range: 0° to +200° F (-17.8° to +93.3° C)
Compatible Tubing:
  • Thermoplastic
  • Soft Metal
  • Glass
Black Polypropylene Part Number Natural Nylon Part Number Nom. Tube O.D. Hex (C) Overall Length (L) Flow Diameter (D)
P4UC4 W4UC4 N4UC4 1/4" 11/16" 1.62" .170"
P5UC4 - N5UC4 5/16" - 1/4" 11/16" 1.62" .170"
P5UC5 - N5UC5 5/16" 11/16" 1.62" .190"
P6UC4 - N6UC4 3/8" - 1/4" 13/16" 1.80" .170"
P6UC5 - N6UC5 3/8" - 5/16" 13/16" 1.80" .190"
P6UC6 W6UC6 N6UC6 3/8" 13/16" 1.92" .250"
P8UC6 W8UC6 N8UC6 1/2" - 3/8" 1" 1.95" .250"
P8UC8 W8UC8 N8UC8 1/2" 1" 2.03" .375"
P10UC6 - N10UC6 5/8" - 3/8" 1-1/8" 2.19" .250"
P10UC8 - N10UC8 5/8" - 1/2" 1-1/8" 2.24" .375"
P10UC10 - N10UC10 1/4" 1-1/8" 2.40" .500"
