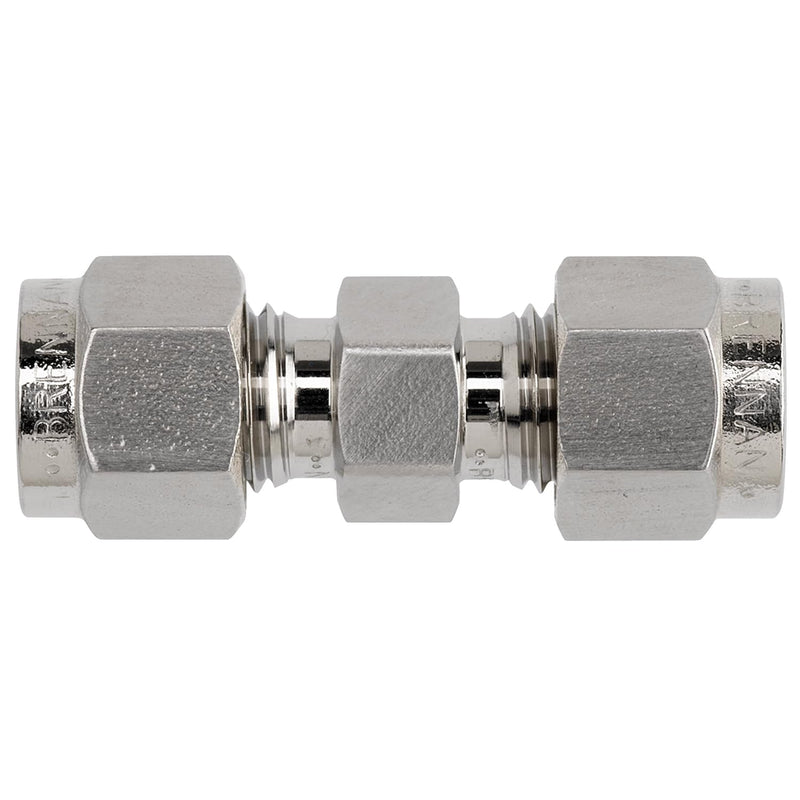

N2403-04-04-SS by Brennan Inc. | -04 Instrumentation Fitting x -04 Instrumentation Fitting | Straight | Stainless Steel

N2403-04-04-SS by Brennan Inc. | -04 Instrumentation Fitting x -04 Instrumentation Fitting | Straight | Stainless Steel

Save $2.65 Save $2.65
$23.88
$23.88 - $23.88
$23.88
$21.23
$21.23 - $21.23
$21.23

Brennan Inc.
Double Ferrule Tube Fittings: Instrumentation Fitting x Instrumentation Fitting Straight - N2403-B Series
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: N2403-04-04-SS Brennan
Shape (Orientation): Straight
Material(s): Stainless Steel
Part Number Material T Tube OD A C D E Min F A/F G A/F H
N2403-02-01-B Brass - - - - - - - -
N2403-02-02-B Brass 1/8" 35.6mm 15.3mm 13.2mm 2.4mm 11mm 11mm 22.4mm
N2403-04-02-B Brass 1/4" 38.6mm 17.8mm 15.3mm 2.4mm 14mm 14mm 24.6mm
N2403-04-04-B Brass 1/4" 40.9mm 17.8mm 15.3mm 4.8mm 12.7mm 14mm 26.2mm
N2403-05-05-B Brass 5/16" 44.1mm 18.5mm 16.8mm 6.3mm 14.2mm 16mm 28.2mm
N2403-06-04-B Brass 3/8" 43.2mm 19.3mm 16.8mm 4.8mm 16mm 17mm 28.5mm
N2403-06-06-B Brass 3/8" 46.7mm 19.3mm 17.8mm 7.1mm 16mm 17.4mm 30.2mm
N2403-08-06-B Brass 1/2" 48.5mm 21.8mm 22.9mm 7.1mm 22mm 22mm 31.0mm
N2403-08-08-B Brass 1/2" 51.1mm 21.8mm 22.8mm 10.4mm 20.6mm 22.2mm 31.0mm
N2403-12-12-B Brass 3/4" 53.6mm 21.8mm 24.4mm 15.8mm 27mm 28.5mm 33.3mm

N2403-01-01-SS Stainless Steel 1/16 29.4mm 11.0mm 10.7mm 1.3mm 8.0mm 8.0mm 17.5mm
N2403-02-01-SS Stainless Steel - - - - - - - -
N2403-02-02-SS Stainless Steel 1/8" 36.1mm 15.3mm 13.2mm 2.4mm 11.1mm 11.1mm 22.4mm
N2403-03-02-SS Stainless Steel - - - - - - - -
N2403-03-03-SS Stainless Steel 3/16" 38.1mm 16.1mm 15.0mm 3.0mm 11.1mm 14.2mm 24.2mm
N2403-04-02-SS Stainless Steel 1/4" 38.6mm 17.8mm 15.3mm 2.4mm 14mm 14mm 24.6mm
N2403-04-04-SS Stainless Steel 1/4" 40.9mm 17.8mm 15.3mm 4.8mm 12.7mm 14.2mm 26.2mm
N2403-05-02-SS Stainless Steel 5/16" 39.6mm 18.6mm 16.3mm 2.4mm 14mm 16mm 25.7mm
N2403-05-04-SS Stainless Steel 5/16" 42.2mm 18.6mm 16.3mm 4.8mm 14mm 16mm 27.5mm
N2403-05-05-SS Stainless Steel 5/16" 44.1mm 18.5mm 16.8mm 6.3mm 14.2mm 16.0mm 28.2mm
N2403-06-02-SS Stainless Steel 3/8" 40.9mm 19.3mm 16.8mm 2.4mm 16mm 17mm 26.9mm
N2403-06-04-SS Stainless Steel 3/8" 43.2mm 19.3mm 16.8mm 4.8mm 16mm 17mm 28.5mm
N2403-06-06-SS Stainless Steel 3/8" 46.7mm 19.3mm 17.8mm 7.1mm 16.0mm 17.5mm 30.2mm
N2403-08-02-SS Stainless Steel 1/2" 45.2mm 21.8mm 22.9mm 2.4mm 22mm 22mm 28.5mm
N2403-08-04-SS Stainless Steel 1/2" 47.0mm 21.8mm 22.9mm 4.8mm 22mm 22mm 29.5mm
N2403-08-06-SS Stainless Steel 1/2" 48.5mm 21.8mm 22.9mm 7.1mm 22mm 22mm 31.0mm
N2403-08-08-SS Stainless Steel 1/2" 51.1mm 21.8mm 22.8mm 10.4mm 20.6mm 22.2mm 31.0mm
N2403-10-06-SS Stainless Steel 5/8" 49.3mm 21.8mm 24.4mm 7.1mm 24mm 25mm 31.8mm
N2403-10-08-SS Stainless Steel 5/8" 52.0mm 21.8mm 24.4mm 10.4mm 24mm 25mm 31.8mm
N2403-10-10-SS Stainless Steel 5/8" 51.8mm 21.8mm 24.3mm 12.7mm 24.1mm 25.1mm 31.8mm
N2403-12-04-SS Stainless Steel 3/4" 49.3mm 21.8mm 24.4mm 4.8mm 27mm 28.5mm 31.8mm
N2403-12-06-SS Stainless Steel 3/4" 50.8mm 21.8mm 24.4mm 7.1mm 27mm 28.5mm 33.3mm
N2403-12-08-SS Stainless Steel 3/4" 53.6mm 21.8mm 24.4mm 10.4mm 27mm 28.5mm 33.3mm
N2403-12-12-SS Stainless Steel 3/4" 55.9mm 21.8mm 25.6mm 15.8mm 27.0mm 28.5mm 33.3mm
N2403-14-14-SS Stainless Steel 7/8" 61.9mm 30.5mm 29.3mm 15.8mm 30.0mm 32.0mm 34.8mm
N2403-16-08-SS Stainless Steel 1" 60.5mm 26.5mm 31.2mm 10.4mm 35mm 38mm 38.1mm
N2403-16-12-SS Stainless Steel 1" 60.5mm 26.5mm 31.2mm 15.8mm 35mm 38mm 38.1mm
N2403-16-16-SS Stainless Steel 1" 67.8mm 33.8mm 32.8mm 22.3mm 36.0mm 38.1mm 40.0mm
