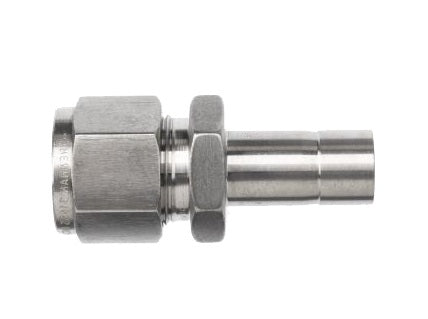

N2406-08-04-SS by Brennan Inc. | -08 Instrumentation Fitting x -04 Stand Pipe Reducer Tube | Stainless Steel

N2406-08-04-SS by Brennan Inc. | -08 Instrumentation Fitting x -04 Stand Pipe Reducer Tube | Stainless Steel

$36.38 - $36.38
$36.38
$40.03
$40.03 - $40.03
$40.03

Brennan Inc.
Double Ferrule Tube Fittings: N2406 - Instrumentation Fitting x Stand Pipe Reducer Tube
Specifications for Variant SKU: N2406-08-04-SS Brennan
Ends Configuration: 1/2in Tube Compression , 1/4in Tube Stem
Material(s): Stainless Steel
Part Number Material Tube OD TX Tube OD A C D E Min. F A/F G A/F H
N2406-02-04-B Brass 1/8" 1/4" 36.0mm 15.3mm 12.7mm 4.8mm 11mm 11mm 29.5mm
N2406-04-02-B Brass 1/4" 1/8" 36.8mm 17.8mm 15.3mm 2.0mm 14.0mm 14.0mm 29.5mm
N2406-04-08-B Brass 1/4" 1/2" 46.3mm 17.8mm 15.3mm 4.8mm 14.0mm 14.0mm 38.9mm
N2406-06-04-B Brass 3/8" 1/4" 41.4mm 19.3mm 16.8mm 7.1mm 16.0mm 17.0mm 34.0mm

N2406-02-02-SS Stainless Steel 1/8" 1/8" 33.5mm 15.3mm 12.70mm 2.0mm 11.0mm 11.0mm 26.9mm
N2406-02-04-SS Stainless Steel 1/8" 1/4" 36.0mm 15.3mm 12.70mm 4.8mm 11.0mm 11.0mm 29.5mm
N2406-04-02-SS Stainless Steel 1/4" 1/8" 36.8mm 17.8mm 15.3mm 2.0mm 14mm 14mm 29.5mm
N2406-04-04-SS Stainless Steel 1/4" 1/4" 39.1mm 17.8mm 15.3mm 4.8mm 14mm 14mm 31.8mm
N2406-04-06-SS Stainless Steel 1/4" 3/8" 40.6mm 17.8mm 15.3mm 4.80mm 14.0mm 14.0mm 33.3mm
N2406-04-08-SS Stainless Steel 1/4" 1/2" 46.3mm 17.8mm 15.3mm 4.8mm 14.0mm 14.0mm 38.9mm
N2406-05-06-SS Stainless Steel 5/16" 3/8" 41.9mm 18.6mm 16.3mm 6.3mm 14.0mm 16.0mm 34.6mm
N2406-05-08-SS Stainless Steel 5/16" 1/2" 46.5mm 18.6mm 16.3mm 6.3mm 14.0mm 16.0mm 40.2mm
N2406-06-04-SS Stainless Steel 3/8" 1/4" 41.4mm 19.3mm 16.8mm 7.1mm 16.0mm 17.0mm 34.0mm
N2406-06-06-SS Stainless Steel 3/8" 3/8" 43.2mm 19.3mm 16.8mm 7.1mm 16.0mm 17.0mm 35.8mm
N2406-06-08-SS Stainless Steel 3/8" 1/2" 48.5mm 19.3mm 16.8mm 7.1mm 16.0mm 17.0mm 41.2mm
N2406-08-04-SS Stainless Steel 1/2" 1/4" 45.0mm 21.8mm 22.9mm 4.8mm 22.0mm 22.0mm 34.8mm
N2406-08-06-SS Stainless Steel 1/2" 3/8" 46.7mm 21.8mm 22.9mm 7.1mm 22.0mm 22.0mm 36.6mm
N2406-08-08-SS Stainless Steel 1/2" 1/2" 52.3mm 21.8mm 22.9mm 9.9mm 22.0mm 22.0mm 42.2mm
N2406-08-12-SS Stainless Steel 1/2" 3/4" 53.8mm 21.8mm 22.9mm 10.4mm 22.0mm 22.0mm 43.7mm
N2406-08-16-SS Stainless Steel 1/2" 1" 60.2mm 21.8mm 22.9mm 10.4mm 22.0mm 22.0mm 50.0mm
N2405-10-12-SS Stainless Steel 10-12" 3/4" 54.6mm 21.8mm 24.4mm 12.7mm 24.0mm 25.0mm 44.5mm
N2406-12-08-SS Stainless Steel 3/4" 1/2" 54.6mm 21.8mm 24.4mm 9.9mm 27.0mm 28.5mm 44.5mm
N2406-12-16-SS Stainless Steel 12-16" 1" 62.5mm 21.8mm 24.4mm 15.8mm 27.0mm 28.5mm 52.3mm
N2406-16-08-SS Stainless Steel - - - - - - - - -
