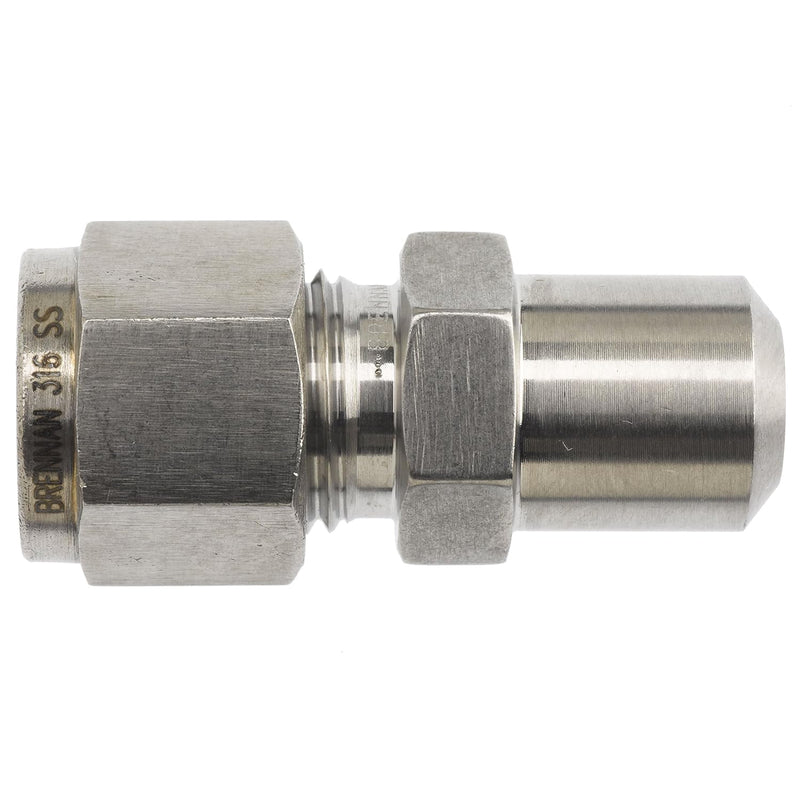

N2425-05-02-SS by Brennan Inc. | -05 Instrumentation Fitting x -02 Butt Weld Male Connector | Straight | Stainless Steel

N2425-05-02-SS by Brennan Inc. | -05 Instrumentation Fitting x -02 Butt Weld Male Connector | Straight | Stainless Steel

Save $12.87 Save $12.87
$32.18
$32.18 - $32.18
$32.18
$19.31
$19.31 - $19.31
$19.31

Brennan Inc.
Double Ferrule Tube Fittings: N2425 - Instrumentation Fitting x Butt Weld Male Connector Straight
Specifications for Variant SKU: N2425-05-02-SS Brennan
Shape (Orientation): Straight
Ends Configuration: 5/16in Tube Compression , 1/8in Weld End
Material(s): Stainless Steel
Part Number Material T Tube OD Pipe Weld Male A B C D E Min. F A/F G A/F H J
N2425-02-02-SS Stainless Steel 1/8" 1/8" 30.5mm 9.6mm 15.30mm 12.70mm 2.40mm 11.0mm 11.0mm 23.9mm 10.3mm
N2425-04-02-SS Stainless Steel 1/4" 1/8" 32.8mm 9.6mm 17.8mm 15.3mm 4.8mm 14.0mm 14.0mm 25.4mm 10.3mm
N2425-04-04-SS Stainless Steel 1/4" 1/4" 37.8mm 14.3mm 17.8mm 15.3mm 4.8mm 14.0mm 14.0mm 30.5mm 13.7mm
N2425-05-02-SS Stainless Steel 5/16" 1/8" 34.0mm 9.6mm 18.5mm 16.3mm 5.1mm 14.0mm 16.0mm 26.7mm 10.3mm
N2425-05-04-SS Stainless Steel 5/16" 1/4" 38.6mm 14.3mm 18.5mm 16.3mm 6.3mm 16.0mm 16.0mm 31.2mm 13.7mm
N2425-06-04-SS Stainless Steel 3/8" 1/4" 39.9mm 14.3mm 19.3mm 16.8mm 7.1mm 16.0mm 17.0mm 32.5mm 13.7mm
N2425-06-06-SS Stainless Steel 3/8" 3/8" 39.9mm 14.3mm 19.3mm 16.8mm 7.1mm 17.0mm 17.0mm 32.5mm 17.2mm
N2425-06-08-SS Stainless Steel 3/8" 1/2" 46.3mm 19.1mm 19.3mm 16.8mm 7.1mm 22.0mm 17.0mm 38.9mm 21.3mm
N2425-08-06-SS Stainless Steel 1/2" 3/8" 43.4mm 14.3mm 21.8mm 22.9mm 10.4mm 22.0mm 22.0mm 33.3mm 17.2mm
N2425-08-08-SS Stainless Steel 1/2" 1/2" 49.0mm 19.1mm 21.8mm 22.9mm 10.4mm 22.0mm 22.0mm 38.9mm 21.3mm
N2425-08-12-SS Stainless Steel 1/2" 3/4" 50.5mm 19.1mm 21.8mm 22.9mm 10.4mm 27.0mm 22.0mm 40.4mm 26.7mm
N2425-10-08-SS Stainless Steel 5/8" 1/2" 49.0mm 19.1mm 21.8mm 24.4mm 12.7mm 24.0mm 25.0mm 38.9mm 21.3mm
N2425-12-12-SS Stainless Steel 3/4" 3/4" 50.5mm 19.1mm 21.8mm 24.4mm 15.8mm 27.0mm 29.0mm 40.4mm 26.7mm
N2425-16-16-SS Stainless Steel 1" 1" 62.2mm 23.8mm 26.4mm 31.2mm 22.3mm 35.0mm 38.0mm 50.0mm 33.4mm
