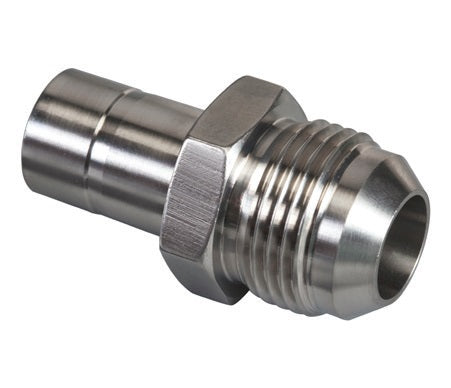

N2427-16-16-SS by Brennan Inc. | -16 Stand Pipe x -16 Male JIC | Straight | Stainless Steel

N2427-16-16-SS by Brennan Inc. | -16 Stand Pipe x -16 Male JIC | Straight | Stainless Steel

Save $64.46 Save $64.46
$161.15
$161.15 - $161.15
$161.15
$96.69
$96.69 - $96.69
$96.69

Brennan Inc.
Double Ferrule Tube Fittings: N2427 - Stand Pipe x Male JIC Straight
Specifications for Variant SKU: N2427-16-16-SS Brennan
Shape (Orientation): Straight
Ends Configuration: 1in Tube Stem, 1in Male JIC
Material(s): Stainless Steel
Part Number Material Flare Size T Tube OD A 0E JIC Male F A/F
N2427-04-04-SS Stainless Steel 1/4" 1/4" 37.1mm 4.8mm 7/16-20 14.27mm
N2427-06-06-SS Stainless Steel 3/8" 3/8" 39.6mm 7.1mm 9/16-18 16.0mm
N2427-08-08-SS Stainless Steel 1/2" 1/2" 48.5mm 9.9mm 3/4-16 22.2mm
N2427-12-12-SS Stainless Steel 3/4" 3/4" 56.1mm 15.0mm 1-1/16-12 28.5mm
N2427-16-16-SS Stainless Steel 1" 1" 62.9mm 20.3mm 1-5/16-12 36.0mm
Brennan

Brennan

Brennan Industries, founded in 1953, distinguishes itself with a commitment to quality in hydraulic and pneumatic fittings. With over 120,000 styles and sizes, Brennan serves a global market through extensive distribution networks. As a privately held company, Brennan's principals actively oversee operations, ensuring top-tier customer service and responsiveness. Their products meet or exceed J.I.C./S.A.E. and international standards, supported by ISO 9001:2015, AS9100D, and NADCAP certifications. Brennan's offerings include standard and custom solutions, backed by robust engineering support. With 13 distribution centers worldwide, Brennan delivers exceptional quality, service, and competitive pricing for all hydraulic and pneumatic fitting needs.
