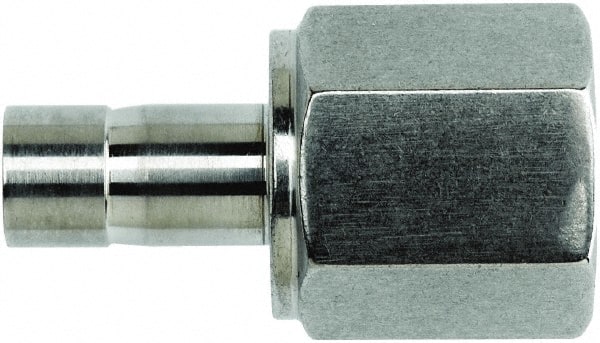

N2430-12-08-SS by Brennan Inc. | -12 Stand Pipe x -08 Female NPT | Straight | Stainless Steel

N2430-12-08-SS by Brennan Inc. | -12 Stand Pipe x -08 Female NPT | Straight | Stainless Steel

$49.31 - $49.31
$49.31
$54.24
$54.24 - $54.24
$54.24

Brennan Inc.
Double Ferrule Tube Fittings: N2430 - Stand Pipe x Female NPT Straight
Specifications for Variant SKU: N2430-12-08-SS Brennan
Shape (Orientation): Straight
Ends Configuration: 3/4in Tube Stem, 1/2in Female NPT
Material(s): Stainless Steel
Part Number Material P NPT Female T Tube OD A B E Min. F A/F
N2430-04-02-B Brass 1/8" 1/4" 33.0mm 10.4mm 4.8mm 14mm
N2430-04-04-B Brass 1/4" 1/4" 37.0mm 15.0mm 4.8mm 19mm

N2430-02-02-SS Stainless Steel 1/8" 1/8" 31.5mm 10.4mm 2.0mm 14.3mm
N2430-02-04-SS Stainless Steel 1/4" 1/8" 34.4mm 15.0mm 2.0mm 19.0mm
N2430-04-02-SS Stainless Steel 1/8" 1/4" 33.0mm 10.4mm 4.8mm 14.0mm
N2430-04-04-SS Stainless Steel 1/4" 1/4" 37.0mm 15.0mm 4.8mm 19.0mm
N2430-04-06-SS Stainless Steel 3/8" 1/4" 39.4mm 15.0mm 4.8mm 22.0mm
N2430-04-08-SS Stainless Steel 1/2" 1/4" 45.5mm 19.8mm 4.8mm 27.0mm
N2430-05-04-SS Stainless Steel 1/4" 5/16" 37.6mm 15.0mm 6.3mm 19.0mm
N2430-06-04-SS Stainless Steel 1/4" 3/8" 38.1mm 15.0mm 7.1mm 19.0mm
N2430-06-06-SS Stainless Steel 3/8" 3/8" 40.4mm 15.0mm 7.1mm 24.0mm
N2430-06-08-SS Stainless Steel 1/2" 3/8" 46.7mm 19.8mm 7.1mm 27.0mm
N2430-08-04-SS Stainless Steel 1/4" 1/2" 43.5mm 15.0mm 9.9mm 19.0mm
N2430-08-06-SS Stainless Steel 3/8" 1/2" 45.5mm 15.0mm 9.9mm 22.0mm
N2430-08-08-SS Stainless Steel 1/2" 1/2" 51.8mm 19.8mm 9.9mm 27.0mm
N2430-10-08-SS Stainless Steel 1/2" 5/8" 53.0mm 19.8mm 12.7mm 27.0mm
N2430-12-08-SS Stainless Steel 1/2" 3/4" 52.8mm 19.8mm 15.0mm 27.0mm
N2430-12-12-SS Stainless Steel 3/4" 3/4" 52.8mm 20.6mm 15.0mm 35.0mm
N2430-12-16-SS Stainless Steel 1" 3/4" 58.4mm 25.4mm 15.0mm 41.0mm
N2430-16-12-SS Stainless Steel 3/4" 1" 60.7mm 20.6mm 20.3mm 35.0mm
N2430-16-16-SS Stainless Steel 1" 1" 64.3mm 25.4mm 20.3mm 41.0mm
Brennan

Brennan

Brennan Industries, founded in 1953, distinguishes itself with a commitment to quality in hydraulic and pneumatic fittings. With over 120,000 styles and sizes, Brennan serves a global market through extensive distribution networks. As a privately held company, Brennan's principals actively oversee operations, ensuring top-tier customer service and responsiveness. Their products meet or exceed J.I.C./S.A.E. and international standards, supported by ISO 9001:2015, AS9100D, and NADCAP certifications. Brennan's offerings include standard and custom solutions, backed by robust engineering support. With 13 distribution centers worldwide, Brennan delivers exceptional quality, service, and competitive pricing for all hydraulic and pneumatic fitting needs.
