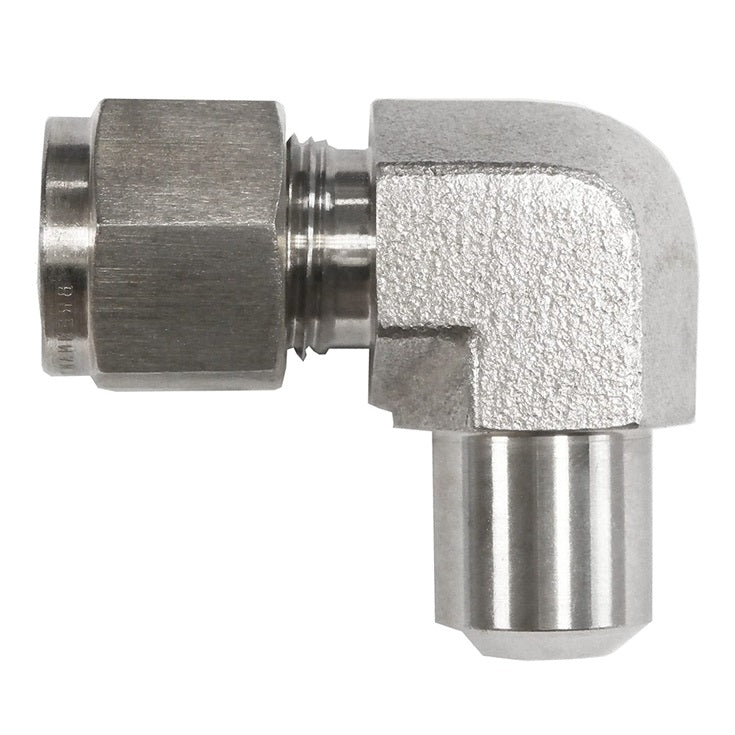

N2525-16-16-SS by Brennan Inc. | -16 Instrumentation Fitting x -16 Butt Weld 90° Elbow | Stainless Steel

N2525-16-16-SS by Brennan Inc. | -16 Instrumentation Fitting x -16 Butt Weld 90° Elbow | Stainless Steel

Save $60.09 Save $60.09
$540.84
$540.84 - $540.84
$540.84
$480.75
$480.75 - $480.75
$480.75

Brennan Inc.
Double Ferrule Tube Fittings: N2525 - Instrumentation Fitting x Butt Weld 90° Elbow
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: N2525-16-16-SS Brennan
Shape (Orientation): 90 Degree
Material(s): Stainless Steel
Part Number Material T Tube OD Pipe Weld Male A B C D E Min. F A/F G A/F HX HY J
N2525-04-02-SS Stainless Steel 1/4" 1/8" 27.0mm 9.6mm 17.8mm 15.3mm 4.8mm 14.0mm 14.0mm 19.6mm 18.8mm 10.3mm
N2505-04-04-SS Stainless Steel 1/4" 1/4" 27.0mm 14.3mm 17.8mm 15.3mm 4.8mm 14.0mm 14.0mm 19.6mm 23.4mm 13.7mm
N2525-06-04-SS Stainless Steel 3/8" 1/4" 30.5mm 14.3mm 19.3mm 16.8mm 7.1mm 16.0mm 17.0mm 23.1mm 25.9mm 13.7mm
N2525-08-08-SS Stainless Steel 1/2" 1/2" 36.0mm 19.1mm 21.8mm 22.9mm 10.4mm 22.0mm 22.0mm 25.9mm 33.0mm 21.3mm
N2525-12-12-SS Stainless Steel 3/4" 3/4" 39.9mm 19.1mm 21.8mm 24.4mm 15.8mm 27.0mm 29.0mm 29.7mm 36.8mm 26.7mm
N2525-16-16-SS Stainless Steel 1" 1" 49.9mm 23.8mm 26.4mm 31.2mm 22.3mm 35.0mm 38.0mm 36.8mm 46.5mm 33.4mm
Brennan

Brennan

Brennan Industries, founded in 1953, distinguishes itself with a commitment to quality in hydraulic and pneumatic fittings. With over 120,000 styles and sizes, Brennan serves a global market through extensive distribution networks. As a privately held company, Brennan's principals actively oversee operations, ensuring top-tier customer service and responsiveness. Their products meet or exceed J.I.C./S.A.E. and international standards, supported by ISO 9001:2015, AS9100D, and NADCAP certifications. Brennan's offerings include standard and custom solutions, backed by robust engineering support. With 13 distribution centers worldwide, Brennan delivers exceptional quality, service, and competitive pricing for all hydraulic and pneumatic fitting needs.
