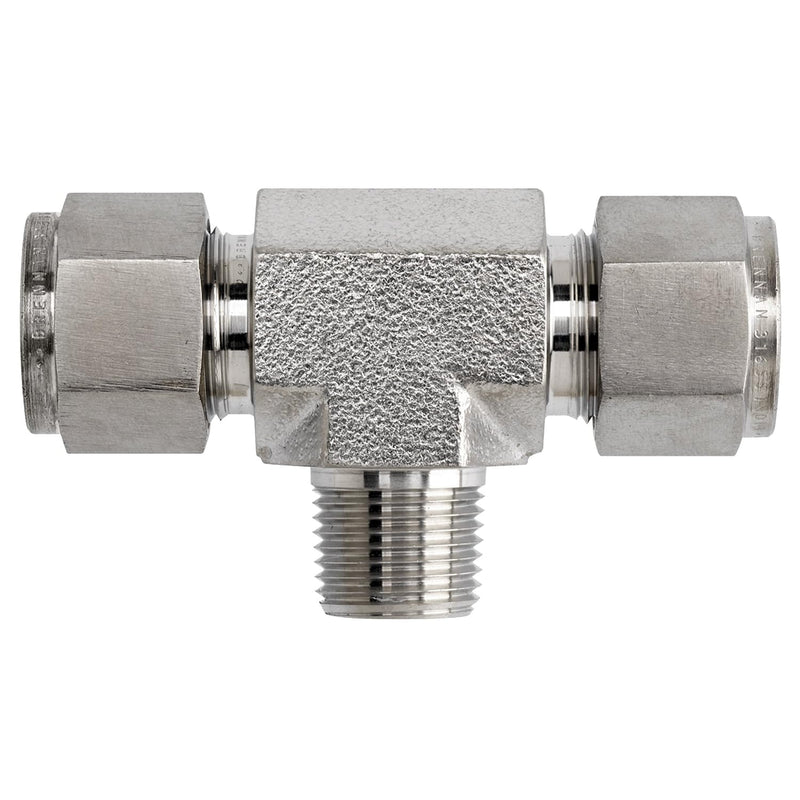

N2601-02-02-04-SS by Brennan Inc. | -02 Instrumentation Fitting x -02 Instrumentation Fitting x -04 Male NPT | Tee | Stainless Steel

N2601-02-02-04-SS by Brennan Inc. | -02 Instrumentation Fitting x -02 Instrumentation Fitting x -04 Male NPT | Tee | Stainless Steel

Save $9.23 Save $9.23
$83.05
$83.05 - $83.05
$83.05
$73.82
$73.82 - $73.82
$73.82

Brennan Inc.
Double Ferrule Tube Fittings: N2601 - Instrumentation Fitting x Instrumentation Fitting x Male NPT Tee
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: N2601-02-02-04-SS Brennan
Shape (Orientation): Tee
Material(s): Stainless Steel
Part Number Material T Tube OD P NPT Male A AX B C D E Min. F G A/F H A/F HX HY
N2601-02-02-02-B Brass 1/8" 1/8" 47.2mm 23.6mm 9.6mm 15.3mm 12.7mm 2.4mm 11.0mm 11.0mm 34.0mm 17.0mm 17.8mm
N2601-02-02-04-B Brass 1/8" 1/4" 49.2mm 24.6mm 14.3mm 15.3mm 12.7mm 2.4mm 14.0mm 11.0mm 36.0mm 18.0mm 23.4mm
N2601-04-04-02-B Brass 1/4" 1/8" 53.8mm 26.9mm 9.6mm 17.8mm 15.3mm 4.8mm 14.0mm 14.0mm 39.2mm 19.6mm 18.8mm
N2601-04-04-04-B Brass 1/4" 1/4" 53.8mm 26.9mm 14.3mm 17.8mm 15.3mm 4.8mm 14.0mm 14.0mm 39.2mm 19.6mm 23.4mm
N2601-06-06-04-B Brass 3/8" 1/4" 61.0mm 30.5mm 14.3mm 19.3mm 16.8mm 7.1mm 17.0mm 17.0mm 46.2mm 23.1mm 25.4mm
N2601-06-06-06-B Brass 3/8" 3/8" 62.4mm 31.2mm 14.3mm 19.3mm 16.8mm 7.1mm 17.0mm 17.0mm 47.8mm 23.9mm 26.2mm
N2601-08-08-08-B Brass 1/2" 1/2" 72.0mm 36.0mm 19.1mm 21.8mm 22.9mm 10.4mm 22.0mm 22.0mm 51.8mm 25.9mm 33.0mm

N2601-02-02-02-SS Stainless Steel 1/8" 1/8" 47.2mm 23.6mm 9.6mm 15.3mm 12.7mm 2.4mm 11.0mm 11.0mm 34.0mm 17.0mm 17.8mm
N2601-02-02-04-SS Stainless Steel 1/8" 1/4" 49.2mm 24.6mm 14.3mm 15.3mm 12.7mm 2.4mm 14.0mm 11.0mm 36.0mm 18.0mm 23.4mm
N2601-04-04-02-SS Stainless Steel 1/4" 1/8" 53.8mm 26.9mm 9.6mm 17.8mm 15.3mm 4.8mm 14.0mm 14.0mm 39.2mm 19.6mm 18.8mm
N2601-04-04-04-SS Stainless Steel 1/4" 1/4" 53.8mm 26.9mm 14.3mm 17.8mm 15.3mm 4.8mm 14.0mm 14.0mm 39.2mm 19.6mm 23.4mm
N2601-04-04-06-SS Stainless Steel 1/4" 3/8" 59.4mm 29.7mm 14.3mm 17.8mm 15.3mm 4.8mm 17.0mm 14.0mm 44.8mm 22.4mm 26.2mm
N2601-04-04-08-SS Stainless Steel 1/4" 1/2" 63.6mm 31.8mm 19.1mm 17.8mm 15.3mm 4.8mm 22.0mm 14.0mm 44.8mm 24.4mm 33.0mm
N2601-06-06-04-SS Stainless Steel 3/8" 1/4" 61.0mm 30.5mm 14.3mm 19.3mm 16.8mm 7.1mm 17.0mm 17.0mm 46.2mm 23.1mm 25.4mm
N2601-06-06-06-SS Stainless Steel 3/8" 3/8" 62.4mm 31.2mm 14.3mm 19.3mm 16.8mm 7.1mm 17.0mm 17.0mm 47.8mm 23.9mm 26.2mm
N2601-06-06-08-SS Stainless Steel 3/8" 1/2" 66.0mm 33.0mm 19.1mm 19.3mm 16.8mm 7.1mm 22.0mm 17.0mm 51.8mm 25.9mm 33.0mm
N2601-06-06-08-SS Stainless Steel 3/8" 1/2" 66.0mm 33.0mm 19.1mm 19.3mm 16.8mm 7.1mm 22.0mm 17.0mm 51.8mm 25.9mm 33.0mm
N2601-06-06-08-SS Stainless Steel 3/8" 1/2" 66.0mm 33.0mm 19.1mm 19.3mm 16.8mm 7.1mm 22.0mm 17.0mm 51.8mm 25.9mm 33.0mm
N2601-08-08-04-SS Stainless Steel 1/2" 1/4" 72.0mm 36.0mm 14.3mm 21.8mm 22.9mm 4.8mm 22.0mm 22.0mm 51.8mm 25.9mm 28.20mm
N2601-08-08-06-SS Stainless Steel 1/2" 3/8" 72.0mm 36.0mm 14.3mm 21.8mm 22.9mm 9.6mm 22.0mm 22.0mm 51.8mm 25.9mm 28.20mm
N2601-08-08-08-SS Stainless Steel 1/2" 1/2" 72.0mm 36.0mm 19.1mm 21.8mm 22.9mm 10.4mm 22.0mm 22.0mm 51.8mm 25.9mm 33.0mm
N2601-10-10-08-SS Stainless Steel 5/8" 1/2" 76.2mm 38.1mm 19.1mm 21.8mm 24.4mm 11.9mm 22.0mm 25.0mm 55.8mm 27.9mm 35.0mm
N2601-12-12-08-SS Stainless Steel 3/4" 1/2" 79.8mm 39.9mm 19.1mm 21.8mm 24.4mm 11.9mm 27.0mm 29.0mm 59.4mm 29.7mm 36.8mm
N2601-12-12-12-SS Stainless Steel 3/4" 3/4" 79.8mm 39.9mm 19.1mm 21.8mm 24.4mm 15.8mm 27.0mm 29.0mm 59.4mm 29.7mm 36.8mm
N2601-16-16-12-SS Stainless Steel 1" 3/4" 98.0mm 49.0mm 19.1mm 26.4mm 31.0mm 15.8mm 35.0mm 38.0mm 73.6mm 36.8mm 41.6mm
N2601-16-16-16-SS Stainless Steel 1" 1" 98.0mm 49.0mm 23.8mm 26.4mm 31.0mm 22.3mm 35.0mm 38.0mm 73.6mm 36.8mm 46.5mm
