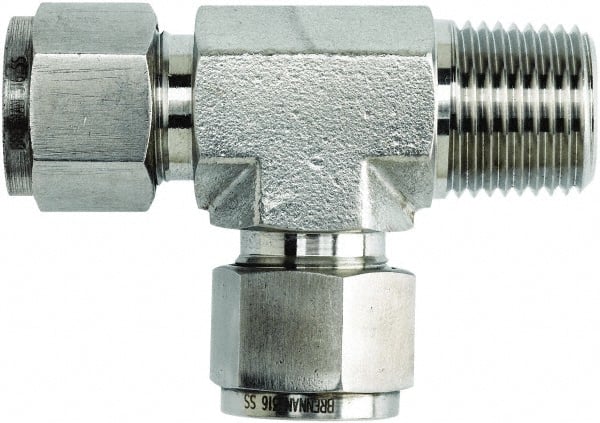

N2605-08-08-08-SS by Brennan Inc. | -08 Instrumentation Fitting x -08 Male NPT Run x -08 Instrumentation Fitting | Tee | Stainless Steel

N2605-08-08-08-SS by Brennan Inc. | -08 Instrumentation Fitting x -08 Male NPT Run x -08 Instrumentation Fitting | Tee | Stainless Steel

Save $10.75 Save $10.75
$96.72
$96.72 - $96.72
$96.72
$85.97
$85.97 - $85.97
$85.97

Brennan Inc.
Double Ferrule Tube Fittings:Instrumentation Fitting x Male NPT Run x Instrumentation Fitting Tee - N2605 Series
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: N2605-08-08-08-SS Brennan
Shape (Orientation): Tee
Material(s): Stainless Steel
Part Number Material T Tube OD P NPT Male A AX B C D E Min. F G A/F H A/F HX A/F HY
N2605-02-02-02-B Brass 1/8" 1/8" 41.4mm 23.6mm 9.6mm 15.3mm 12.7mm 2.4mm 11.0mm 11.0mm 34.8mm 17.0mm 17.8mm
N2605-04-02-04-B Brass 1/4" 1/8" 45.7mm 26.9mm 9.6mm 17.8mm 15.3mm 4.8mm 14.0mm 14.0mm 38.4mm 19.6mm 18.8mm
N2605-04-04-04-B Brass 1/4" 1/4" 50.3mm 26.9mm 14.3mm 17.8mm 15.3mm 4.8mm 14.0mm 14.0mm 43.0mm 19.6mm 23.4mm
N2605-06-04-06-B Brass 3/8" 1/4" 55.9mm 30.5mm 14.3mm 19.3mm 16.8mm 7.1mm 17.0mm 17.0mm 48.5mm 23.1mm 25.4mm
N2605-06-06-06-B Brass 3/8" 3/8" 57.4mm 31.2mm 14.3mm 19.3mm 16.8mm 7.1mm 17.0mm 17.0mm 50.1mm 23.9mm 26.2mm
N2605-06-06-06-B Brass 3/8" 3/8" 57.4mm 31.2mm 14.3mm 19.3mm 16.8mm 7.1mm 17.0mm 17.0mm 50.1mm 23.9mm 26.2mm
N2605-08-06-08-B Brass 1/2" 3/8" 64.2mm 36.0mm 14.3mm 21.8mm 22.9mm 9.6mm 22.0mm 22.0mm 54.1mm 25.9mm 28.2mm
N2605-08-08-08-B Brass 1/2" 1/2" 69.0mm 36.0mm 19.1mm 21.8mm 22.9mm 10.4mm 22.0mm 22.0mm 58.9mm 25.9mm 33.0mm

N2605-02-02-02-SS Stainless Steel 1/8" 1/8" 41.4mm 23.6mm 9.6mm 15.3mm 12.7mm 2.4mm 11.0mm 11.0mm 34.8mm 17.0mm 17.8mm
N2605-02-04-02-SS Stainless Steel 1/8" 1/4" 48.0mm 24.6mm 14.3mm 15.3mm 12.7mm 2.4mm 14.0mm 11.0mm 41.4mm 18.0mm 23.4mm
N2605-04-02-04-SS Stainless Steel 1/4" 1/8" 45.7mm 26.9mm 9.6mm 17.8mm 15.3mm 4.8mm 14.0mm 14.0mm 38.4mm 19.6mm 18.8mm
N2605-04-04-04-SS Stainless Steel 1/4" 1/4" 50.3mm 26.9mm 14.3mm 17.8mm 15.3mm 4.8mm 14.0mm 14.0mm 43.0mm 19.6mm 23.4mm
N2605-04-06-04-SS Stainless Steel 1/4" 3/8" 55.9mm 29.7mm 14.3mm 17.8mm 15.3mm 4.8mm 17.0mm 14.0mm 48.8mm 22.4mm 26.2mm
N2605-04-08-04-SS Stainless Steel 1/4" 1/2" 64.8mm 31.8mm 19.1mm 17.8mm 15.3mm 4.8mm 22.0mm 14.0mm 57.4mm 24.4mm 33.0mm
N2605-06-04-06-SS Stainless Steel 3/8" 1/4" 55.9mm 30.5mm 14.3mm 19.3mm 16.8mm 7.1mm 17.0mm 17.0mm 48.5mm 23.1mm 25.4mm
N2605-06-06-06-SS Stainless Steel 3/8" 3/8" 57.4mm 31.2mm 14.3mm 19.3mm 16.8mm 7.1mm 17.0mm 17.0mm 50.1mm 23.9mm 26.2mm
N2605-06-08-06-SS Stainless Steel 3/8" 1/2" 66.0mm 33.0mm 19.1mm 19.3mm 16.8mm 7.1mm 22.0mm 17.0mm 58.9mm 25.9mm 33.0mm
N2605-08-04-08-SS Stainless Steel 1/2" 1/4" 64.2mm 36.0mm 14.3mm 21.8mm 22.9mm 4.8mm 22.0mm 22.0mm 54.1mm 25.9mm 28.2mm
N2605-08-06-08-SS Stainless Steel 1/2" 3/8" 64.2mm 36.0mm 14.3mm 21.8mm 22.9mm 9.6mm 22.0mm 22.0mm 54.1mm 25.9mm 28.2mm
N2605-08-08-08-SS Stainless Steel 1/2" 1/2" 69.0mm 36.0mm 19.1mm 21.8mm 22.9mm 10.4mm 22.0mm 22.0mm 58.9mm 25.9mm 33.0mm
N2605-10-08-10-SS Stainless Steel 5/8" 1/2" 73.1mm 38.1mm 19.1mm 21.8mm 24.4mm 11.9mm 22.0mm 25.0mm 62.9mm 27.9mm 35.0mm
N2605-12-08-12-SS Stainless Steel 3/4" 1/2" 76.7mm 39.9mm 19.1mm 21.8mm 24.4mm 11.9mm 27.0mm 29.0mm 66.5mm 29.7mm 36.8mm
N2605-12-12-12-SS Stainless Steel 3/4" 3/4" 76.7mm 39.9mm 19.1mm 21.8mm 24.4mm 15.8mm 27.0mm 29.0mm 66.5mm 29.7mm 36.8mm
N2605-16-12-16-SS Stainless Steel 1" 3/4" 90.6mm 49.0mm 19.1mm 26.4mm 31.2mm 15.8mm 35.0mm 38.0mm 78.4mm 36.8mm 41.6mm
N2605-16-16-16-SS Stainless Steel 1" 1" 95.5mm 49.0mm 23.8mm 26.4mm 31.2mm 22.3mm 35.0mm 38.0mm 83.3mm 36.8mm 46.5mm
Brennan

Brennan

Brennan Industries, founded in 1953, distinguishes itself with a commitment to quality in hydraulic and pneumatic fittings. With over 120,000 styles and sizes, Brennan serves a global market through extensive distribution networks. As a privately held company, Brennan's principals actively oversee operations, ensuring top-tier customer service and responsiveness. Their products meet or exceed J.I.C./S.A.E. and international standards, supported by ISO 9001:2015, AS9100D, and NADCAP certifications. Brennan's offerings include standard and custom solutions, backed by robust engineering support. With 13 distribution centers worldwide, Brennan delivers exceptional quality, service, and competitive pricing for all hydraulic and pneumatic fitting needs.
