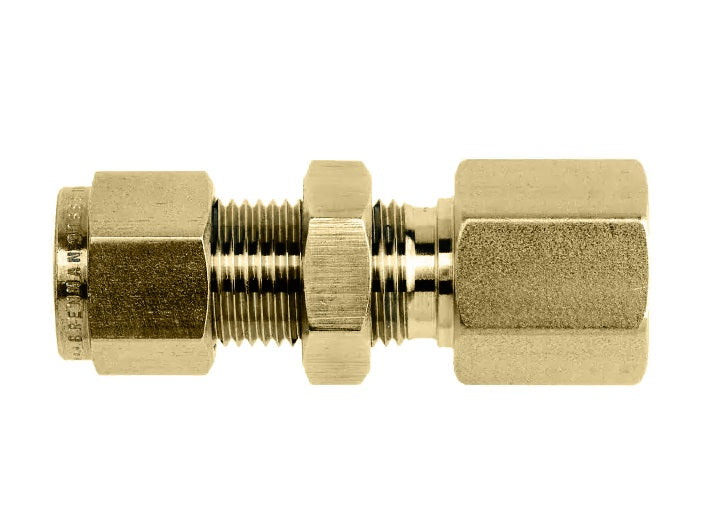

N2705-LN-06-04-B by Brennan Inc. | -06 Instrumentation Fitting Bulkhead x -04 Female NPT | Straight | Brass

N2705-LN-06-04-B by Brennan Inc. | -06 Instrumentation Fitting Bulkhead x -04 Female NPT | Straight | Brass

$23.22 - $23.22
$23.22
$25.55
$25.55 - $25.55
$25.55

Brennan Inc.
Double Ferrule Tube Fittings: N2705-LN - Instrumentation Fitting Bulkhead x Female NPT Straight
Specifications for Variant SKU: N2705-LN-06-04-B Brennan
Shape (Orientation): Straight
Ends Configuration: 3/8in Tube Compression , 1/4in Female NPT
Material(s): Brass
Part Number Material T Tube OD P NPT Female A AX B D E Min. F A/F G A/F H HX Panel Hole Drill Size Max. Panel Thickness
N2705-LN-06-04-B Brass 3/8" 1/4" 54.8mm 36.8mm 15.0mm 16.8mm 7.1mm 19.0mm 17.0mm 47.5mm 29.5mm 14.7mm 11.2mm

N2705-LN-02-02-SS Stainless Steel 1/8" 1/8" 44.7mm 31.2mm 10.4mm 12.7mm 2.4mm 14.0mm 11.0mm 38.1mm 24.6mm 8.3mm 12.7mm
N2705-LN-04-02-SS Stainless Steel 1/4" 1/8" 47.0mm 33.5mm 10.4mm 15.3mm 4.8mm 16.0mm 14.0mm 39.7mm 26.2mm 11.5mm 10.2mm
N2705-LN-04-04-SS Stainless Steel 1/4" 1/4" 51.5mm 33.5mm 15.0mm 15.3mm 4.8mm 19.0mm 14.0mm 44.2mm 26.2mm 11.5mm 10.2mm
N2705-LN-06-04-SS Stainless Steel 3/8" 1/4" 54.8mm 36.8mm 15.0mm 16.8mm 7.1mm 19.0mm 17.0mm 47.5mm 29.5mm 14.7mm 11.2mm
N2701-LN-08-06-SS Stainless Steel 1/2" 3/8" 61.7mm 41.9mm 15.0mm 22.9mm 10.4mm 22.0mm 22.0mm 51.6mm 31.0mm 19.5mm 12.7mm
N2705-LN-08-08-SS Stainless Steel 1/2" 1/2" 66.7mm 41.9mm 19.8mm 22.9mm 10.4mm 27.0mm 22.0mm 56.6mm 31.0mm 19.5mm 12.7mm
N2705-LN-10-08-SS Stainless Steel 5/8" 1/2" 67.6mm 42.7mm 19.8mm 22.9mm 12.7mm 27.0mm 25.0mm 57.4mm 32.5mm 22.6mm 12.7mm
N2705-LN-12-08-SS Stainless Steel 3/4" 3/4" 72.4mm 47.5mm 19.8mm 24.4mm 16.0mm 35.0mm 28.5mm 62.3mm 37.4mm 25.8mm 16.8mm
N2705-LN-12-12-SS Stainless Steel 3/4" 3/4" 74.7mm 47.5mm 20.6mm 24.4mm 16.0mm 35.0mm 28.5mm 64.3mm 37.4mm 25.8mm 16.8mm
N2705-LN-16-12-SS Stainless Steel - - - - - - - - - - - - -
N2705-LN-16-16-SS Stainless Steel 1" 1" 84.3mm 57.4mm 20.6mm 31.2mm 16.0mm 35.0mm 38.0mm 72.1mm 45.2mm 33.7mm 19.0mm
