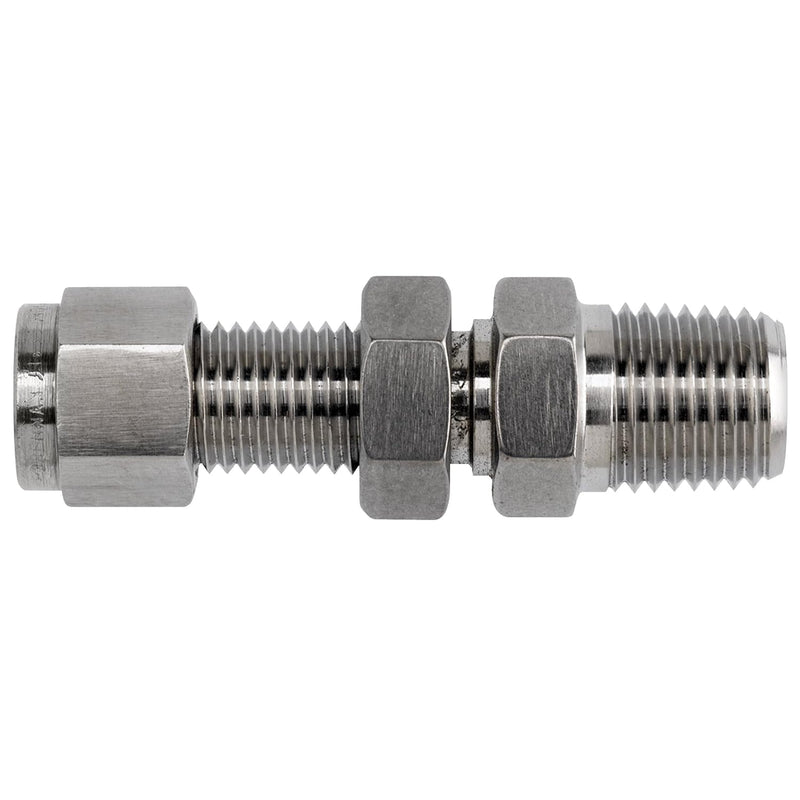

N2706-LN-02-02-SS by Brennan Inc. | -02 Instrumentation Fitting Bulkhead x -02 Male NPT | Straight | Stainless Steel

N2706-LN-02-02-SS by Brennan Inc. | -02 Instrumentation Fitting Bulkhead x -02 Male NPT | Straight | Stainless Steel

$45.60 - $45.60
$45.60
$50.16
$50.16 - $50.16
$50.16

Brennan Inc.
Double Ferrule Tube Fittings: N2706-LN - Instrumentation Fitting Bulkhead x Male NPT Straight
Specifications for Variant SKU: N2706-LN-02-02-SS Brennan
Shape (Orientation): Straight
Ends Configuration: 1/8in Tube Compression , 1/8in Male NPT
Material(s): Stainless Steel
Part Number Material T Tube OD P NPT Female A AX B D E Min. F A/F G A/F H HX Panel Hole Drill Size Max. Panel Thickness
N2706-LN-02-02-SS Stainless Steel 1/8" 1/8" 46.4mm 31.2mm 9.6mm 12.7mm 2.4mm 14.0mm 11.0mm 39.8mm 24.6mm 8.3mm 12.7mm
N2706-LN-04-02-SS Stainless Steel 1/4" 1/8" 49.5mm 33.5mm 9.6mm 15.3mm 4.8mm 16.0mm 14.0mm 42.2mm 26.2mm 11.5mm 10.2mm
N2706-LN-04-04-SS Stainless Steel 1/4" 1/4" 54.1mm 33.5mm 14.3mm 15.3mm 4.8mm 16.0mm 14.0mm 46.7mm 26.2mm 11.5mm 10.2mm
N2706-LN-06-04-SS Stainless Steel 3/8" 1/4" 57.4mm 36.8mm 14.3mm 16.8mm 7.1mm 19.0mm 17.0mm 50.0mm 29.5mm 14.7mm 11.2mm
N2706-LN-06-06-SS Stainless Steel 3/8" 3/8" 57.4mm 36.8mm 14.3mm 16.8mm 7.1mm 19.0mm 17.0mm 50.0mm 29.5mm 14.7mm 11.2mm
N2706-LN-06-08-SS Stainless Steel 3/8" 1/2" 63.7mm 36.8mm 19.1mm 16.8mm 7.1mm 22.0mm 17.0mm 56.5mm 29.5mm 14.7mm 11.2mm
N2706-LN-08-06-SS Stainless Steel 1/2" 3/8" 63.3mm 41.9mm 14.3mm 22.9mm 9.6mm 24.0mm 22.0mm 53.0mm 31.8mm 19.5mm 12.7mm
N2706-LN-08-08-SS Stainless Steel 1/2" 1/2" 68.8mm 41.9mm 19.1mm 22.9mm 10.4mm 24.0mm 22.0mm 58.8mm 31.8mm 19.5mm 12.7mm
N2706-LN-12-12-SS Stainless Steel 3/4" 3/4" 76.2mm 47.5mm 19.1mm 24.4mm 15.8mm 30.0mm 28.5mm 66.9mm 37.4mm 25.8mm 16.8mm
N2706-LN-16-16-SS Stainless Steel 1" 1" 93.2mm 57.4mm 23.9mm 31.2mm 22.3mm 41.0mm 38.0mm 81.0mm 45.2mm 33.7mm 19.0mm
Brennan

Brennan

Brennan Industries, founded in 1953, distinguishes itself with a commitment to quality in hydraulic and pneumatic fittings. With over 120,000 styles and sizes, Brennan serves a global market through extensive distribution networks. As a privately held company, Brennan's principals actively oversee operations, ensuring top-tier customer service and responsiveness. Their products meet or exceed J.I.C./S.A.E. and international standards, supported by ISO 9001:2015, AS9100D, and NADCAP certifications. Brennan's offerings include standard and custom solutions, backed by robust engineering support. With 13 distribution centers worldwide, Brennan delivers exceptional quality, service, and competitive pricing for all hydraulic and pneumatic fitting needs.
