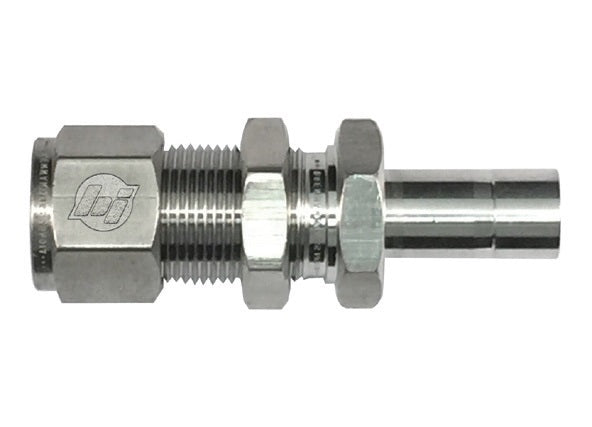

N2709-LN-08-08-SS by Brennan Inc. | -08 Instrumentation Fitting Bulkhead x -08 Stand Pipe | Straight | Stainless Steel

N2709-LN-08-08-SS by Brennan Inc. | -08 Instrumentation Fitting Bulkhead x -08 Stand Pipe | Straight | Stainless Steel

$59.13 - $59.13
$59.13
$65.04
$65.04 - $65.04
$65.04

Brennan Inc.
Double Ferrule Tube Fittings: N2709-LN - Instrumentation Fitting Bulkhead x Stand Pipe Straight
Specifications for Variant SKU: N2709-LN-08-08-SS Brennan
Shape (Orientation): Straight
Ends Configuration: 1/2in Tube Compression , 1/2in Tube Stem
Material(s): Stainless Steel
Part Number Material T Tube OD TX Tube OD A AX D E Min. F A/F G A/F H D HX Panel Hole Drill Size Max. Panel Thickness
N2709-LN-04-04-SS Stainless Steel 1/4" 1/4" 55.9mm 33.5mm 15.3mm 4.8mm 16mm 14mm 48.5mm 26.2mm 11.5mm 10.2mm
N2709-LN-06-06-SS Stainless Steel 3/8" 3/8" 60.8mm 36.8mm 16.8mm 7.1mm 19mm 17mm 53.8mm 29.5mm 14.7mm 11.2mm
N2709-LN-08-08-SS Stainless Steel 1/2" 1/2" 72.9mm 41.9mm 22.9mm 9.9mm 24mm 22mm 62.7mm 31.8mm 19.5mm 12.7mm
Brennan

Brennan

Brennan Industries, founded in 1953, distinguishes itself with a commitment to quality in hydraulic and pneumatic fittings. With over 120,000 styles and sizes, Brennan serves a global market through extensive distribution networks. As a privately held company, Brennan's principals actively oversee operations, ensuring top-tier customer service and responsiveness. Their products meet or exceed J.I.C./S.A.E. and international standards, supported by ISO 9001:2015, AS9100D, and NADCAP certifications. Brennan's offerings include standard and custom solutions, backed by robust engineering support. With 13 distribution centers worldwide, Brennan delivers exceptional quality, service, and competitive pricing for all hydraulic and pneumatic fitting needs.
