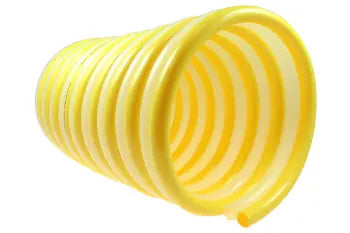

N316Y-N316N-50 by Coilhose | Twin Bonded Coiled Air Hose | 3/16" x 3/16" Hose ID | No Fittings | Yellow/Natural | Nylon | 50ft

N316Y-N316N-50 by Coilhose | Twin Bonded Coiled Air Hose | 3/16" x 3/16" Hose ID | No Fittings | Yellow/Natural | Nylon | 50ft

Save $68.68 Save $68.68
$171.70
$171.70 - $171.70
$171.70
$103.02
$103.02 - $103.02
$103.02
Coilhose Pneumatics - Coiled Hose - Twin Bonded Nylon Air Hose
Specifications for Variant SKU: N316Y-N316N-50 Coilhose
Hose Color(s): Yellow
Material(s): Nylon
Overview:
  • Twin Bonded Self-Storing Nylon Air Hose provides an efficient way to service applications that require air and fluid transport or air and an exhaust return. The intermittent bond allows fittings to be installed without damaging the individual tubes. One yellow tube and one natural colored tube simplify tube identification. Cut-to length coils are supplied with swivel fittings that have a pre-applied thread sealant. They are also available in 50' bulk coils without fittings.
Features:
  • Excellent for use on overhead cranes.
  • Colored tubes simplify identification.
  • Swivel fittings come with factory applied thread sealant.
  • Natural colored tube allows visual verification of fluid movement.
  • NOTE: For impact tool applications, we strongly recommend the use of a rigid fitting at the working (tool) end to assure a safer and more durable connection.

Part No Hose Inside
Diameter		 MPT Fittings Overall
Length		 Retracted
Length		 Working
Length		 Color
N18Y-N18N-12B 1/8" x 1/8" 1/8" x 1/8" Swivel MPT 12' 13.4" 9.6' Yellow
N18Y-N18N-25B 1/8" x 1/8" 1/8" x 1/8" Swivel MPT 25' 27.8" 20' Yellow
N18Y-N18N-50 1/8" x 1/8" None 50' 55.6" 40' Yellow
N316Y-N316N-12B 3/16" & 3/16" 1/4" x 1/4" Swivel MPT 12' 9" 9.6' Yellow
N316Y-N316N-25B 3/16" & 3/16" 1/4" x 1/4" Swivel MPT 25' 19" 20' Yellow
N316Y-N316N-50 3/16" & 3/16" None 50' 38" 40' Yellow
N14Y-N14N-12B 1/4" & 1/4" 1/4" x 1/4" Swivel MPT 12' 9.2" 9.6' Yellow
N14Y-N14N-50 1/4" & 1/4" None 50' 38" 40' Yellow
N516Y-N516N-12B 5/16" & 5/16" 1/4" x 1/4" Swivel MPT 12' 9" 9.6' Yellow
N516Y-N516N-25B 5/16" & 5/16" 1/4" x 1/4" Swivel MPT 25' 18" 20' Yellow
N516Y-N516N-50 5/16" & 5/16" None 50' 36" 40' Yellow
N38Y-N38N-12B 3/8" & 3/8" 3/8" x 3/8" Swivel MPT 12' 9.4" 9.6' Yellow
N38Y-N38N-25B 3/8" & 3/8" 3/8" x 3/8" Swivel MPT 25' 18.8" 20' Yellow
N38Y-N38N-50 3/8" & 3/8" None 50' 37.6" 40' Yellow
N12Y-N12N-12B 1/2" & 1/2" 1/2" x 1/2" Swivel MPT 12' 7.6" 9.6' Yellow
N12Y-N12N-25B 1/2" & 1/2" 1/2" x 1/2" Swivel MPT 25' 15" 20' Yellow
N12Y-N12N-50 1/2" & 1/2" None 50' 30" 40' Yellow
N12Y-N516N-50B 1/2" & 5/16" 1/2" x 1/4" Swivel MPT 50' 32.5" 40' Yellow
N12Y-N516N-50 1/2" & 5/16" None 25' 16.5" 20' Yellow
