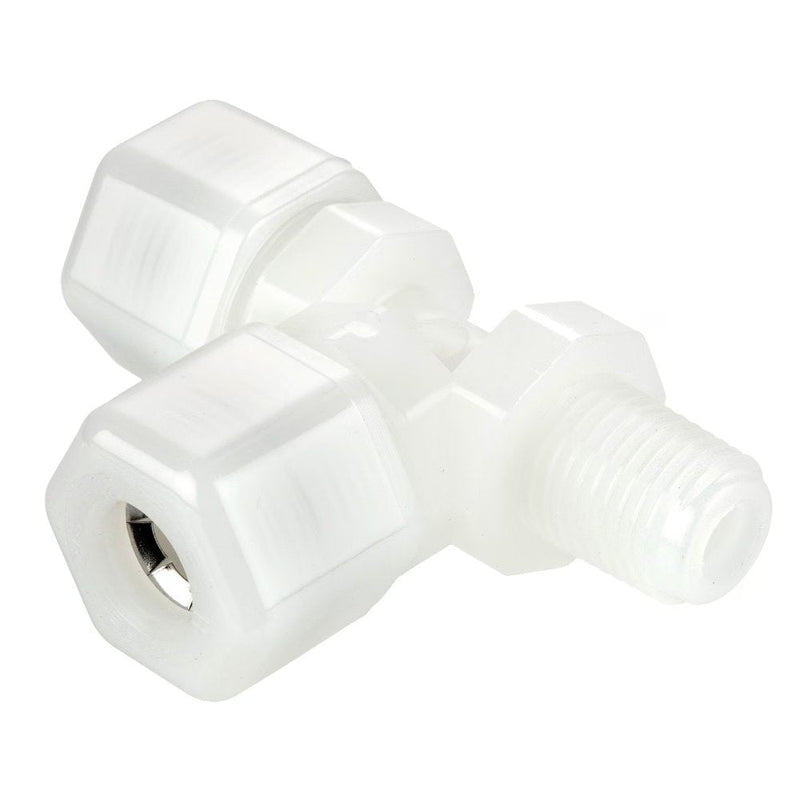

N4MR2 by Parker | Threaded Fitting | 1/4" Tube OD x 1/8" Female NPTF Thread | 11/16" Hex | 1.98" Length | Tee | Natural | Nylon

Save $2.43

$6.08

$6.08 - $6.08

$6.08

$3.65

$3.65 - $3.65

$3.65

by Parker Hannifin
Fast & Tite® Fittings:MR - Male Run Tee

Specifications for Variant SKU: N4MR2 Parker
Brand:	Fast & Tite®
Series:	MR Series
Shape (Orientation):	Tee
Material(s):	Nylon, 302 Stainless Steel
Special Properties:	Food Grade


Product Features:	Available in black polypropylene and white nylon White polypropylene available as a non-standard part 302 stainless steel grab ring Nitrile O-ring FDA compliant material NSF/ANSI-51
Markets:	Water Filtration Beverage Dispensing Life Science Bottling Semi-Conductor
Applications:	Water End-of-Arm Tooling Beverages Food Cooling Systems Vacuum
Temperature Range:	0° to +200° F (-17.8° to +93.3° C)
Compatible Tubing:	Thermoplastic Soft Metal Glass


Black Polypropylene Part Number	Natural Nylon Part Number	Nom. Tube O.D.	NPTF Thread Size	Hex (C)	M	N	Flow Diameter (D)
P4MR2	N4MR2	1/4"	1/8"	11/16"	1.09"	.89"	.170"
P6MR4	N6MR4	3/8"	1/4"	13/16"	1.30"	1.17"	.250"
P8MR6	-	1/2"	3/8"	1"	1.46"	1.28"	.375"

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
