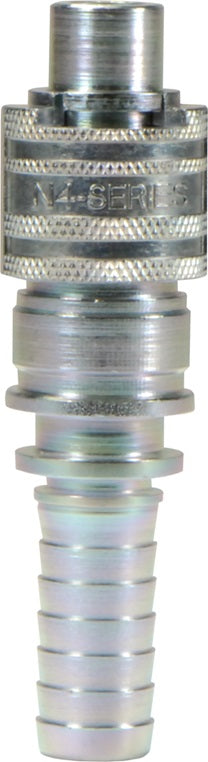

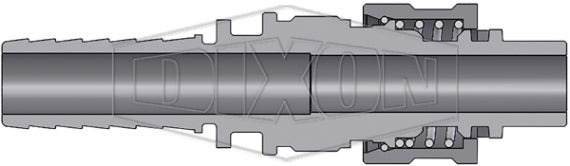

N4S6 by Dixon Valve | Pneumatic Quick Disconnect Coupling | Dix-Lock® N-Series | Hose Barb | 3/4" Hose ID x 1/2" Body Size | Plug | Steel

N4S6 by Dixon Valve | Pneumatic Quick Disconnect Coupling | Dix-Lock® N-Series | Hose Barb | 3/4" Hose ID x 1/2" Body Size | Plug | Steel

Save $1.46 Save $1.46
$13.17
$13.17 - $13.17
$13.17
$11.71
$11.71 - $11.71
$11.71

Dixon Valve & Coupling
Pneumatic Coupling: Dix-Lock N-Series Plug (Hose Barb)
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: N4S6 Dixon
Brand: Dix-Lock
Series: N-Series
Shape (Orientation): Straight
Ends Configuration: 3/4in Hose Barb, 1/2in Male MIL-C-3486 QD Interchange
Material(s): Plated Steel
Compatibility & Interchange:
  • Bowes Interchange Bayonet Style
  • Interchangeable with Bowes 51000-Series, National Series 'B', MacDonald Quick-Action, Campbell Single-Lock
  • Conforms to MIL-C-3486 and A-A-50431A standards
Construction:
  • Machined components are manufactured using solid bar stock.
  • Stainless steel retaining ring and spring maximize corrosion resistance and extend service life.
  • Steel componentry is plated using ROHS Compliant Trivalent Chrome.
  • Coupling sleeve constructed of cast zinc steel.
Safety Notes:
  • Operating pressure for couplings utilizing hose barb connections may be dramatically reduced to that of the hose rating and/or hose end connection combination. Consult hose manufacturer's catalog for hose end connection ratings. If in doubt, test under controlled conditions for suitability to application.
  • Dixon cannot assume liability for misapplication of production resulting in equipment down-time, lost production, and/or personal injury including death.
  • It is important to be safe when installing quick disconnect couplings into a pneumatic circuit. Never install a pneumatic coupling directly into an air tool, use a piece of hose that is at least 18" long, between the tool and the coupling, to prevent damage to the coupling. To protect the operator, safety devices, such as a safety check valve and safety cable should be installed in case there is a hose or coupling failure.
Additional Information:
Dix-Lock N-Series | Plug (Hose Barb)
Part
Number		 Coupling
Type		 Body
Size		 Hose ID Material Length Max.
OD		 Pressure Ratings for:
N3CS4 Plug/Male 3/8" 1/2" Steel 3.73"
(94.8mm)		 1.13"
(28.6mm)		 Steel Coupler & Steel Plug:
Max. Working: 500 PSI (35 bar)
Burst: 7,000 PSI (480 bar)
N4S3 Plug/Male 1/2" 3/8" Steel 4.36"
(110.7mm)		 1.4"
(35.6mm)		 Steel Coupler & Steel Plug:
Max. Working: 500 PSI (35 bar)
Burst: 11,000 PSI (755 bar)
N4S3-B Plug/Male 1/2" 3/8" Brass 4.36"
(110.7mm)		 1.4"
(35.6mm)		 Brass Coupler & Brass Plug:
Max. Working: 300 PSI (20 Bar)
Burst: 8,200 PSI (865 Bar)
N4S4 Plug/Male 1/2" 1/2" Steel 4.63"
(117.6mm)		 1.4"
(35.6mm)		 Steel Coupler & Steel Plug:
Max. Working: 500 PSI (35 bar)
Burst: 11,000 PSI (755 bar)
N4S4-B Plug/Male 1/2" 1/2" Brass 4.63"
(117.6mm)		 1.4"
(35.6mm)		 Brass Coupler & Brass Plug:
Max. Working: 300 PSI (20 Bar)
Burst: 8,200 PSI (865 Bar)
N4S6 Plug/Male 1/2" 3/4" Steel 4.77"
(121.2mm)		 1.4"
(35.6mm)		 Steel Coupler & Steel Plug:
Max. Working: 500 PSI (35 bar)
Burst: 11,000 PSI (755 bar)
N4S6-B Plug/Male 1/2" 3/4" Brass 4.77"
(121.2mm)		 1.4"
(35.6mm)		 Brass Coupler & Brass Plug:
Max. Working: 300 PSI (20 Bar)
Burst: 8,200 PSI (865 Bar)
N4S6-S Plug/Male 1/2" 3/4" 303 Stainless 4.77"
(121.2mm)		 1.4"
(35.6mm)		 303 S.S. Coupler & 303 S.S. Plug:
Max. Working: 500 PSI (35 Bar)
Burst: 12,600 PSI (865 Bar)
N4S6-SS Plug/Male 1/2" 3/4" 316 Stainless 4.77"
(121.2mm)		 1.4"
(35.6mm)		 -
N4S8 Plug/Male 1/2" 1" Steel 4.77"
(121.2mm)		 1.4"
(35.6mm)		 Steel Coupler & Steel Plug:
Max. Working: 500 PSI (35 bar)
Burst: 11,000 PSI (755 bar)
N4S8-B Plug/Male 1/2" 1" Brass 4.77"
(121.2mm)		 1.4"
(35.6mm)		 Brass Coupler & Brass Plug:
Max. Working: 300 PSI (20 Bar)
Burst: 8,200 PSI (865 Bar)
N4S8-S Plug/Male 1/2" 1" 303 Stainless 4.77"
(121.2mm)		 1.4"
(35.6mm)		 303 S.S. Coupler & 303 S.S. Plug:
Max. Working: 500 PSI (35 Bar)
Burst: 12,600 PSI (865 Bar)
N4S8-SS Plug/Male 1/2" 1" 316 Stainless 4.77"
(121.2mm)		 1.4"
(35.6mm)		 -
Dix-Lock N-Series | Coupler (Hose Barb)
Part
Number		 Coupling
Type		 Body
Size		 Hose ID Material Length Max.
OD		 Pressure Ratings for:
3NCS4 Socket/Female 3/8" 1/2" Steel 4.74"
(120.4mm)		 0.99"
(25.1mm)		 Steel Coupler & Steel Plug:
Max. Working: 500 PSI (35 bar)
Burst: 7,000 PSI (480 bar)
4NS3 Socket/Female 1/2" 3/8" Steel 4.54"
(115.3mm)		 1.4"
(35.6mm)		 Steel Coupler & Steel Plug:
Max. Working: 500 PSI (35 bar)
Burst: 11,000 PSI (755 bar)
4NS3-B Socket/Female 1/2" 3/8" Brass 4.54"
(115.3mm)		 1.4"
(35.6mm)		 Brass Coupler & Brass Plug:
Max. Working: 300 PSI (20 Bar)
Burst: 8,200 PSI (865 Bar)
4NS4 Socket/Female 1/2" 1/2" Steel 4.95"
(125.7mm)		 1.4"
(35.6mm)		 Steel Coupler & Steel Plug:
Max. Working: 500 PSI (35 bar)
Burst: 11,000 PSI (755 bar)
4NS4-B Socket/Female 1/2" 1/2" Brass 4.95"
(125.7mm)		 1.4"
(35.6mm)		 Brass Coupler & Brass Plug:
Max. Working: 300 PSI (20 Bar)
Burst: 8,200 PSI (865 Bar)
4NS6 Socket/Female 1/2" 3/4" Steel 4.95"
(125.7mm)		 1.4"
(35.6mm)		 Steel Coupler & Steel Plug:
Max. Working: 500 PSI (35 bar)
Burst: 11,000 PSI (755 bar)
4NS6-B Socket/Female 1/2" 3/4" Brass 4.95"
(125.7mm)		 1.4"
(35.6mm)		 Brass Coupler & Brass Plug:
Max. Working: 300 PSI (20 Bar)
Burst: 8,200 PSI (865 Bar)
4NS6-S Socket/Female 1/2" 3/4" 303 Stainless 4.95"
(125.7mm)		 1.4"
(35.6mm)		 303 S.S. Coupler & 303 S.S. Plug:
Max. Working: 500 PSI (35 Bar)
Burst: 12,600 PSI (865 Bar)
4NS6-SS Socket/Female 1/2" 3/4" 316 Stainless 4.95"
(125.7mm)		 1.4"
(35.6mm)		 -
4NS8 Socket/Female 1/2" 1" Steel 5.77"
(146.4mm)		 1.4"
(35.6mm)		 Steel Coupler & Steel Plug:
Max. Working: 500 PSI (35 bar)
Burst: 11,000 PSI (755 bar)
4NS8-B Socket/Female 1/2" 1" Brass 5.77"
(146.4mm)		 1.4"
(35.6mm)		 Brass Coupler & Brass Plug:
Max. Working: 300 PSI (20 Bar)
Burst: 8,200 PSI (865 Bar)
4NS8-S Socket/Female 1/2" 1" 303 Stainless 5.77"
(146.4mm)		 1.4"
(35.6mm)		 303 S.S. Coupler & 303 S.S. Plug:
Max. Working: 500 PSI (35 Bar)
Burst: 12,600 PSI (865 Bar)
4NS8-SS Socket/Female 1/2" 1" 316 Stainless 5.77"
(146.4mm)		 1.4"
(35.6mm)		 -
