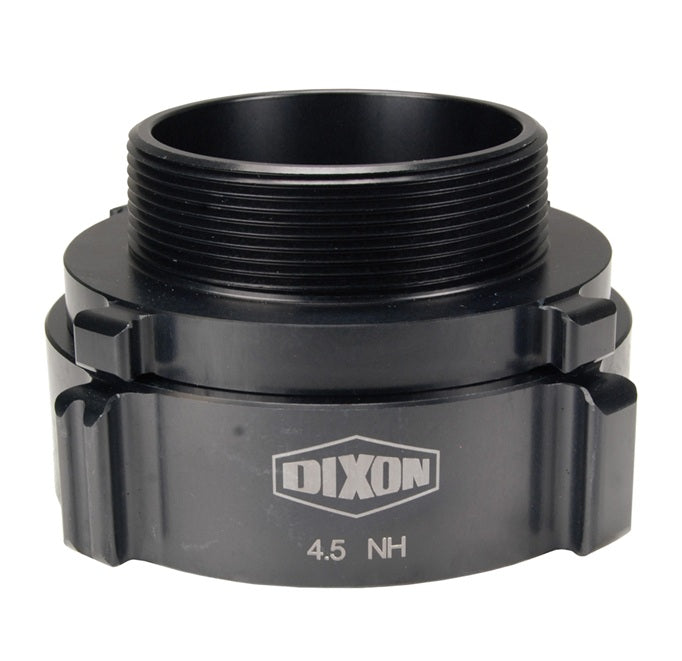

N54-45F40T Dixon Aluminum Female Swivel x Male Rigid Adapter - Style N54 - Rocker Lug - 4-1/2" Female NST(NH) x 4" Male NPT - Old Part #: ASM45F40T

N54-45F40T Dixon Aluminum Female Swivel x Male Rigid Adapter - Style N54 - Rocker Lug - 4-1/2" Female NST(NH) x 4" Male NPT - Old Part #: ASM45F40T

Save $150.50 Save $150.50
$376.25
$376.25 - $376.25
$376.25
$225.75
$225.75 - $225.75
$225.75

Dixon Fire Fittings
Adapters - Rocker Lug - Style N54 - Female Swivel x Male Rigid - Aluminum

Seamless aluminum extrusion, hardcoat anodized.
Specifications for Variant SKU: N54-45F40T Dixon
Shape (Orientation): Straight
Ends Configuration: 4-1/2in Female NST, 4in Male NPT
Material(s): Aluminum
Part Number Female Swivel Thread Male Rigid Thread Old Part #: Weight
(Lbs.)
N54-15F15F 1-1/2" Female NST(NH) 1-1/2" Male NST(NH) - 0.5000
N54-15F15T 1-1/2" Female NST(NH) 1-1/2" Male NPT ASM150F 0.5000
N54-15F25F 1-1/2" Female NST(NH) 2-1/2" Male NST(NH) - 0.9170
N54-15S15S 1-1/2" Female NPSH 1-1/2" Male NPSH - 0.5560
N54-15S15T 1-1/2" Female NPSH 1-1/2" Male NPT - 0.5180
N54-25F15F 2-1/2" Female NST(NH) 1-1/2" Male NST(NH) - 1.700
N54-25F15T 2-1/2" Female NST(NH) 1-1/2" Male NPT - 1.2600
N54-25F20T 2-1/2" Female NST(NH) 2" Male NPT ASM25F20T 1.2500
N54-25F25F 2-1/2" Female NST(NH) 2-1/2" Male NST(NH) - 1.2520
N54-25F25T 2-1/2" Female NST(NH) 2-1/2" Male NPT ASM250F 1.3500
N54-25F30T 2-1/2" Female NST(NH) 3" Male NPT ASM25F30T 1.4100
N54-30S30T 3" Female NPSH 3" Male NPT - 1.7990
N54-40F40T 4" Female NST(NH) 4" Male NPT ASM40F40T 4.4750
N54-40F60F 4" Female NST(NH) 6" Male NST(NH) - 5.8650
N54-45F40T 4-1/2" Female NST(NH) 4" Male NPT ASM45F40T 3.4900
N54-45F60T 4-1/2" Female NST(NH) 6" Male NPT - 5.9900
N54-60F60T 6" Female NST(NH) 6" Male NPT ASM60F60T 5.8990
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
