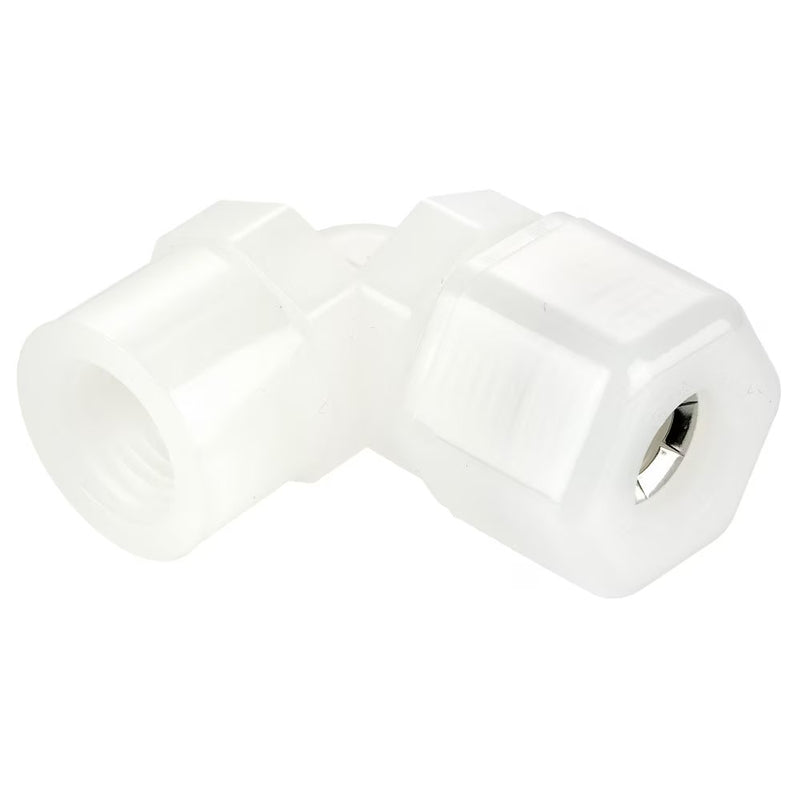

N5FE2 by Parker | Threaded Fitting | 5/16" Tube OD x 1/8" Female NPTF Thread | 11/16" Hex | 90° Elbow | Natural | Nylon

N5FE2 by Parker | Threaded Fitting | 5/16" Tube OD x 1/8" Female NPTF Thread | 11/16" Hex | 90° Elbow | Natural | Nylon

Save $2.05 Save $2.05
$5.12
$5.12 - $5.12
$5.12
$3.07
$3.07 - $3.07
$3.07

by Parker Hannifin
Fast & Tite® Fittings:FE - Female Elbow
Specifications for Variant SKU: N5FE2 Parker
Brand: Fast & Tite®
Series: FE Series
Shape (Orientation): 90° Elbow
Material(s): Nylon, 302 Stainless Steel
Seal Material(s): Buna-N/Nitrile Rubber
Special Properties: Food Grade
Product Features:
  • Available in black polypropylene and white nylon
  • White polypropylene available as a non-standard part
  • 302 stainless steel grab ring
  • Nitrile O-ring
  • FDA compliant material
  • NSF/ANSI-51
Markets:
  • Water Filtration
  • Beverage Dispensing
  • Life Science
  • Bottling
  • Semi-Conductor
Applications:
  • Water
  • End-of-Arm Tooling
  • Beverages
  • Food
  • Cooling Systems
  • Vacuum
Temperature Range: 0° to +200° F (-17.8° to +93.3° C)
Compatible Tubing:
  • Thermoplastic
  • Soft Metal
  • Glass
Black Polypropylene Part Number Natural Nylon Part Number Nom. Tube O.D. NPTF Thread Size Hex (C) M N Flow Diameter (D)
P4FE2 N4FE2 1/4" 1/8" 11/16" 1.10" .84" .170"
P4FE4 N4FE4 1/4" 1/4" 11/16" 1.10" .94" .170"
- N5FE2 5/16" 1/8" 11/16" 1.10" .84" .193"
P6FE4 N6FE4 3/8" 1/4" 13/16" 1.30" 1.06" .250"
P6FE6 N6FE6 3/8" 3/8" 13/16" 1.30" 1.03" .250"
P8FE6 N8FE6 1/2" 3/8" 1" 1.50" 1.16" .375"
P8FE8 N8FE8 1/2" 1/2" 1" 1.50" 1.27" .375"
P10FE8 N10FE8 5/8" 1/2" 1-1/8" 1.70" 1.34" .500"
Parker Fluid System Connectors Division

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
