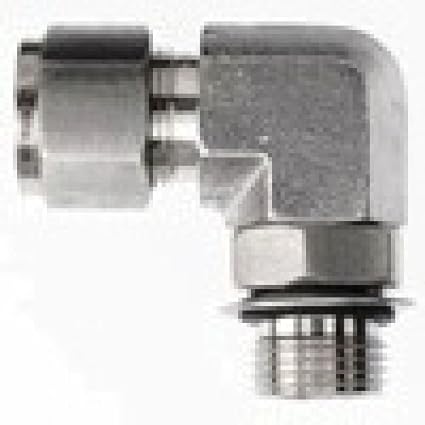

N6801-04-04-NWO-SS by Brennan Inc. | -04 Instrumentation Fitting x -04 Male Adjustable O-Ring Boss | 90° Elbow | Stainless Steel

N6801-04-04-NWO-SS by Brennan Inc. | -04 Instrumentation Fitting x -04 Male Adjustable O-Ring Boss | 90° Elbow | Stainless Steel

$42.12 - $42.12
$42.12
$46.33
$46.33 - $46.33
$46.33

Brennan Inc.
Double Ferrule Tube Fittings: N6801 - Instrumentation Fitting x Male Adjustable O-Ring Boss 90° Elbow
Specifications for Variant SKU: N6801-04-04-NWO-SS Brennan
Shape (Orientation): 90 Degree
Ends Configuration: 1/4in Tube Compression , 1/4in Male O-Ring Boss
Material(s): Stainless Steel
Part Number Material T Tube OD P ISO Male AX B C D E Min. F FX A/F G A/F HX HY U O-Ring Part No.
N6801-04-04-NWO-SS Stainless Steel 1/4" 7/16-20" 28.5mm 9.9mm 17.8mm 15.3mm 4.8mm 14mm 14mm 14mm 21.0mm 28.5mm 16.5mm 4001-04
N6801-04-06-NWO-SS Stainless Steel 1/4" 9/16-18" 30.5mm 11.2mm 17.8mm 15.3mm 4.8mm 16mm 17mm 14mm 23.1mm 32.3mm 20.0mm 4001-06
N6801-06-04-NWO-SS Stainless Steel - - - - - - - - - - - - - -
N6801-06-06-NWO-SS Stainless Steel 3/8" 9/16-18" 32.0mm 11.2mm 19.3mm 16.8mm 7.1mm 16mm 17mm 17mm 24.6mm 32.3mm 20.0mm 4001-06
N6801-06-08-NWO-SS Stainless Steel 3/8" 3/4-16" 34.8mm 12.7mm 19.3mm 16.8mm 7.1mm 22mm 22mm 17mm 27.4mm 37.8mm 25.6mm 4001-08
N6801-08-08-NWO-SS Stainless Steel 1/2" 3/4-16" 37.6mm 12.7mm 21.8mm 22.9mm 10.4mm 22mm 22mm 22mm 27.4mm 37.8mm 25.6mm 4001-08
N6801-10-10-NWO-SS Stainless Steel 5/8" 7/16-14" 39.6mm 14.3mm 21.8mm 24.4mm 12.7mm 24mm 25mm 25mm 29.50mm 43.40mm 29.50mm 4001-10
N6801-12-12-NWO-SS Stainless Steel 3/4" 11/16-12" 41.4mm 16.8mm 21.8mm 24.4mm 15.80mm 27mm 32mm 28.5mm 31.2mm 48.8mm 36.6mm 4001-12
N6801-16-16-NWO-SS Stainless Steel 1" 15/16-12" 50.5mm 16.8mm 26.4mm 31.2mm 22.3mm 35mm 35mm 38mm 38.4mm 53.6mm 44.0mm 4001-16
