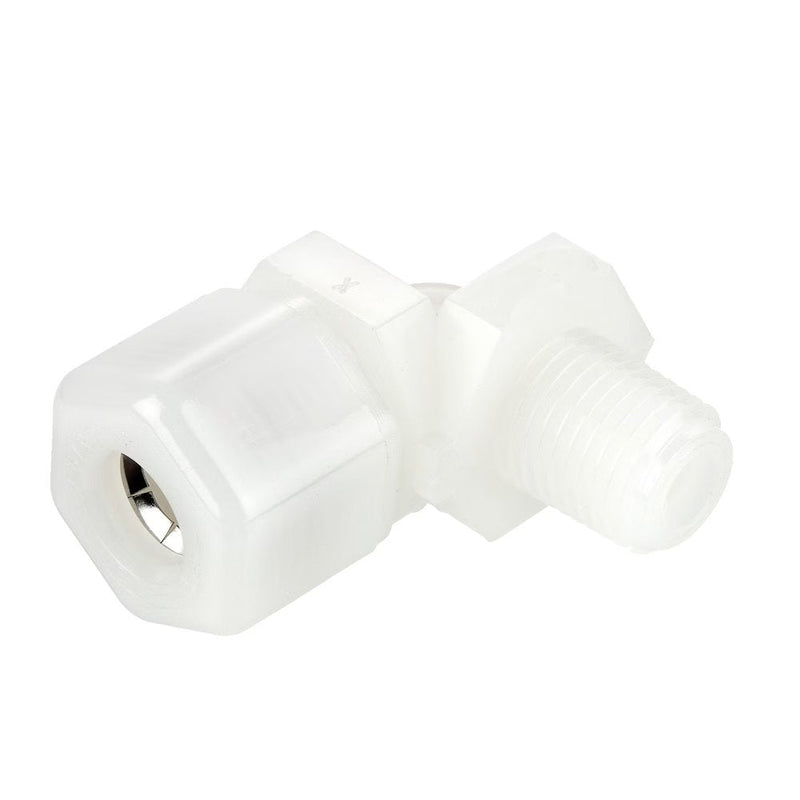

N6ME12 by Parker | Threaded Fitting | 3/8" Tube OD x 3/4" Male NPTF Thread | 1-3/16" Hex | 90° Elbow | Natural | Nylon

N6ME12 by Parker | Threaded Fitting | 3/8" Tube OD x 3/4" Male NPTF Thread | 1-3/16" Hex | 90° Elbow | Natural | Nylon

Save $1.84 Save $1.84
$4.60
$4.60 - $4.60
$4.60
$2.76
$2.76 - $2.76
$2.76

by Parker Hannifin
Fast & Tite® Fittings:ME - Male Elbow
Specifications for Variant SKU: N6ME12 Parker
Brand: Fast & Tite®
Series: ME Series
Shape (Orientation): 90° Elbow
Material(s): Nylon, 302 Stainless Steel
Seal Material(s): Buna-N/Nitrile Rubber
Special Properties: Food Grade
Product Features:
  • Available in black polypropylene and white nylon
  • White polypropylene available as a non-standard part
  • 302 stainless steel grab ring
  • Nitrile O-ring
  • FDA compliant material
  • NSF/ANSI-51
Markets:
  • Water Filtration
  • Beverage Dispensing
  • Life Science
  • Bottling
  • Semi-Conductor
Applications:
  • Water
  • End-of-Arm Tooling
  • Beverages
  • Food
  • Cooling Systems
  • Vacuum
Temperature Range: 0° to +200° F (-17.8° to +93.3° C)
Compatible Tubing:
  • Thermoplastic
  • Soft Metal
  • Glass
Black Polypropylene Part Number Natural Nylon Part Number Nom. Tube O.D. NPTF Thread Size Hex (C) M N Flow Diameter (D)
P4ME2 N4ME2 1/4" 1/8" 3/4" 1.06" .81" .170"
P4ME4 N4ME4 1/4" 1/4" 3/4" 1.06" 1.02" .170"
P4ME6 N4ME6 1/4" 3/8" 3/4" 1.06" 1.02" .170"
P5ME2 - 5/16" 1/8" 3/4" 1.06" .81" .193"
P5ME4 N5ME4 5/16" 1/4" 3/4" 1.06" 1.02" .193"
P5ME6 - 5/16" 3/8" 3/4" 1.06" 1.02" .193"
P6ME4 N6ME4 3/8" 1/4" 7/8" 1.28" 1.12" .250"
P6ME6 N6ME6 3/8" 3/8" 7/8" 1.28" 1.12" .250"
P6ME8 N6ME8 3/8" 1/2" 1" 1.28" 1.34" .250"
P6ME12 N6ME12 3/8" 3/4" 1-3/16" 1.06" 1.02" .170"
P8ME4 N8ME4 1/2" 1/4" 1-1/16" 1.48" 1.22" .250"
P8ME6 N8ME6 1/2" 3/8" 1-1/16" 1.56" 1.21" .375"
P8ME8 N8ME8 1/2" 1/2" 1-1/16" 1.56" 1.34" .375"
P8ME12 - 1/2" 3/4" 1-1/8" 1.50" 1.40" .375"
P10ME8 N10ME8 5/8" 1/2" 1-3/16" 1.72" 1.40" .500"
