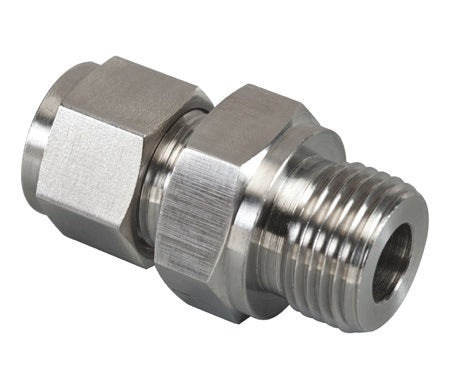

N7013-04-04-SS by Brennan Inc. | -04 Instrumentation Fitting x -04 Male BSPP Form B | Straight | Stainless Steel

N7013-04-04-SS by Brennan Inc. | -04 Instrumentation Fitting x -04 Male BSPP Form B | Straight | Stainless Steel

Save $12.89 Save $12.89
$32.22
$32.22 - $32.22
$32.22
$19.33
$19.33 - $19.33
$19.33

Brennan Inc.
Instrumentation Fittings:Instrumentation Fitting x Male BSPP Form B Straight

Specifications for Variant SKU: N7013-04-04-SS Brennan
Shape (Orientation): Straight
Ends Configuration: 1/4in Tube Compression , 1/4in Male BSPP
Material(s): Stainless Steel
Part Number Material T Tube OD P ISO M A B C D E F A/F Fd G A/F H
N7013-02-02-SS Stainless Steel 1/8" 1/8" 1.22" 0.28" 0.61" 0.52" 0.09" 0.56" 0.53" 0.43" 0.95"
N7013-02-04-SS Stainless Steel 1/8" 1/4" 1.40" 0.44" 0.61" 0.52" 0.09" 0.75" 0.71" 0.43" 1.13"
N7013-04-02-SS Stainless Steel 1/4" 1/8" 1.27" 0.28" 0.70" 0.61" 0.19" 0.56" 0.53" 0.56" 0.98"
N7013-04-04-SS Stainless Steel 1/4" 1/4" 1.48" 0.44" 0.70" 0.61" 0.19" 0.75" 0.71" 0.56" 1.19"
N7013-04-06-SS Stainless Steel - - - - - - - - - - -
N7013-04-08-SS Stainless Steel - - - - - - - - - - -
N7013-06-02-SS Stainless Steel - - - - - - - - - - -
N7013-06-04-SS Stainless Steel 3/8" 1/4" 1.58" 0.44" 0.80" 0.70" 0.23" 0.75" 0.71" 0.67" 1.25"
N7013-06-06-SS Stainless Steel 3/8" 3/8" 1.63" 0.44" 0.80" 0.70" 0.28" 0.87" 0.86" 0.67" 1.30"
N7013-06-08-SS Stainless Steel 3/8" 1/2" 1.86" 0.56" 0.80" 0.70" 0.28" 1.06" 1.02" 0.67" 1.53"
N7013-08-04-SS Stainless Steel 1/2" 1/4" 1.68" 0.44" 0.86" 0.90" 0.23" 0.83" 0.71" 0.87" 1.28"
N7013-08-06-SS Stainless Steel 1/2" 3/8" 1.70" 0.44" 0.86" 0.90" 0.31" 0.87" 0.86" 0.87" 1.30"
N7013-08-08-SS Stainless Steel 1/2" 1/2" 1.93" 0.56" 0.86" 0.90" 0.41" 1.06" 1.02" 0.87" 1.53"
N7013-12-08-SS Stainless Steel 3/4" 1/2" 1.97" 0.56" 0.91" 1.01" 0.47" 1.06" 1.02" 1.12" 1.53"

N7013-04-02-B Brass 1/4" 1/8" 1.27" 0.28" 0.70" 0.61" 0.19" 0.56" 0.53" 0.56" 0.98"
N7013-04-04-B Brass 1/4" 1/4" 1.48" 0.44" 0.70" 0.61" 0.19" 0.75" 0.71" 0.56" 1.19"
