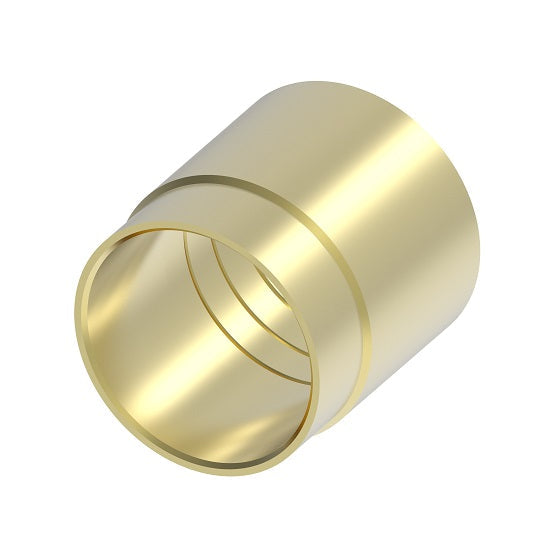

NC-8-B Weatherhead by Danfoss | Everswage | Swage Collar | 13/32" Hose ID | Brass
NC-8-B Weatherhead by Danfoss | Everswage | Swage Collar | 13/32" Hose ID | Brass
NC-8-B Weatherhead by Danfoss | Everswage | Swage Collar | 13/32" Hose ID | Brass
NC-8-B Weatherhead by Danfoss | Everswage | Swage Collar | 13/32" Hose ID | Brass

NC-8-B Weatherhead by Danfoss | Everswage | Swage Collar | 13/32" Hose ID | Brass

$2.80 - $2.80
$2.80
$2.80 - $2.80
$2.80

Weatherhead by Danfoss
Everswage Swage Collar for Everflex Hose
Specifications for Variant SKU: NC-8-B Danfoss
Brand: Weatherhead
Series: Everswage Series
Material(s): Brass
Compatible with the following Series: Everflex S-Series  |   Everflex SC-Series
About:
  • Everswage hose ends are permanently attached to Everflex Smooth Bore hose using a swaging process.
  • The unique design of the Everswage collar allows a hose assembly fabricator to slide several collars at once on the hose. This significantly reduces the time required to fabricate an assembly.
Compatible Hose:
  • For use with Everflex Hoses STW, SCTW, B, M, S, SC
Warning:
  • Selection of the proper end fitting for the hose end application is essential to the proper operation and safe use of the hose and related equipment. Inadequate attention to the selection of the end fittings for your application can result in leaking or the hose end blowing off the hose, leading to serious personal injury, death or property damage.
Part Number
Brass		 Part Number
Carbon Steel		 Part Number
Stainless Steel		 Part Number
316 Stainless Steel		 Hose I.D. JIC Size
NC-4-B NC-4-C NC-4-S NC-4-316 3/16" 1/4"
NC-5-B NC-5-C NC-5-S - 1/4" 5/16"
NC-6-B NC-6-C NC-6-S - 5/16" 3/8"
NC-8-B NC-8-C NC-8-S - 13/32" 1/2"
NC-10-B NC-10-C NC-10-S - 1/2" 5/8"
NC-12-B NC-12-C NC-12-S - 5/8" 3/4"
NC-16-B NC-16-C NC-16-S - 7/8" 1"
- NC-16Z-C NC-16Z-S - 7/8" 1"
- NC-20Z-C - - 1-1/8" 1-1/4"

Note: Drawings may differ from actual parts.
