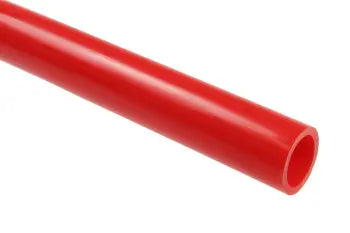

NC0650-100R by Coilhose | Tubing | 3/8" OD x .275" ID | .050" Wall thickness | Red | Nylon | 100ft

NC0650-100R by Coilhose | Tubing | 3/8" OD x .275" ID | .050" Wall thickness | Red | Nylon | 100ft

Save $50.37 Save $50.37
$125.92
$125.92 - $125.92
$125.92
$75.55
$75.55 - $75.55
$75.55
Coilhose Pneumatics - Plastic Tubing - Nylon Tubing - 3/8" OD x .275" ID
Specifications for Variant SKU: NC0650-100R Coilhose
Hose Color(s): Red
Material(s): Nylon
Overview:
  • Coilhose Pneumatics offers high quality Nylon 11 Tubing for applications requiring low density, lightweight toughness, flexibility and chemical resistance. Its dimensional stability makes it compatible with . Lengths of 100 feet are packaged in plastic bags; longer lengths are on reels.
Features:

Temperature Range: -60° F to 200° F Vacuum Rating: To 28" Hg.
Diameter Tolerances: .0.002"; -0.004" All inch sizes
+0.051 mm; -.1 mm All Metric sizes		 Hardness: 78 Rockwell R
Working Pressure: 4 to 1 Safety Factor Compliance: Meets UL94HB
UV Stabilized: Yes

Part Number
100ft Length		 Part Number
500ft Length		 Color O.D. x I.D. Wall Thickness WorkingPressure at 75° F
NC0650-100Y NC0650-500Y Yellow 3/8" x .275" .050" 250 PSI
NC0650-100R NC0650-500R Red
NC0650-100N NC0650-500N Natural
NC0650-100G NC0650-500G Green
NC0650-100B NC0650-500B Blue
NC0650-100K NC0650-500K Black
