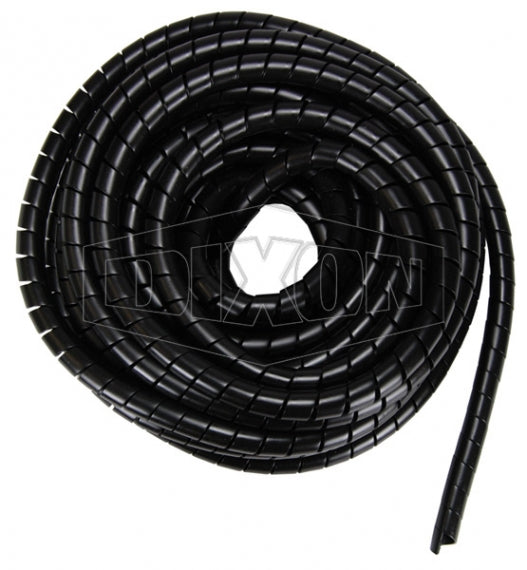

NFSGX125 by Dixon Valve | Spiral Hose and Cable Protection | Standard | 4.57" Nominal ID | 40ft Coil Length

NFSGX125 by Dixon Valve | Spiral Hose and Cable Protection | Standard | 4.57" Nominal ID | 40ft Coil Length

Save $45.49 Save $45.49
$409.37
$409.37 - $409.37
$409.37
$363.88
$363.88 - $363.88
$363.88

Dixon Valve & Coupling
Maintenance and Repair | Spiral Hose and Cable Protection

Used in mining, quarrying, forestry, offshore industries, and most hydraulic hose applications.
Specifications for Variant SKU: NFSGX125 Dixon
Features:
  • Crush and high abrasion resistance.
  • Virgin high density polyethylene.
  • Chemical and UV ray resistant.
  • Self-lubricating to reduce hose wear.
  • Easy to install on-site.
  • Smooth radius on all edges.
  • Can be used on single or multiple hose bundles.
  • Spiral guard I.D. is equal to the guard at rest.
  • Sold in coil lengths only.
Flame Retardant Product:
  • Flame retardant, self extinguishing, anti static.
  • Color: black
  • Temperature range: -148°F to 262°F (-100°C to 128°C)
  • Approval: Approved by MSHA #1C-282
Standard Product:
  • Not flame retardant.
  • Temperature range: -40°F to 240°F (-40°C to 115°C)
Flame Retardant
Part Number		 Standard
Part Number		 Nominal ID Coil Length
FRSGX16 NFSGX16 0.50" 66ft
FRSGX20 NFSGX20 0.62" 66ft
FRSGX25 NFSGX25 0.875" 66ft
FRSGX32 NFSGX32 1.00" 66ft
FRSGX40 NFSGX40 1.50" 66ft
FRSGX50 NFSGX50 1.75" 66ft
FRSGX63 NFSGX63 2.00" 66ft
FRSGX75 NFSGX75 2.63" 66ft
FRSGX90 NFSGX90 3.00" 66ft
FRSGX110 NFSGX110 4.00" 40ft Flame Retardant
33ft Standard
- NFSGX125 4.57" 40ft
- NFSGX140 5.00" 27ft
- NFSGX160 5.87" 20ft
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
