NJC-20-C Weatherhead by Danfoss | Everswage | Female 37° JIC Short Collar for Everflex Hose | 1-1/8" Hose Barb x 1-1/4" Female 37° JIC | Carbon Steel
NJC-20-C Weatherhead by Danfoss | Everswage | Female 37° JIC Short Collar for Everflex Hose | 1-1/8" Hose Barb x 1-1/4" Female 37° JIC | Carbon Steel
NJC-20-C Weatherhead by Danfoss | Everswage | Female 37° JIC Short Collar for Everflex Hose | 1-1/8" Hose Barb x 1-1/4" Female 37° JIC | Carbon Steel
NJC-20-C Weatherhead by Danfoss | Everswage | Female 37° JIC Short Collar for Everflex Hose | 1-1/8" Hose Barb x 1-1/4" Female 37° JIC | Carbon Steel

NJC-20-C Weatherhead by Danfoss | Everswage | Female 37° JIC Short Collar for Everflex Hose | 1-1/8" Hose Barb x 1-1/4" Female 37° JIC | Carbon Steel

$38.52 - $38.52
$38.52
$38.52 - $38.52
$38.52

Weatherhead by Danfoss

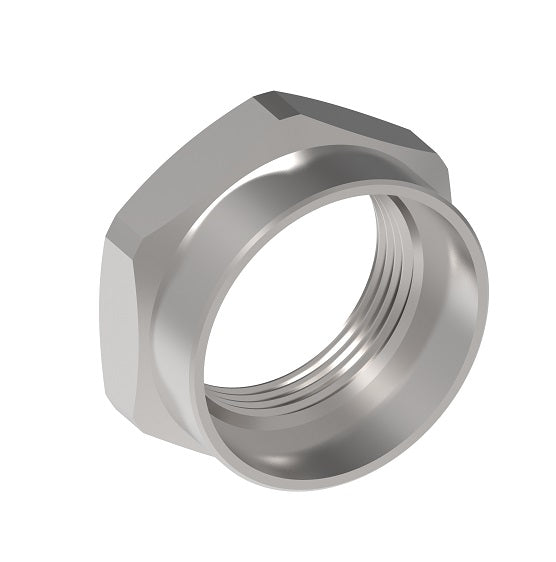

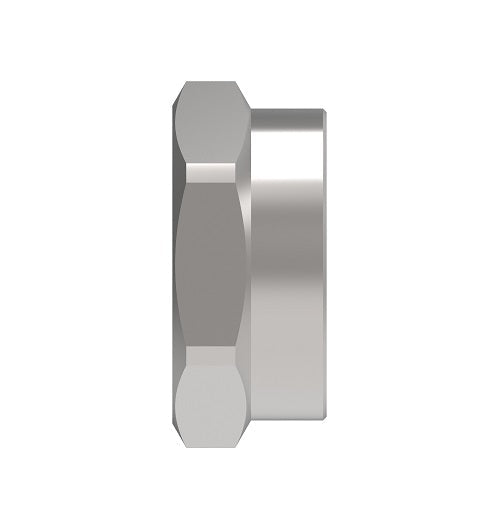

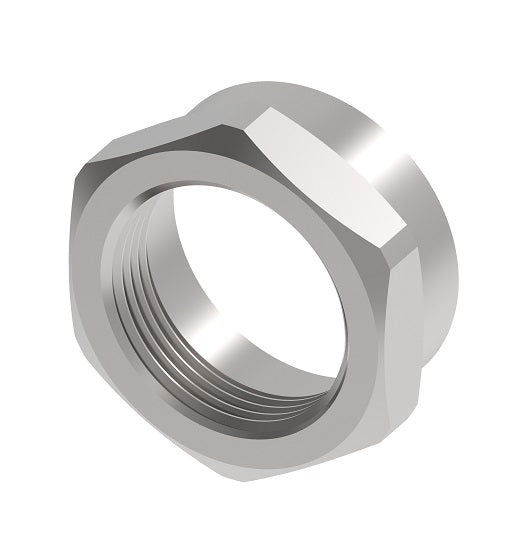

Everswage Crimp Fitting for Everflex Hose - Female 37° JIC Short Collar - Straight
Specifications for Variant SKU: NJC-20-C Danfoss
Brand: Weatherhead
Series: Everswage Series
Shape (Orientation): Straight
Ends Configuration: 1-1/8in Hose Barb, 1-1/4in Female JIC
Material(s): Carbon Steel
Compatible with the following Series: Everflex S-Series  |   Everflex SC-Series
About:
  • Everswage hose ends are permanently attached to Everflex Smooth Bore hose using a swaging process.
  • The unique design of the Everswage collar allows a hose assembly fabricator to slide several collars at once on the hose. This significantly reduces the time required to fabricate an assembly.
Note:
  • The operating pressure of 1/2" I.D. hoses are lowered to 1500 psi, and 5/8" I.D. hoses are lowered to 1250 psi when BRASS Everswage fittings are used.
Compatible Hose:
  • For use with Everflex Hose Series S, SC
Warning:
  • Selection of the proper end fitting for the hose end application is essential to the proper operation and safe use of the hose and related equipment. Inadequate attention to the selection of the end fittings for your application can result in leaking or the hose end blowing off the hose, leading to serious personal injury, death or property damage.
Part Number
Brass		 Part Number
Carbon Steel		 Part Number
Stainless Steel		 Part Number
316 Stainless Steel		 Hose I.D. JIC Size
NJC-4-B NJC-4-C NJC-4-S NJC-4-316 3/16" 1/4"
NJC-5-B NJC-5-C NJC-5-S - 1/4" 5/16"
NJC-6-B NJC-6-C NJC-6-S - 5/16" 3/8"
NJC-8-B NJC-8-C NJC-8-S - 13/32" 1/2"
NJC-10-B NJC-10-C NJC-10-S - 1/2" 5/8"
NJC-12-B NJC-12-C NJC-12-S - 5/8" 3/4"
NJC-16-B NJC-16-C NJC-16-S - 7/8" 1"
NJC-20-B NJC-20-C NJC-20-S - 1-1/8" 1-1/4"

Note: Drawings may differ from actual parts.
