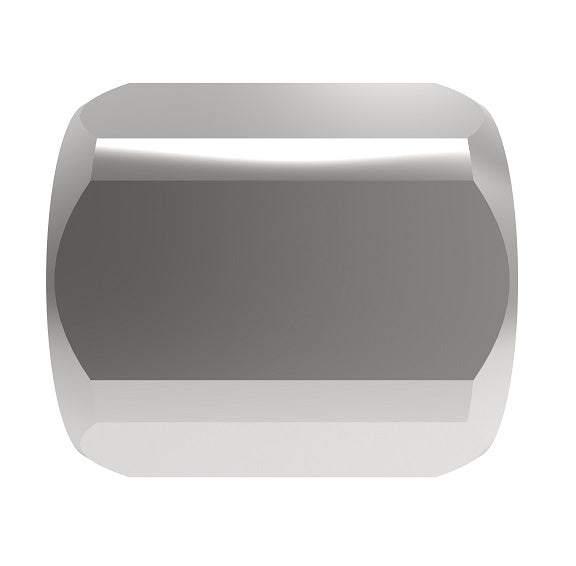

NNJ-16-C Weatherhead by Danfoss | Everswage | Female 37° JIC Nut for Everflex Hose | 7/8" Hose ID x 1" Female 37° JIC | Carbon Steel

NNJ-16-C Weatherhead by Danfoss | Everswage | Female 37° JIC Nut for Everflex Hose | 7/8" Hose ID x 1" Female 37° JIC | Carbon Steel

Name: NNJ-16-C Weatherhead by Danfoss | Everswage | Female 37° JIC Nut for Everflex Hose | 7/8" Hose ID x 1" Female 37° JIC | Carbon Steel
Brand: Danfoss/Eaton
SKU: NNJ-16-C Danfoss
Price: 7.74 USD
Availability: InStock

$7.74 - $7.74

$7.74

$7.74 - $7.74

$7.74

Weatherhead by Danfoss
Everswage Crimp Fitting for Everflex Hose - Female 37° JIC Nut - Straight

Quantity

Specifications for Variant SKU: NNJ-16-C Danfoss
Brand:	Weatherhead
Series:	Everswage Series
Material(s):	Carbon Steel
Compatible with the following Series:	Everflex S-Series \| Everflex SC-Series

About:
Everswage hose ends are permanently attached to Everflex Smooth Bore hose using a swaging process. The unique design of the Everswage collar allows a hose assembly fabricator to slide several collars at once on the hose. This significantly reduces the time required to fabricate an assembly.
Note:
The operating pressure of 1/2" I.D. hoses are lowered to 1500 psi, and 5/8" I.D. hoses are lowered to 1250 psi when BRASS Everswage fittings are used.
Compatible Hose:
For use with Everflex Hose Series S, SC
Warning:
Selection of the proper end fitting for the hose end application is essential to the proper operation and safe use of the hose and related equipment. Inadequate attention to the selection of the end fittings for your application can result in leaking or the hose end blowing off the hose, leading to serious personal injury, death or property damage.

Part Number Brass	Part Number Carbon Steel	Part Number Stainless Steel	Part Number 316 Stainless Steel	Hose I.D.	JIC Size
NNJ-4-B	NNJ-4-C	NNJ-4-S	NNJ-4-316	3/16"	1/4"
NNJ-5-B	NNJ-5-C	NNJ-5-S	-	1/4"	5/16"
NNJ-6-B	NNJ-6-C	NNJ-6-S	-	5/16"	3/8"
NNJ-8-B	NNJ-8-C	NNJ-8-S	-	13/32"	1/2"
NNJ-10-B	NNJ-10-C	NNJ-10-S	-	1/2"	5/8"
NNJ-12-B	NNJ-12-C	NNJ-12-S	-	5/8"	3/4"
NNJ-16-B	NNJ-16-C	-	-	7/8"	1"
NNJ-20-B	NNJ-20-C	NNJ-20-S	-	1-1/8"	1-1/4"

Note: Drawings may differ from actual parts.
