NS-04X100 Alfagomma by Kuriyama | Hose Protector | Nylon Sleeve Guard | 1.2500" Nominal Flat Size | Fits Hose OD Sizes: 0.48" - 0.70" | 100ft Coil Length

NS-04X100 Alfagomma by Kuriyama | Hose Protector | Nylon Sleeve Guard | 1.2500" Nominal Flat Size | Fits Hose OD Sizes: 0.48" - 0.70" | 100ft Coil Length

Save $32.08 Save $32.08
$112.27
$112.27 - $112.27
$112.27
$80.19
$80.19 - $80.19
$80.19

Kuriyama of America Inc.
Alfagomma | Hose Protector | Nylon Sleeve Guard

A unique tubular black woven product provides ideal physical protection against abrasion and other external conditions found in many hydraulic hose applications.
Specifications for Variant SKU: NS-04X100 Kuriyama
Brand: Alfagomma
Material(s): Nylon
Features:
  • Extends the life of your hose assemblies.

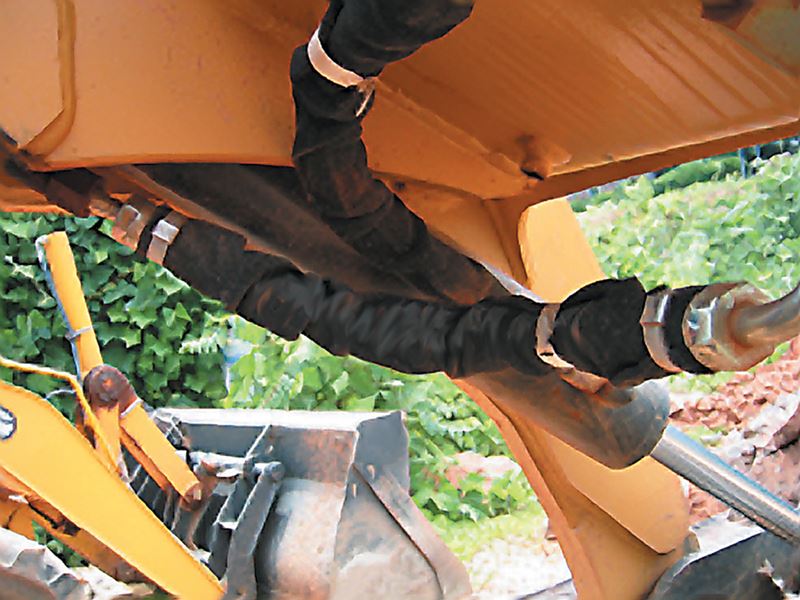

  • This sleeving serves as a means of bundling several hydraulic hoses together for further protection and clean routing.
  • Withstands temperatures of +250°F (+121°C) and has MSHA acceptance, while maintaining its flexibility in extreme cold applications.
Notes:
  • "Nominal Flat Size" refers to the width of the sleeving when flat, radius to radius
  • It is recommended that the ends of the sleeves be heated after cutting to resist fraying. For secure fastening, sleeves are often band clamped or tied with nylon ties.
Part Number Nominal Flat Size(in) Range of Hose OD's for this size Round ID(in) Coil Size (ft) Weight (lbs/coil)
NS-04X100 1.2500" 0.48" - 0.70" 0.796" 100ft 2.99 Lbs
NS-06X100 1.5000" 0.61" - 0.84" 0.955" 100ft 3.02 Lbs
NS-08X100 1.8750" 0.77" - 0.97" 1.194" 100ft 4.37 Lbs
NS-10X100 1.9375" 0.93" - 1.11" 1.234" 100ft 4.12 Lbs
NS-12X100 2.1250" 1.09" - 1.27" 1.353" 100ft 4.11 Lbs
NS-16X100 2.5625" 1.40" - 1.56" 1.632" 100ft 2.72 Lbs
NS-20X100 3.3125" 1.71" - 1.96" 2.109" 100ft 3.58 Lbs
NS-24X100 3.8125" 1.99" - 2.26" 2.428" 100ft 4.17 Lbs
NS-32X100 4.5625" 2.52" - 2.79" 2.906" 100ft 4.92 Lbs
