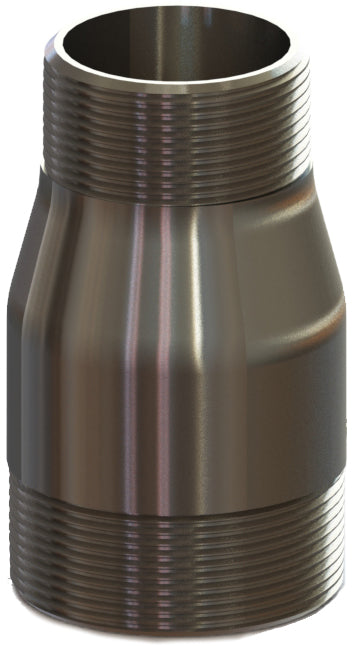

NS 12-8 by Campbell Fittings | Reducing Nipple | 3" Male NPT Thread x 2" Male NPT Thread | Carbon Steel

NS 12-8 by Campbell Fittings | Reducing Nipple | 3" Male NPT Thread x 2" Male NPT Thread | Carbon Steel

Save $30.24 Save $30.24
$75.60
$75.60 - $75.60
$75.60
$45.36
$45.36 - $45.36
$45.36

by Campbell
Toe Nipples and Reducing Nipples:NS Reducing Nipple
Specifications for Variant SKU: NS 12-8 Campbell Fittings
Series: NS Series
Shape (Orientation): Straight
Ends Configuration: 3in Male NPT, 2in Male NPT
Material(s): Carbon Steel
Recommended Use:
  • Liquid, bulk handling, low pressure air
Recommended Hose Attachments:
  • Sleeves
  • Preformed Bands Clamps
Features and Benefits:
  • Maximum number of serrations for maximum holding power
  • Long lead serration for easier hose insertion
  • Formed hex wrench area on 3/4" through 1-1/2" combination nipples for easier installation
Part Number NPT x NPT Size
NS 3-2 3/4" x 1/2" 3/4" x 1/2"
NS 4-3 1" x 3/4" 1" x 3/4"
NS 5-4 1-1/4" x 1" 1-1/4" x 1"
NS 6-5 1-1/2" x 1-1/4" 1-1/2" x 1-1/4"
NS 8-6 2" x 1-1/2" 2" x 1-1/2"
NS 10-8 2-1/2" x 2" 2-1/2" x 2"
NS 12-8 3" x 2" 3" x 2"
NS 12-10 3" x 2-1/2" 3" x 2-1/2"
NS 16-12 4" x 3" 4" x 3"
