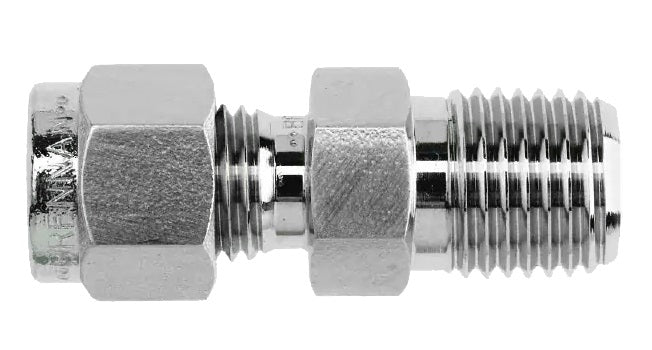

NS2404-04-04-SS by Brennan Inc. | -04 Instrumentation Fitting Single Ferrule x -04 Male NPT | Straight | Stainless Steel

NS2404-04-04-SS by Brennan Inc. | -04 Instrumentation Fitting Single Ferrule x -04 Male NPT | Straight | Stainless Steel

Save $10.83 Save $10.83
$27.08
$27.08 - $27.08
$27.08
$16.25
$16.25 - $16.25
$16.25

Brennan Inc.
Single Ferrule Tube Fittings: NS2404 - Instrumentation Fitting (Single Ferrule) x Male NPT Straight
Specifications for Variant SKU: NS2404-04-04-SS Brennan
Shape (Orientation): Straight
Ends Configuration: 1/4in Tube Compression , 1/4in Male NPT
Material(s): Stainless Steel
Part Number Material T Tube OD P NPT Male A
mm		 B
mm		 C
mm		 D
mm		 E Min.
mm		 F A/F
mm		 G A/F
mm		 H
mm
NS2404-02-02-SS Stainless Steel 1/8" 1/8" 30.5mm 9.60mm 15.30mm 12.70mm 2.40mm 11mm 11mm 23.9mm
NS2404-02-04-SS Stainless Steel 1/8" 1/4" 35.6mm 14.30mm 15.30mm 12.70mm 2.40mm 14mm 11mm 29.0mm
NS2404-04-02-SS Stainless Steel 1/4" 1/8" 32.8mm 9.60mm 17.80mm 15.30mm 4.8mm 14mm 14mm 25.4mm
NS2404-04-04-SS Stainless Steel 1/4" 1/4" 37.8mm 14.30mm 17.80mm 15.30mm 4.8mm 14mm 14mm 30.5mm
NS2404-04-06-SS Stainless Steel 1/4" 3/8" 38.4mm 14.30mm 17.80mm 15.30mm 4.8mm 19mm 14mm 31.0mm
NS2404-04-08-SS Stainless Steel 1/4" 1/2" 44.7mm 19.10mm 17.80mm 15.30mm 4.8mm 22mm 14mm 37.4mm
NS2404-05-06-SS Stainless Steel - - - - - - - - - -
NS2404-06-02-SS Stainless Steel 3/8" 1/8" 35.3mm 9.60mm 19.30mm 16.80mm 4.8mm 16mm 17mm 27.9mm
NS2404-06-04-SS Stainless Steel 3/8" 1/4" 39.8mm 14.30mm 19.30mm 16.80mm 7.1mm 16mm 17mm 32.5mm
NS2404-06-06-SS Stainless Steel 3/8" 3/8" 39.8mm 14.3mm 19.30mm 16.80mm 7.1mm 19mm 17mm 32.5mm
NS2404-06-08-SS Stainless Steel 3/8" 1/2" 41.2mm 19.10mm 19.30mm 16.80mm 7.1mm 22mm 17mm 38.9mm
NS2404-08-02-SS Stainless Steel - - - - - - - - - -
NS2404-08-04-SS Stainless Steel 1/2" 1/4" 43.4mm 14.3mm 21.80mm 22.90mm 7.1mm 22mm 22mm 33.3mm
NS2404-08-06-SS Stainless Steel 1/2" 3/8" 43.4mm 14.3mm 21.80mm 22.90mm 9.6mm 22mm 22mm 33.3mm
NS2404-08-08-SS Stainless Steel 1/2" 1/2" 49.0mm 19.1mm 21.80mm 22.90mm 10.4mm 22mm 22mm 38.9mm
NS2404-08-12-SS Stainless Steel 1/2" 3/4" 50.5mm 19.1mm 21.80mm 22.90mm 10.4mm 27mm 22mm 40.4mm
NS2404-12-12-SS Stainless Steel 3/4" 3/4" 50.5mm 19.1mm 21.80mm 24.40mm 15.80mm 27mm 28.5mm 40.4mm
NS2404-12-16-SS Stainless Steel 3/4" 1" 57.10mm 23.80mm 21.80mm 24.40mm 15.80mm 35mm 28.5mm 47.0mm
NS2404-16-16-SS Stainless Steel 1" 1" 62.20mm 23.80mm 26.40mm 31.20mm 22.30mm 35.00mm 38.00mm 50.00mm

NS2404-04-02-B Brass 1/4" 1/8" 32.8mm 9.6mm 17.8mm 15.3mm 4.8mm 14mm 14mm 25.4mm
NS2404-04-04-B Brass 1/4" 1/4" 37.8mm 14.3mm 17.8mm 15.3mm 4.8mm 14mm 14mm 30.5mm
NS2404-06-04-B Brass 3/8" 1/4" 39.8mm 14.3mm 19.3mm 16.8mm 7.1mm 16mm 17mm 32.5mm
NS2404-08-06-B Brass 1/2" 3/8" 43.4mm 14.3mm 21.80mm 22.90mm 9.6mm 22mm 22mm 33.3mm
NS2404-08-08-B Brass 1/2" 1/2" 49.0mm 19.1mm 21.8mm 22.9mm 10.4mm 22mm 22mm 38.9mm
Brennan

Brennan

Brennan Industries, founded in 1953, distinguishes itself with a commitment to quality in hydraulic and pneumatic fittings. With over 120,000 styles and sizes, Brennan serves a global market through extensive distribution networks. As a privately held company, Brennan's principals actively oversee operations, ensuring top-tier customer service and responsiveness. Their products meet or exceed J.I.C./S.A.E. and international standards, supported by ISO 9001:2015, AS9100D, and NADCAP certifications. Brennan's offerings include standard and custom solutions, backed by robust engineering support. With 13 distribution centers worldwide, Brennan delivers exceptional quality, service, and competitive pricing for all hydraulic and pneumatic fitting needs.
