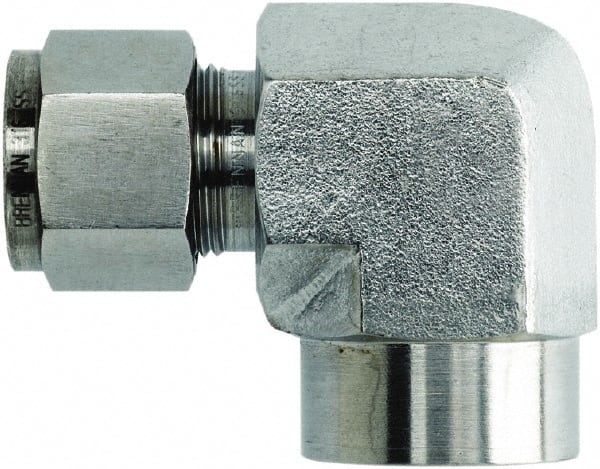

NS2502-02-02-SS by Brennan Inc. | -02 Single Ferrule Instrumentation Fitting x -02 Female NPT | 90° Elbow | Stainless Steel

NS2502-02-02-SS by Brennan Inc. | -02 Single Ferrule Instrumentation Fitting x -02 Female NPT | 90° Elbow | Stainless Steel

Save $18.83 Save $18.83
$47.07
$47.07 - $47.07
$47.07
$28.24
$28.24 - $28.24
$28.24

Brennan Inc.
Single Ferrule Tube Fittings: NS2502 - Single Ferrule Instrumentation Fitting x Female NPT 90° Elbow
Specifications for Variant SKU: NS2502-02-02-SS Brennan
Shape (Orientation): 90 Degree
Ends Configuration: 1/8in Tube Compression , 1/8in Female NPT
Material(s): Stainless Steel
Part Number Material T Tube OD P NPT Female A
mm		 B
mm		 C
mm		 D
mm		 E Min.
mm		 F A/F
mm		 G A/F
mm		 HX
mm		 HY
mm
NS2502-04-02-B Brass 1/4" 1/8" 26.9mm 10.4mm 17.8mm 15.3mm 4.8mm 14mm 14mm 19.6mm 19.0mm
NS2502-04-04-B Brass - - - - - - - - - - -
NS2502-08-06-B Brass 1/2" 3/8" 36.0mm 15.0mm 21.8mm 22.9mm 10.4mm 22mm 22mm 25.9mm 22.4mm

NS2502-02-02-SS Stainless Steel 1/8" 1/8" 24.6mm 10.4mm 15.3mm 12.7mm 2.4mm 14mm 11mm 18.0mm 19.0mm
NS2502-04-02-SS Stainless Steel 1/4" 1/8" 26.9mm 10.4mm 17.8mm 15.3mm 4.8mm 14mm 14mm 19.6mm 19.0mm
NS2502-04-04-SS Stainless Steel 1/4" 1/4" 29.7mm 15.0mm 17.8mm 15.3mm 4.8mm 19mm 14mm 22.4mm 22.4mm
NS2502-04-08-SS Stainless Steel 1/4" 1/2" 34.6mm 19.8mm 17.8mm 15.3mm 4.8mm 27mm 14mm 27.2mm 28.5mm
NS2502-06-04-SS Stainless Steel 3/8" 1/4" 31.2mm 15.0mm 19.3mm 16.8mm 7.1mm 19mm 17mm 23.9mm 22.4mm
NS2502-06-06-SS Stainless Steel 3/8" 3/8" 33.3mm 15.0mm 19.3mm 16.8mm 7.1mm 22mm 17mm 25.9mm 22.4mm
NS2502-06-08-SS Stainless Steel 3/8" 1/2" 36.0mm 19.8mm 19.3mm 16.8mm 7.1mm 27mm 17mm 28.7mm 28.5mm
NS2502-08-06-SS Stainless Steel 1/2" 3/8" 36.0mm 15.0mm 21.8mm 22.9mm 10.4mm 22mm 22mm 25.9mm 22.4mm
NS2502-08-08-SS Stainless Steel 1/2" 1/2" 38.9mm 19.8mm 21.8mm 22.9mm 10.4mm 27mm 22mm 28.7mm 28.5mm
Brennan

Brennan

Brennan Industries, founded in 1953, distinguishes itself with a commitment to quality in hydraulic and pneumatic fittings. With over 120,000 styles and sizes, Brennan serves a global market through extensive distribution networks. As a privately held company, Brennan's principals actively oversee operations, ensuring top-tier customer service and responsiveness. Their products meet or exceed J.I.C./S.A.E. and international standards, supported by ISO 9001:2015, AS9100D, and NADCAP certifications. Brennan's offerings include standard and custom solutions, backed by robust engineering support. With 13 distribution centers worldwide, Brennan delivers exceptional quality, service, and competitive pricing for all hydraulic and pneumatic fitting needs.
