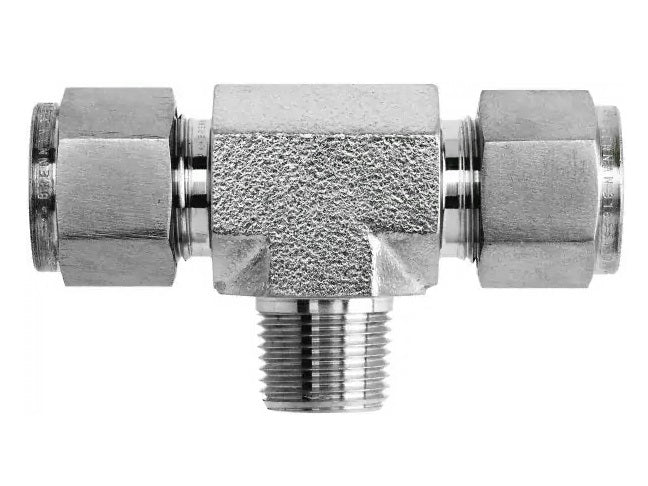

NS2601-06-06-06-SS by Brennan Inc. | -06 Single Ferrule Instrumentation Fitting x -06 Instrumentation Fitting x -06 Male NPT | Tee | Stainless Steel

NS2601-06-06-06-SS by Brennan Inc. | -06 Single Ferrule Instrumentation Fitting x -06 Instrumentation Fitting x -06 Male NPT | Tee | Stainless Steel

$53.35 - $53.35
$53.35
$58.68
$58.68 - $58.68
$58.68

Brennan Inc.
Single Ferrule Tube Fittings: NS2601 - Single Ferrule Instrumentation Fitting x Instrumentation Fitting x Male NPT Tee
Specifications for Variant SKU: NS2601-06-06-06-SS Brennan
Shape (Orientation): Tee
Ends Configuration: 3/8in Tube Compression , 3/8in Tube Compression , 3/8in Male NPT, Some Ends Match
Material(s): Stainless Steel
Part Number Material T Tube OD P NPT Female A
mm		 AX
mm		 B
mm		 C
mm		 D
mm		 E Min.
mm		 F A/F
mm		 G A/F
mm		 H A/F
mm		 HX
mm		 HY
mm
NS2601-02-02-02-SS Stainless Steel 1/8" 1/8" 47.2mm 23.6mm 9.6mm 15.3mm 12.7mm 2.4mm 11mm 11mm 34.0mm 17.0mm 17.8mm
NS2601-04-04-02-SS Stainless Steel 1/4" 1/8" 53.8mm 26.9mm 9.6mm 17.8mm 15.3mm 4.8mm 14mm 14mm 39.2mm 19.6mm 18.8mm
NS2601-04-04-04-SS Stainless Steel 1/4" 1/4" 53.8mm 26.9mm 14.3mm 17.8mm 15.3mm 4.8mm 14mm 14mm 39.2mm 19.6mm 23.4mm
NS2601-06-06-04-SS Stainless Steel 3/8" 1/4" 61.0mm 30.5mm 14.3mm 19.3mm 16.8mm 7.1mm 17mm 17mm 46.2mm 23.1mm 25.4mm
NS2601-06-06-06-SS Stainless Steel 3/8" 3/8" 62.4mm 31.2mm 14.3mm 19.3mm 16.8mm 7.1mm 17mm 17mm 47.8mm 23.9mm 26.2mm
NS2601-08-08-08-SS Stainless Steel 1/2" 1/2" 72.0mm 36.0mm 19.1mm 21.8mm 22.9mm 10.4mm 22mm 22mm 51.8mm 25.9mm 33.0mm
Brennan

Brennan

Brennan Industries, founded in 1953, distinguishes itself with a commitment to quality in hydraulic and pneumatic fittings. With over 120,000 styles and sizes, Brennan serves a global market through extensive distribution networks. As a privately held company, Brennan's principals actively oversee operations, ensuring top-tier customer service and responsiveness. Their products meet or exceed J.I.C./S.A.E. and international standards, supported by ISO 9001:2015, AS9100D, and NADCAP certifications. Brennan's offerings include standard and custom solutions, backed by robust engineering support. With 13 distribution centers worldwide, Brennan delivers exceptional quality, service, and competitive pricing for all hydraulic and pneumatic fitting needs.
