NZMQC5P-040 by Dixon Valve | Multi-Pack | High Pressure Spray & Soap Nozzles | 1/4" Quick Connect Nozzle | Includes (5) 4.0 Size Nozzles

NZMQC5P-040 by Dixon Valve | Multi-Pack | High Pressure Spray & Soap Nozzles | 1/4" Quick Connect Nozzle | Includes (5) 4.0 Size Nozzles

Save $21.39 Save $21.39
$53.47
$53.47 - $53.47
$53.47
$32.08
$32.08 - $32.08
$32.08

Dixon Valve
Multi-Pack | High Pressure Spray & Soap Nozzles

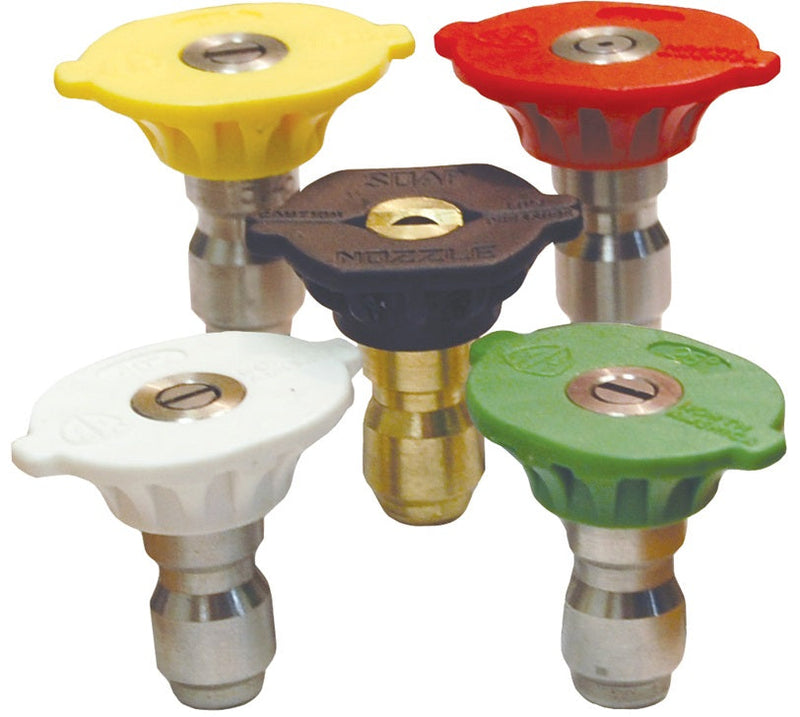

1/4" Quick Connect Mozzle Multi-Packs Include: 0° red, 15° yellow, 25° green, 40° white and 50° black soap nozzles.
Specifications for Variant SKU: NZMQC5P-040 Dixon
Use:
  • Use with 1/4" straight through quick-connect couplers.
Part Number Nozzle
Size		 GPM @ PSI
800 PSI 1000 PSI 1500 PSI 2000 PSI 2500 PSI 3000 PSI 3500 PSI 4000 PSI 5000 PSI
NZMQC5P-030 3.0 1.34 GPM 1.50 GPM 1.84 GPM 2.12 GPM 2.37 GPM 2.60 GPM 2.81 GPM 3.00 GPM 3.35 GPM
NZMQC5P-035 3.5 1.57 GPM 1.75 GPM 2.14 GPM 2.47 GPM 2.77 GPM 3.03 GPM 3.27 GPM 3.50 GPM 3.91 GPM
NZMQC5P-040 4.0 1.79 GPM 2.00 GPM 2.45 GPM 2.83 GPM 3.16 GPM 3.46 GPM 3.74 GPM 4.00 GPM 4.47 GPM
NZMQC5P-045 4.5 2.01 GPM 2.25 GPM 2.76 GPM 3.18 GPM 3.56 GPM 3.90 GPM 4.21 GPM 4.50 GPM 5.03 GPM
NZMQC5P-050 5.0 2.24 GPM 2.50 GPM 3.06 GPM 3.54 GPM 3.95 GPM 4.33 GPM 4.68 GPM 5.00 GPM 5.59 GPM
NZMQC5P-055 5.5 2.46 GPM 2.75 GPM 3.37 GPM 3.89 GPM 4.35 GPM 4.76 GPM 5.14 GPM 5.50 GPM 6.15 GPM
NZMQC5P-065 6.5 2.91 GPM 3.25 GPM 3.98 GPM 4.60 GPM 5.14 GPM 5.63 GPM 6.08 GPM 6.50 GPM 7.27 GPM
NZMQC5P-080 8.0 3.58 GPM 4.00 GPM 4.90 GPM 5.66 GPM 6.32 GPM 6.93 GPM 7.48 GPM 8.00 GPM 8.94 GPM
