OFAQ-300X660 OROFLEX® AQUA by Kuriyama | OFAQ Series | Potable Water Discharge Layflat Hose | Polyurethane | 3" Size | 3.059" Hose ID | Blue | 660ft Length

OFAQ-300X660 OROFLEX® AQUA by Kuriyama | OFAQ Series | Potable Water Discharge Layflat Hose | Polyurethane | 3" Size | 3.059" Hose ID | Blue | 660ft Length

Save $994.94 Save $994.94
$4,717.34
$4,717.34 - $4,717.34
$4,717.34
$3,722.40
$3,722.40 - $3,722.40
$3,722.40

Kuriyama

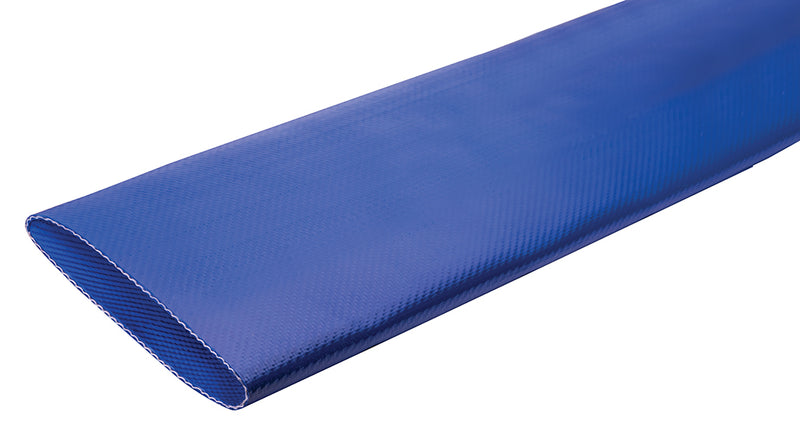

OROFLEX® AQUA | OFAQ Series | Potable Water Discharge Layflat Hose

Designed for safe, sanitary use in potable water systems.

Ideal for drinking water transport, emergency supply, food and beverage transfer, marine potable water service, and water or sewer treatment applications.

Resistant to snaking, kinking, stretching and twisting.

Made in Europe.

Package Quantity: 660 Foot

Specifications for Variant SKU: OFAQ-300X660 Kuriyama | 660 |
Brand: OROFLEX AQUA
Series: OFAQ Series
Hose Color(s): Blue
Internal Diameter: 3.059in
Tubing Construction: TPU
Cover Construction: TPU
Applicable Specs & Approvals: NSF 61

SPECIFICATIONS

Applications: Drinking water transport
Emergency water supply
Liquid and powder food transfer
Potable water to transfer ships/boats
Sewer and water treatment
Construction: Blue NSF-61 polyurethane (TPU) hose using an extruded through-the-weave process with circular woven high tenacity polyester reinforcement.
Service Temperature Range: -58°F (-50°C) to +122°F (+50°C);
Intermittent service to +175°F (+79°C)
Other Features:
  • Premium Polyurethane (TPU) Material - Exhibits exceptional resistance to abrasion, allowing for use in applications where severe abrasion is a factor and providing longer service life versus rubber or PVC hoses. Also, exhibits exceptional resistance to oils and petroleum based products.
  • NSF-61 Certified - Hose is certified under NSF/ANSI 61: Drinking Water System Components.
  • Unique Woven Construction - Specially designed weave pattern provides resistance to snaking, kinking, stretching and twisting.
  • Longer Lengths - Available in 200 foot lengths and also longer 660 foot lengths to reduce possible leaking points.
  • Smooth TPU Tube - Provides low friction loss.
  • Compact Design - Flat hose design rolls up into tight coils for easy storage and transport, takes up less space than other hoses.
  • Made in Europe.
Part Number
200ft		 Part Number
660ft		 Size Hose ID Wall
Thickness		 Working
Pressure
(PSI)		 Burst
Pressure		 Tensile
Strength
(in) (mm) (in) (mm) (in) at 68°F at 68°F (lbs)
OFAQ-100X200 OFAQ-100X660 1" 25.4mm 1.004" 25.5mm 0.071" 240 PSI 725 PSI 0.11 lbs
OFAQ-150X200 OFAQ-150X660 1-1/2" 38.1mm 1.559" 39.6mm 0.079" 300 PSI 900 PSI 0.24 lbs
OFAQ-200X200 OFAQ-200X660 2" 50.8mm 2.059" 52.3mm 0.075" 240 PSI 600 PSI 0.26 lbs
OFAQ-250X200 OFAQ-250X660 2-1/2" 63.5mm 2.618" 66.5mm 0.090" 240 PSI 600 PSI 0.35 lbs
OFAQ-300X200 OFAQ-300X660 3" 76.2mm 3.059" 77.7mm 0.093" 240 PSI 600 PSI 0.43 lbs
OFAQ-400X200 OFAQ-400X660 4" 101.6mm 4.059" 103.1mm 0.106" 240 PSI 600 PSI 0.67 lbs
OFAQ-600X200 OFAQ-600X660 6" 152.4mm 6.020" 152.9mm 0.138" 240 PSI 600 PSI 1.18 lbs
